February 2013
4-61
ColorQube® 9303 Family
REP 10.2
Repairs/Adjustments

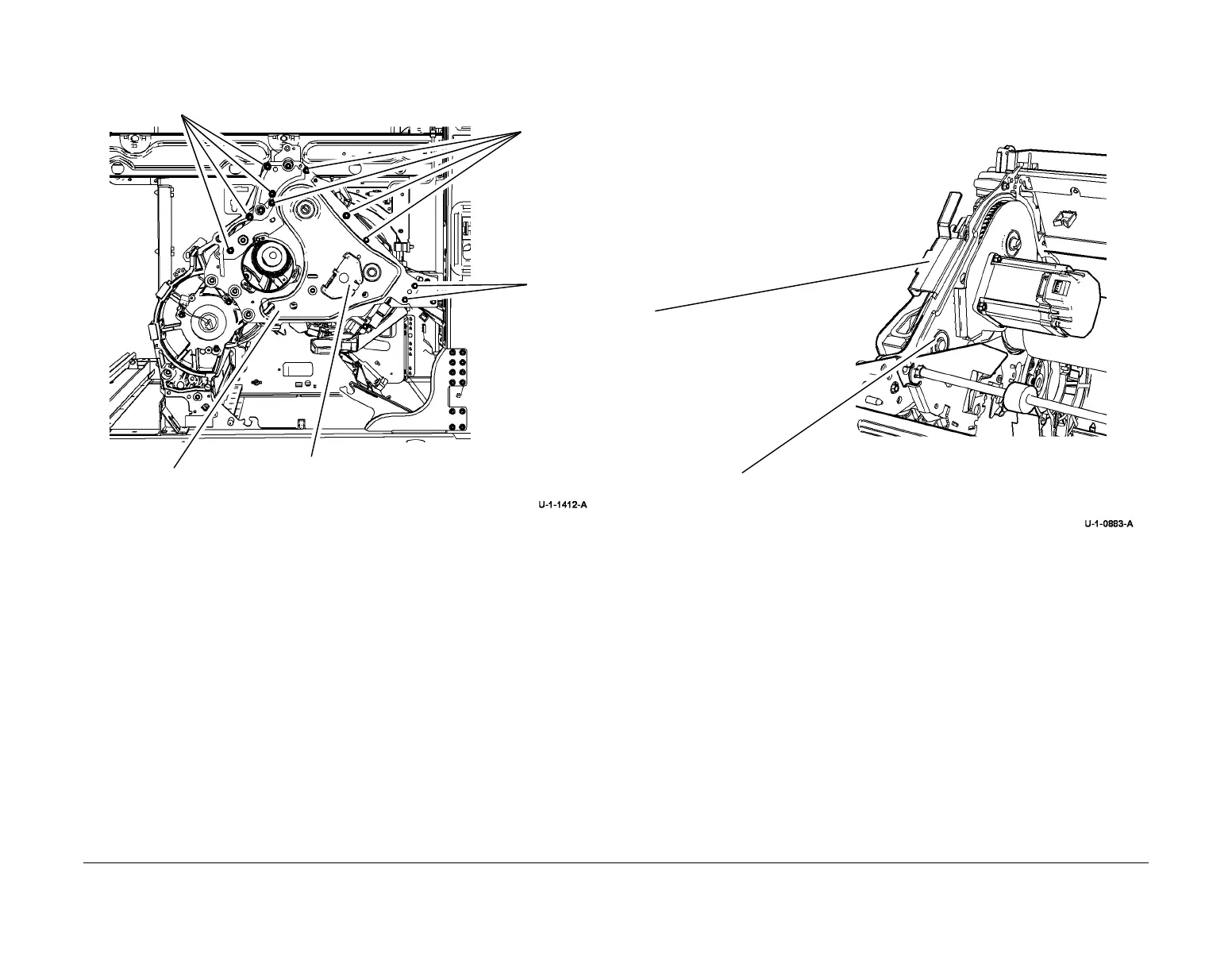

4. Remove the front plate, Figure 2.
Figure 2 Front plate removal
5. Prepare to remove transfix linkage and gear, Figure 3.
Figure 3 Preparation
NOTE: The transfix linkage and gear is shown in Figure 5.
5
Remove the front plate.
4
Disconnect the front transfix flexure
encoder harness and remove the cover.
3
Remove 2
screws.
1
Remove 4 screws
2
Remove 4
screws
1
Support the weight of the
transfix linkage and gear.
Refer to note.
2
Push the bearing out.
