Xerox ColorQube 9301 Service Manual

February 2013
4-158
ColorQube® 9303 Family
REP 12.27-171
Repairs/Adjustments

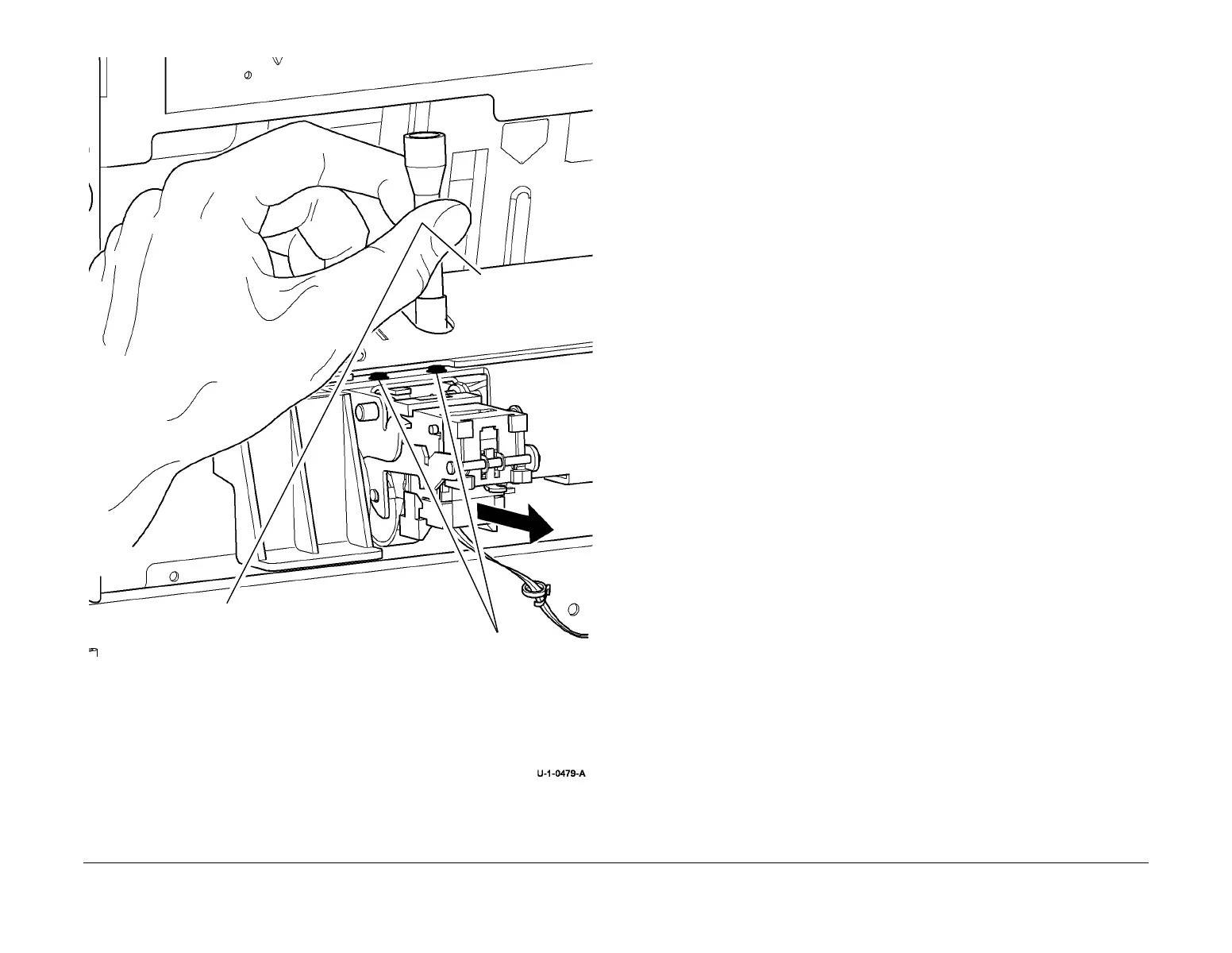

Figure 1 Staple head removal
Replacement
1. Reverse the removal procedure to replace the BM staple heads.
2. Perform ADJ 12.3-171, Stapler Anvil Alignment.
1
Remove 2 screws
using a 5.5 mm
socket and
ratchet driver.
2
Loosen 1 screw
using a 5.5 mm
socket and
ratchet driver.
3
Using a 5.5 mm socket
and short extension fully
loosen the screw until the
staple head is released.
Leave the socket and
extension in position on
the screw.
4
Disconnect the
stapler harness
and remove the
stapler.
