Xerox ColorQube 9301

February 2013
4-172
ColorQube® 9303 Family
REP 12.36-171
Repairs/Adjustments

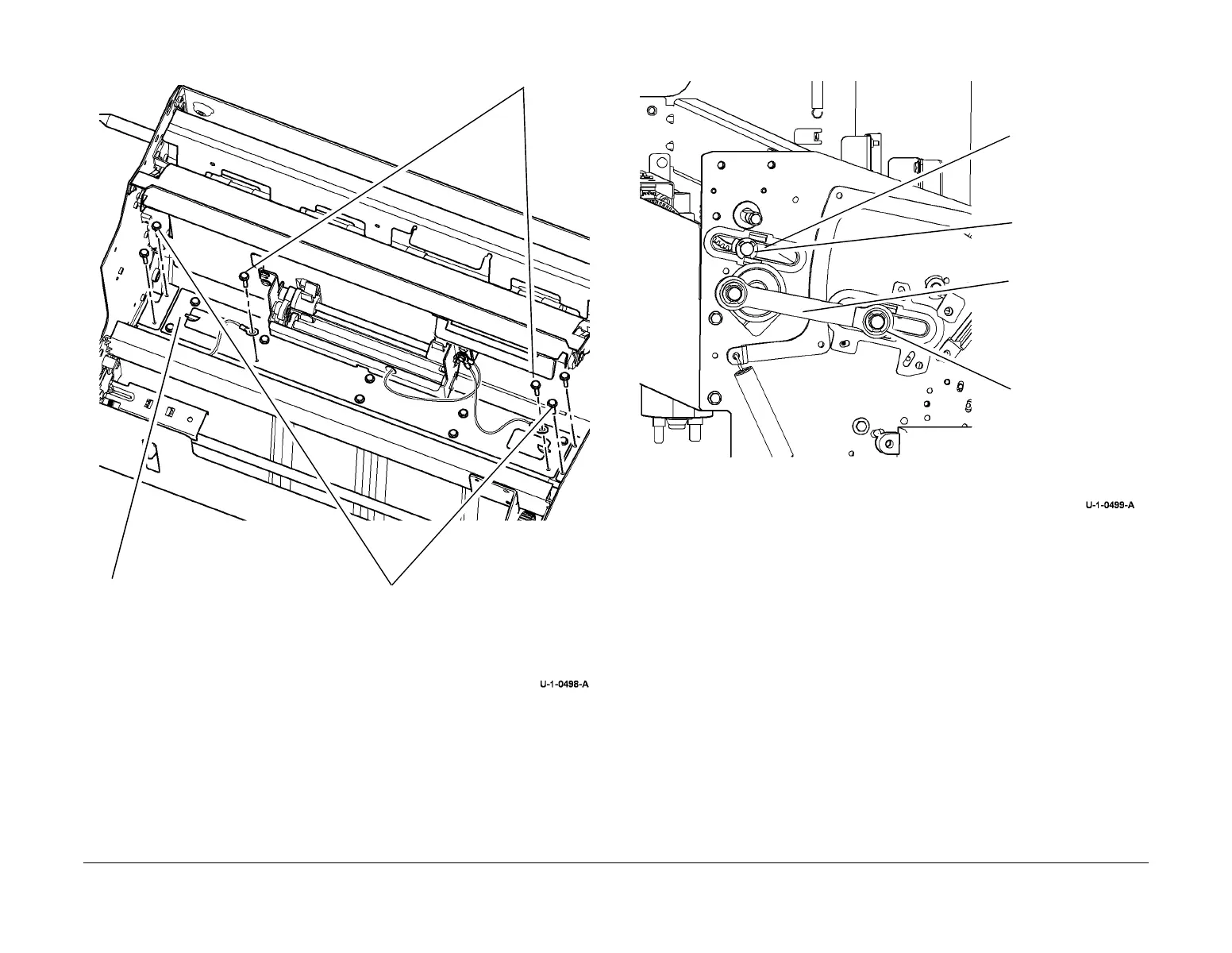

5. Figure 1, remove the crease blade assembly.
Figure 1 Crease blade assembly removal
6. Figure 2, remove the front blade support.
Figure 2 Front support removal
2
Remove 4 screws.
3
Manoeuvre the blade assembly
out from under the front and rear
supports.
1
Remove 2
screws.
1
Remove E-clip.
2
Release the front
connecting rod
and bearing.
3
Remove E-clip.
4
Remove front
blade support.
