February 2013
4-220
ColorQube® 9303 Family
REP 12.74-171
Repairs/Adjustments
3. Remove the roller assembly through the front door, Figure 1.

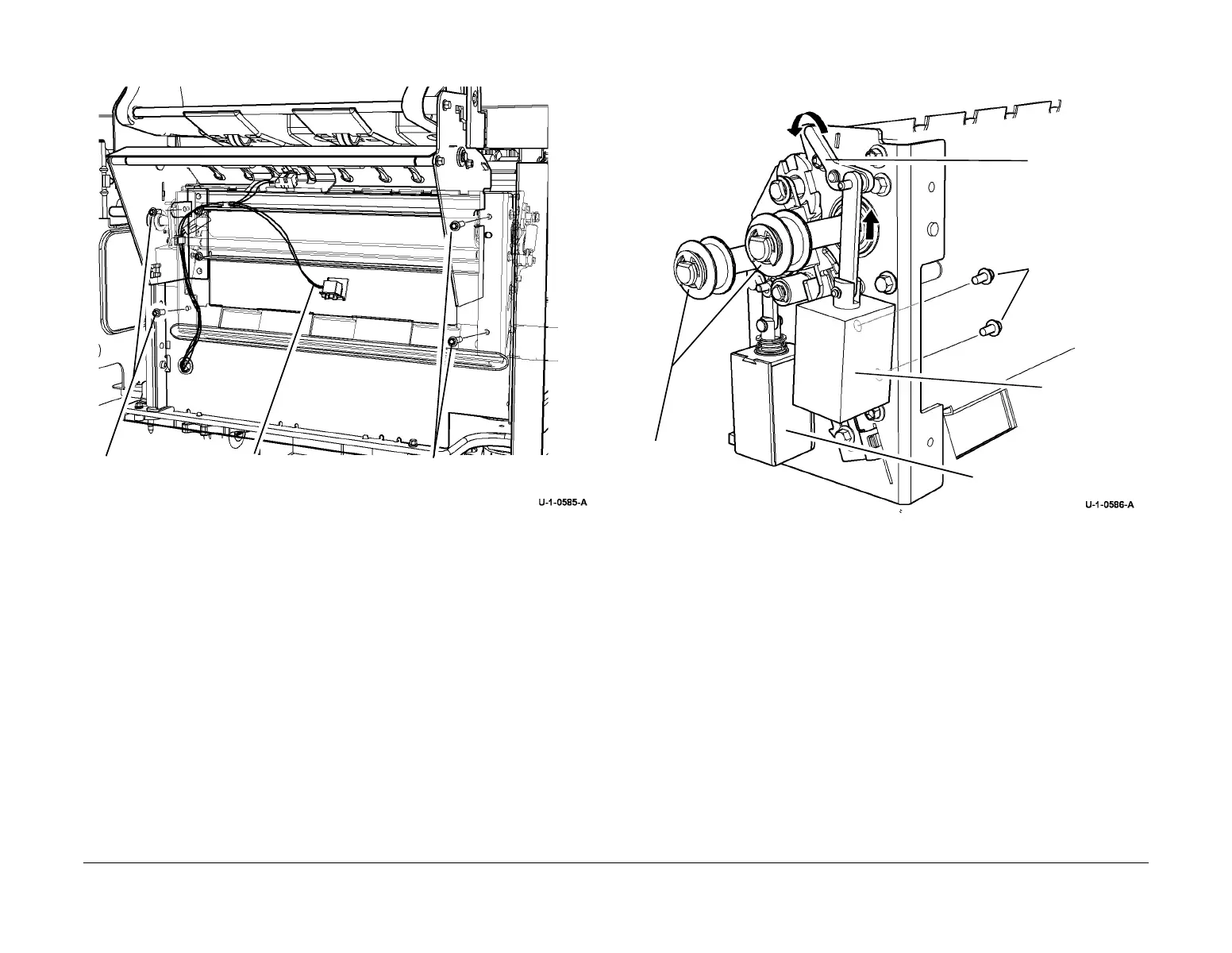

Figure 1 Tri Folder Roller Assembly
4. Remove the diverter gate solenoid and crease roll pulleys as required, Figure 2.
Figure 2 Positioning The Diverter Gate Lever
Replacement
1. Reverse the removal procedures to reinstall the pulleys, diverter gate solenoid and Tri
Folder roller assembly.
2. Before replacing the roller assembly set the diverter operating lever to the forward (sole-
noid armature extended) position to engage with the right side of the diverter shaft lever,
Figure 2.
3. Check that the diverter gate operates correctly before tensioning the crease roll drive belt.
1
Remove 2 rear screws.
3
Remove 2 front screws.
2
Disconnect the sensor harness.
Crease roll
pulleys
2
Remove
Diverter gate
solenoid.
Diverter gate
lever.
1
Remove 2
screws.
Assist gate solenoid
To Next Page
