Xerox ColorQube 9301

February 2013
4-221
ColorQube® 9303 Family
REP 12.75-171
Repairs/Adjustments
REP 12.75-171 Bin 1 Limit Switches
Parts List on PL 12.105.
Removal
WARNING
Take care during this procedure. Sharp edges may be present that can cause injury.
WARNING
Switch off the electricity to the machine. Refer to GP 14. Disconnect the power cord
from the customer supply while performing tasks that do not need electricity. Electricity
can cause death or injury. Moving parts can cause injury.
1. Remove the HVF rear cover, REP 12.1-171.
2. Disconnect the PJs and remove the upper or lower limit switch and bracket as required,
Figure 1.

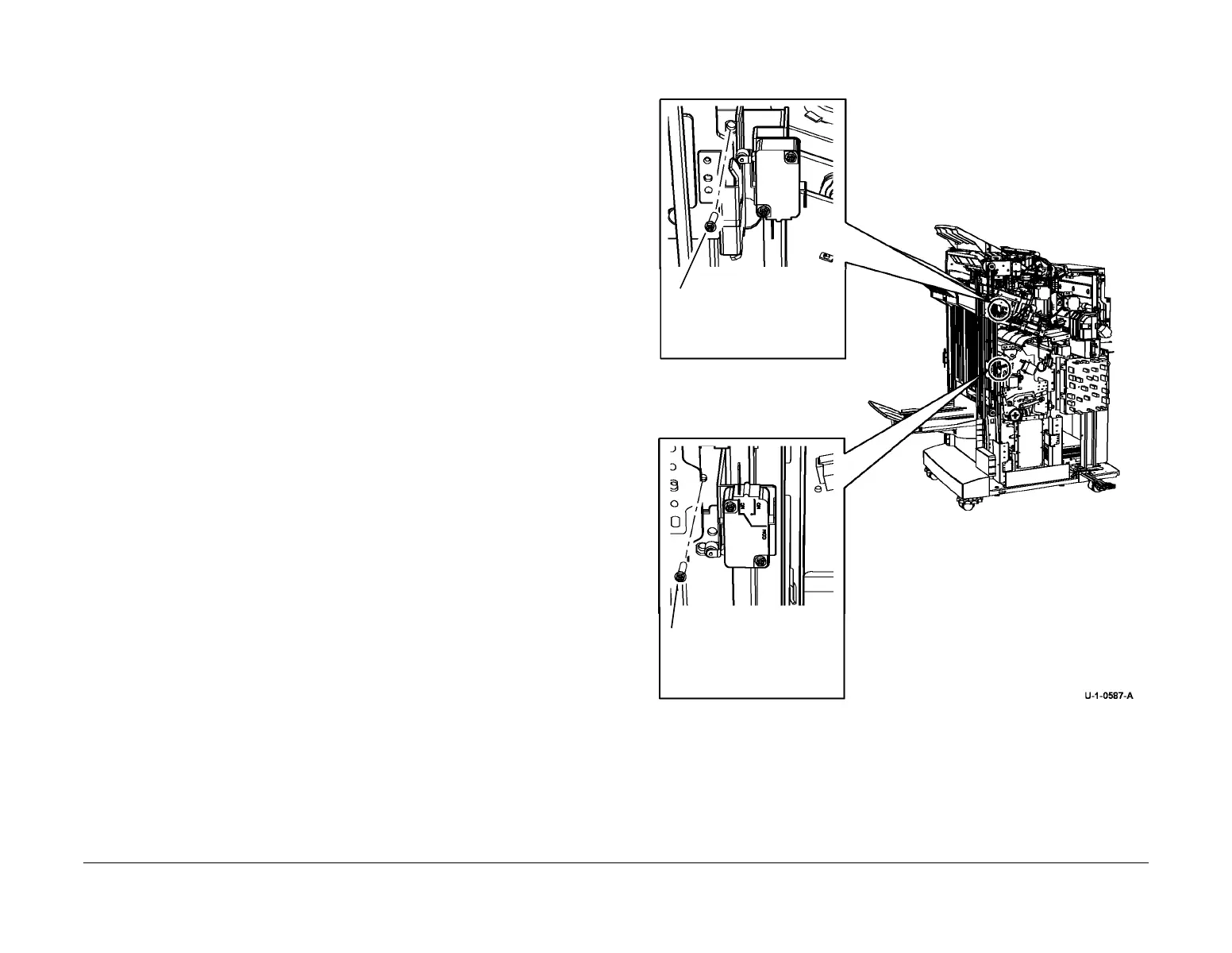

Figure 1 Bin 1 Limit Switches
Replacement
Reverse the removal procedures to replace the Bin 1 upper and lower limit switches.
2
Remove the screw and then
remove the lower limit switch.
1
Remove the screw and then
remove the upper limit switch.
