ColorQube® 9303 Family
REP 12.76-171, REP 12.77-171
Repairs/Adjustments
REP 12.76-171 Bin 1 Upper Level Sensor
Parts List on PL 12.110.
Removal
WARNING
Take care during this procedure. Sharp edges may be present that can cause injury.
WARNING
Switch off the electricity to the machine. Refer to GP 14. Disconnect the power cord
from the customer supply while performing tasks that do not need electricity. Electricity
can cause death or injury. Moving parts can cause injury.
1. Remove the HVF front and rear covers, REP 12.1-171.
2. Disconnect the PJs and remove the receiver or transmitter as necessary, Figure 1.

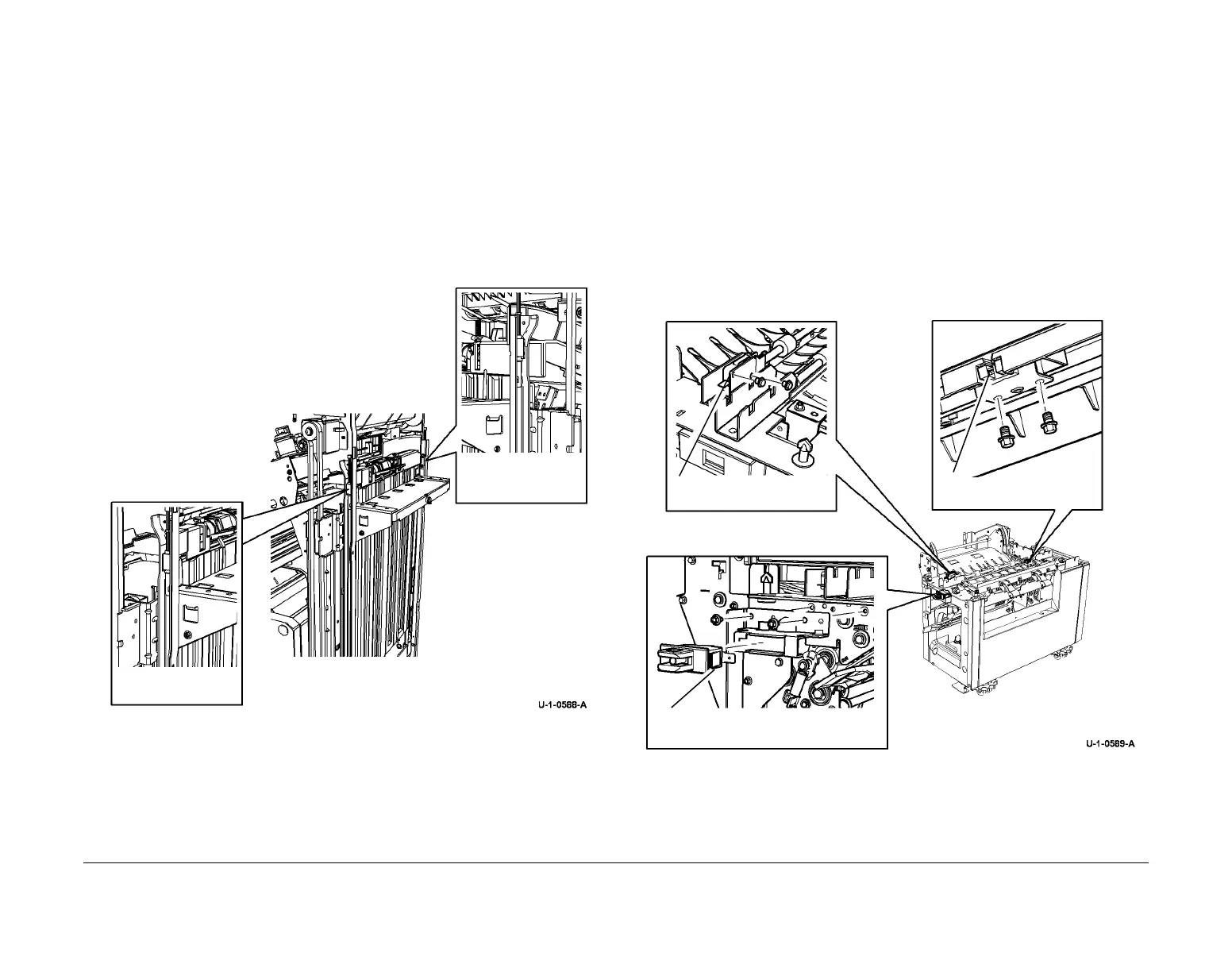

Figure 1 Bin 1 Upper level sensor
Replacement
Reverse the removal procedures to replace the transmitter or receiver of the bin 1 upper level
sensor.
REP 12.77-171 Tri Folder Door Interlock Switches and
Sensor
Parts List on PL 12.215.
Removal
WARNING
Take care during this procedure. Sharp edges may be present that can cause injury.
WARNING
Switch off the electricity to the machine. Refer to GP 14. Disconnect the power cord
from the customer supply while performing tasks that do not need electricity. Electricity
can cause death or injury. Moving parts can cause injury.
1. Remove the tri folder front and top covers, REP 12.67-171.
2. Remove the front door and top cover interlock switches and the top cover sensor, Figure
1.
Figure 1 TF Interlock Switches and Cover Sensor
Replacement
Reverse the removal procedures to replace the front door and top cover interlock switches and
the top access cover sensor.
Rear receiver
Front transmitter
Top cover interlock switch
Top cover sensor
Front door interlock switch
