Xerox ColorQube 9301

February 2013
4-223
ColorQube® 9303 Family
REP 12.78-171, REP 12.79-171
Repairs/Adjustments
REP 12.78-171 Tri Folder Entry and Assist Gate Sensors
Parts List on PL 12.215.
Removal
WARNING
Take care during this procedure. Sharp edges may be present that can cause injury.
WARNING
Switch off the electricity to the machine. Refer to GP 14. Disconnect the power cord
from the customer supply while performing tasks that do not need electricity. Electricity
can cause death or injury. Moving parts can cause injury.
1. Undock the tri folder unit from the HVF, REP 12.73-171.
2. Disconnect the PJs and remove the entry and assist gate sensors, Figure 1.

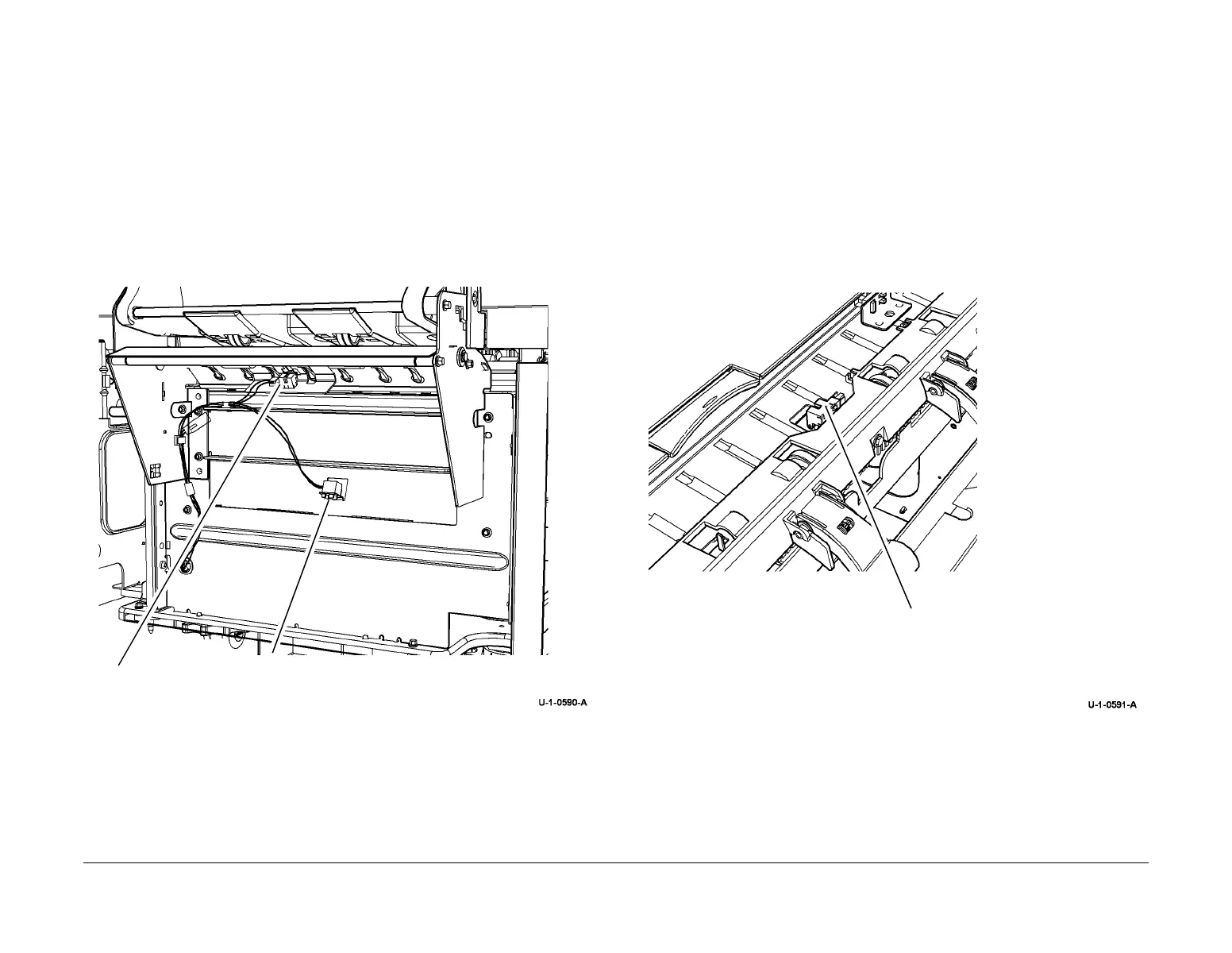

Figure 1 TF Entry and Assist Gate Sensors
Replacement
Reverse the removal procedures to replace the entry and assist gate sensors.
REP 12.79-171 Tri Folder Exit Sensor
Parts List on PL 12.215.
Removal
WARNING
Take care during this procedure. Sharp edges may be present that can cause injury.
WARNING
Switch off the electricity to the machine. Refer to GP 14. Disconnect the power cord
from the customer supply while performing tasks that do not need electricity. Electricity
can cause death or injury. Moving parts can cause injury.
1. Remove the tri folder top cover, REP 12.67-171.
2. Remove the exit sensor, Figure 1.
Figure 1 Tri Folder Exit Sensor
Replacement
Reverse the removal procedures to replace the exit sensor.
LEFT SIDE VIEW
Assist gate sensor
Entry sensor
1
Disconnect the harness and
remove the exit sensor.
