ColorQube® 9303 Family
REP 12.81-171
Repairs/Adjustments
REP 12.81-171 Tri Folder Main and Bin 2 Tray Harnesses
Parts List on PL 12.205.
Removal
WARNING
Take care during this procedure. Sharp edges may be present that can cause injury.
WARNING
Switch off the electricity to the machine. Refer to GP 14. Disconnect the power cord
from the customer supply while performing tasks that do not need electricity. Electricity
can cause death or injury. Moving parts can cause injury.
1. Remove the tri folder rear cover, REP 12.67-171. If removing the bookletmaker PWB to
tri-folder PWB harness, remove the HVF rear cover, REP 12.1-171.
2. Disconnect the PJs then remove the bookletmaker PWB to tri-folder PWB harness, Fig-
ure 1.
3. Remove the bin 2 tray harness, Figure 1.

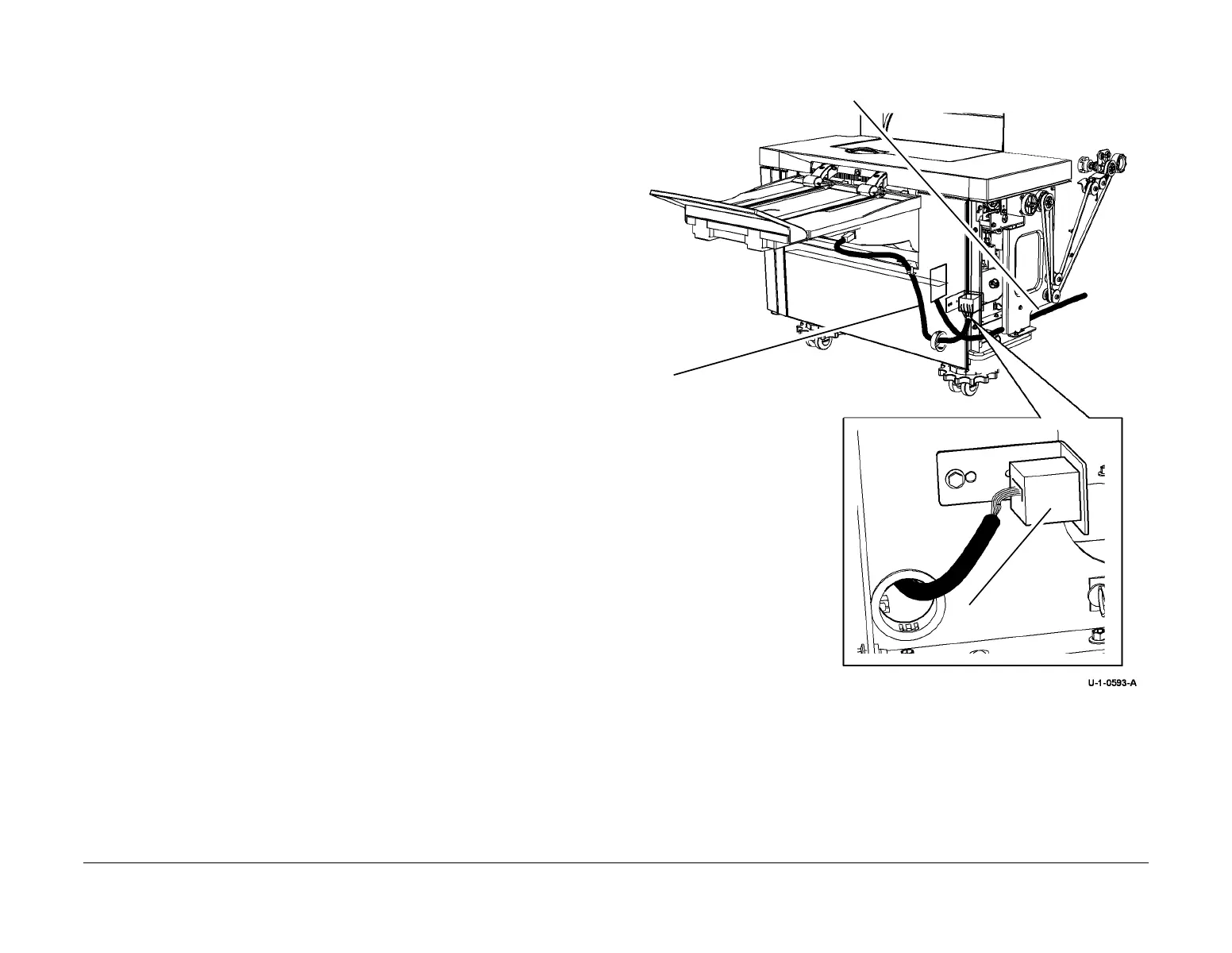

Figure 1 Tri folder and Bin 2 harnesses
Replacement
Reverse the removal procedures to replace the bookletmaker PWB to tri-folder PWB and bin 2
tray harnesses.
Bin 2 tray harness
Bin 2 tray harness,
PJ660
Bookletmaker PWB to tri-folder PWB harness.
