ColorQube® 9303 Family
REP 12.82-171
Repairs/Adjustments
REP 12.82-171 Inserter Undocking
Parts List on PL 12.300.
Removal
WARNING
Take care during this procedure. Sharp edges may be present that can cause injury.
WARNING
Switch off the electricity to the machine. Refer to GP 14. Disconnect the power cord
from the customer supply while performing tasks that do not need electricity. Electricity
can cause death or injury. Moving parts can cause injury.
CAUTION
Place the Inserter on a suitable surface. Do not damage the Inserter locating pins.
CAUTION
Do not show the customer how to undock or dock the Inserter.
1. Open the HVF front door.
2. Undock the inserter, Figure 1.

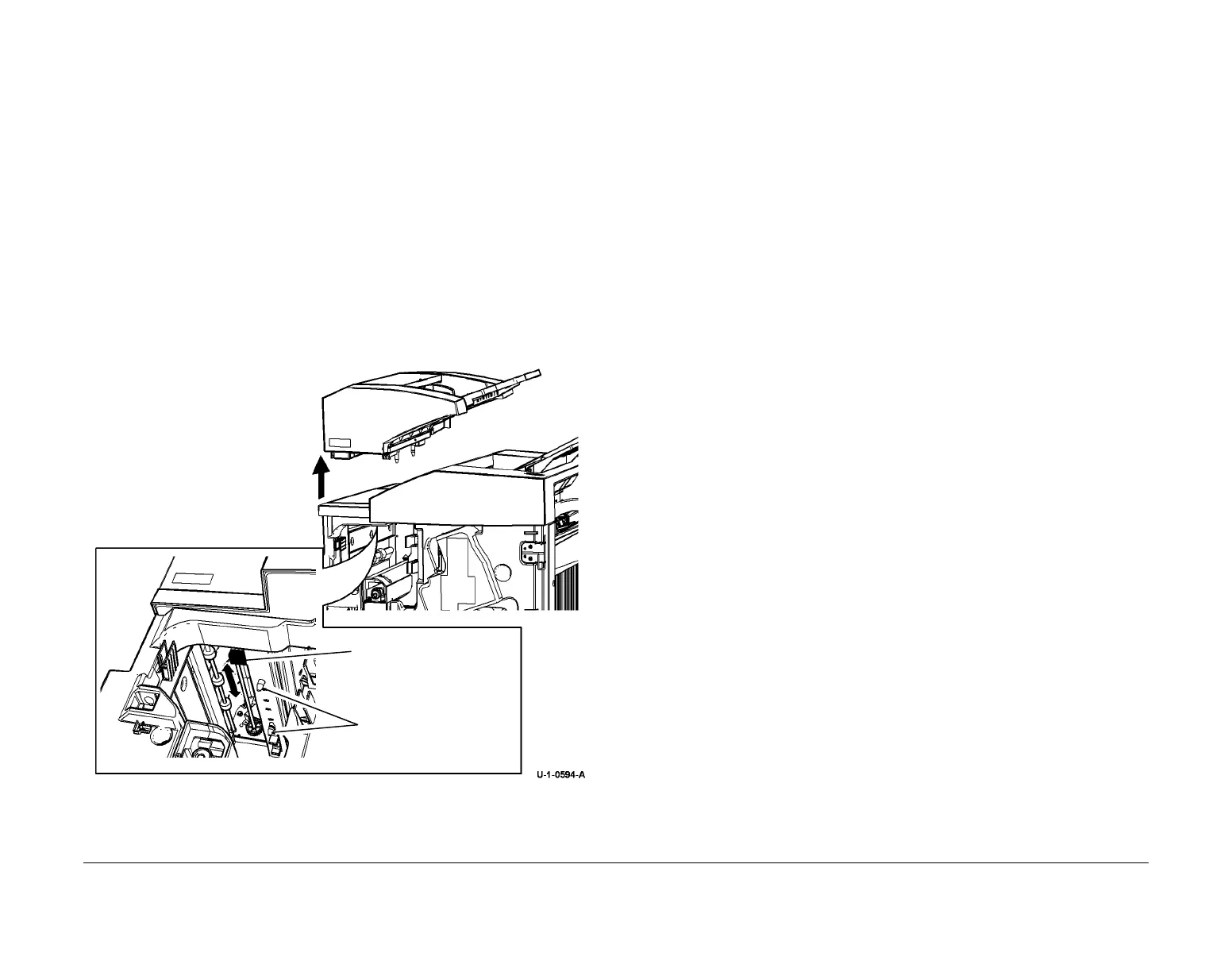

Figure 1 Tray 6 Inserter Undocking
Replacement
1. Reverse the undocking procedure to dock the Inserter unit to the HVF.
2. Lock the Inserter onto the HVF by sliding the latch handle towards the front, Figure 1.
1
Move the white latch handle
to the rear.
Locating Pins
2
Lift the inserter vertically
from the HVF and put it on a
suitable surface.
