Xerox ColorQube 9301

February 2013
4-227
ColorQube® 9303 Family
REP 12.83-171, REP 12.84-171
Repairs/Adjustments
REP 12.83-171 Inserter Front and Rear Covers
Parts List on PL 12.300.
Removal
WARNING
Take care during this procedure. Sharp edges may be present that can cause injury.
WARNING
Switch off the electricity to the machine. Refer to GP 14. Disconnect the power cord
from the customer supply while performing tasks that do not need electricity. Electricity
can cause death or injury. Moving parts can cause injury.
1. Undock the Inserter and put it on a suitable surface, REP 12.82-171.
2. Remove the front and rear covers, Figure 1.

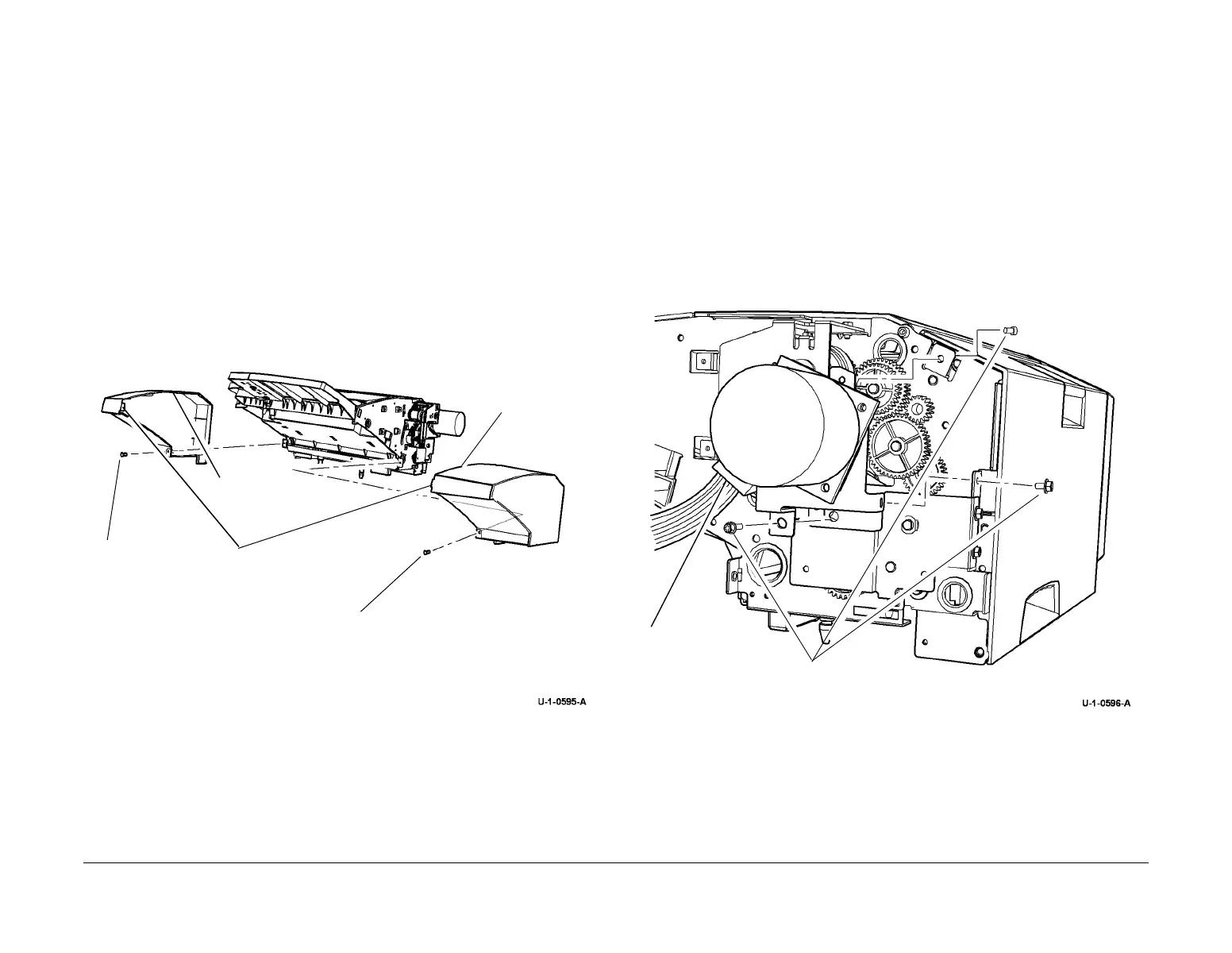

Figure 1 Inserter Front and Rear Covers
Replacement
Reverse the removal procedures to replace the Inserter front and rear covers.
REP 12.84-171 Inserter Motor
Parts List on PL 12.315.
Removal
WARNING
Take care during this procedure. Sharp edges may be present that can cause injury.
WARNING
Switch off the electricity to the machine. Refer to GP 14. Disconnect the power cord
from the customer supply while performing tasks that do not need electricity. Electricity
can cause death or injury. Moving parts can cause injury.
1. Remove the Inserter rear cover, and open the top left door, REP 12.83-171.
2. Remove the inserter motor and bracket, Figure 1.
Figure 1 Inserter Motor
Replacement
1. Reverse the removal procedures to replace the Inserter motor.
2. Make sure that the correct screws are used to replace the inserter motor.
Upper tab
Side tab
2
Release the upper tab, then the side
tab. Remove the front cover.
1
Remove 1 screw.
3
Remove 1 screw.
4
Release the upper
tab and side tab,
then remove the rear
cover.
Upper tab
1
Disconnect motor
harness.
3
Remove motor and
bracket.
2
Remove 3 screws.
