February 2013
4-228
ColorQube® 9303 Family
REP 12.85-171
Repairs/Adjustments
REP 12.85-171 Inserter PWB
Parts List on PL 12.310.
Removal
WARNING
Take care during this procedure. Sharp edges may be present that can cause injury.

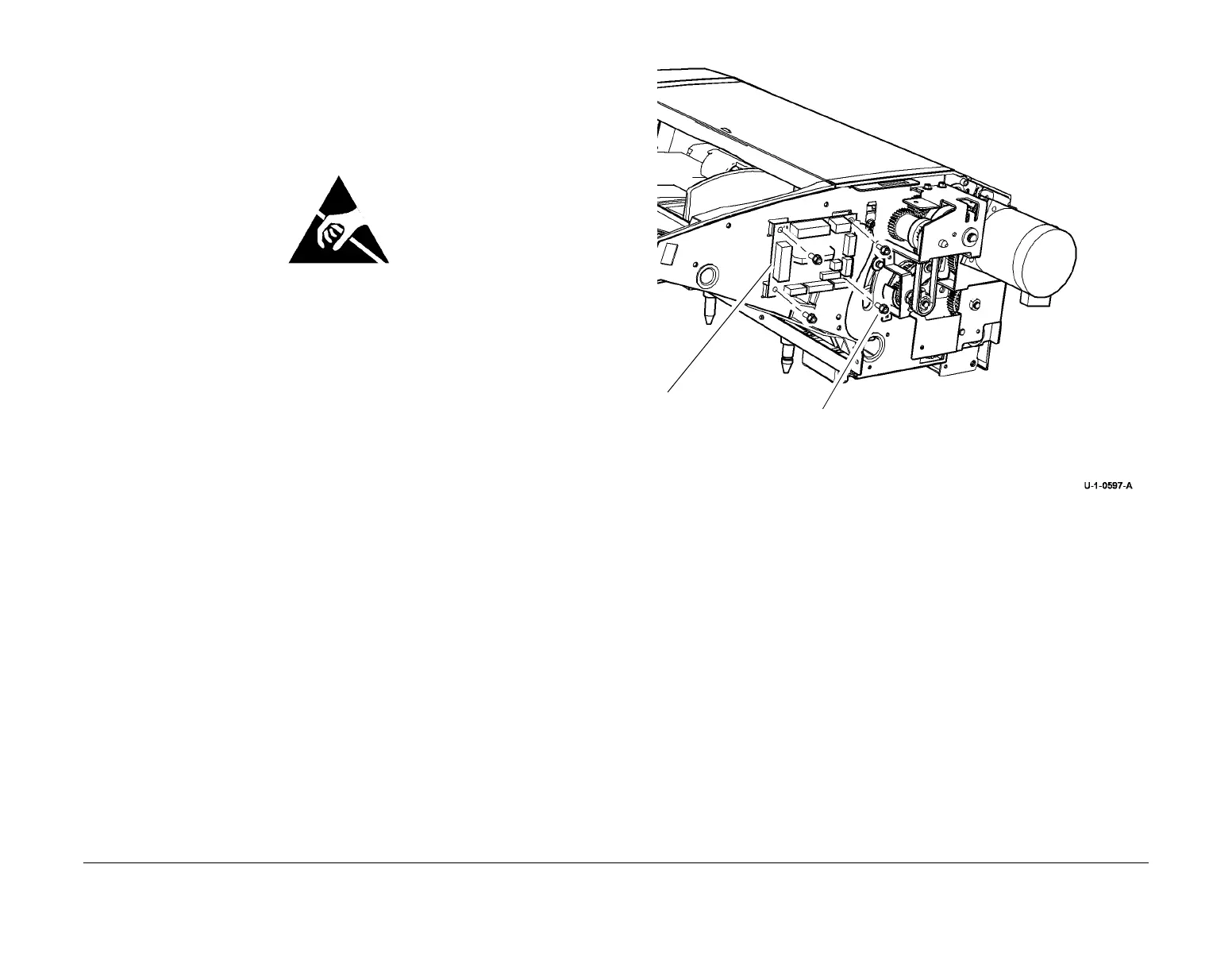

Figure 1 ESD Symbol
CAUTION
Ensure that ESD procedures are observed during the removal and installation of the inserter
PWB.
WARNING
Switch off the electricity to the machine. Refer to GP 14. Disconnect the power cord
from the customer supply while performing tasks that do not need electricity. Electricity
can cause death or injury. Moving parts can cause injury.
1. Remove the inserter rear cover. REP 12.83-171.
2. Remove the inserter PWB, Figure 2.
Figure 2 Inserter PWB
Replacement
1. Reverse the removal procedures to replace the Inserter PWB.
2. Ensure that the ground strap is secured by one of the fixing screws.
3
Remove the inserter
PWB.
2
Remove 4 screws
and the ground strap.
1
Disconnect all the PJs from
the PWB.
To Next Page
