ColorQube® 9303 Family
REP 12.86-171
Repairs/Adjustments
REP 12.86-171 Inserter Clutch
Parts List on PL 12.310.
Removal
WARNING
Take care during this procedure. Sharp edges may be present that can cause injury.
WARNING
Switch off the electricity to the machine. Refer to GP 14. Disconnect the power cord
from the customer supply while performing tasks that do not need electricity. Electricity
can cause death or injury. Moving parts can cause injury.
1. Remove the Inserter rear cover. REP 12.83-171.
2. Remove the inserter clutch, Figure 1.
NOTE: The reverse roll drive idler and the drive belt are not attached to the clutch bracket
or the Inserter frame.

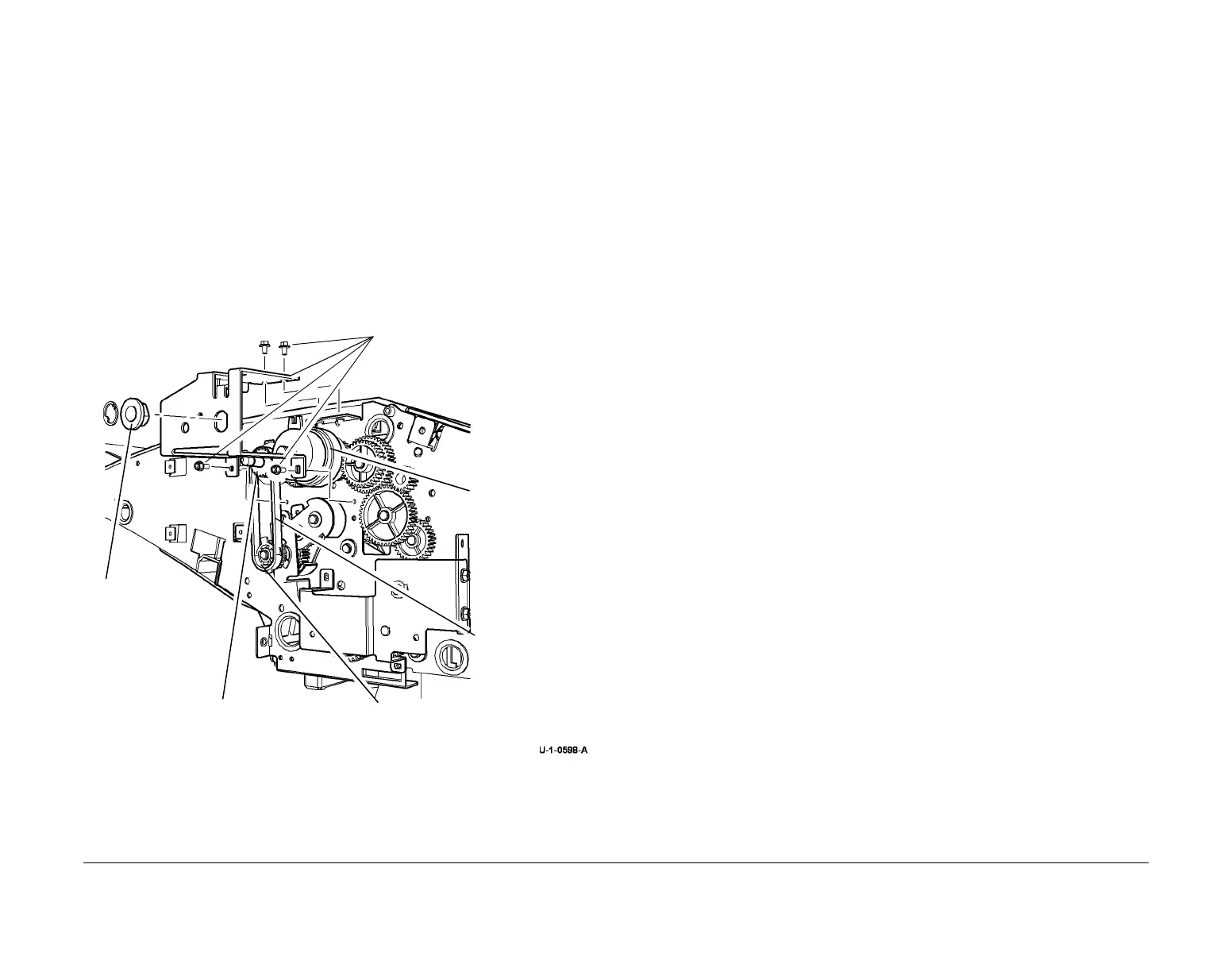

Figure 1 Inserter Clutch Removal
Replacement
1. Reverse the removal procedures to replace the Inserter clutch.
2. When replacing the bracket, check that the clutch torque arm locates in the locating tab.
3. Put the reverse roll drive belt over the drive idler and check that the reverse roll idler gear
shaft locates properly into the frame.
4. When the bracket is secured, temporarily remove the circlip and the reverse roll drive pul-
ley to replace the drive belt over the reverse roll drive pulley.
2
Remove 4 screws, then the bracket.
3
Disconnect the con-
nector, then remove
the inserter clutch.
Reverse roll drive
belt
Reverse roll drive
idler
Reverse roll drive
pulley
1
Remove the E-clip
and bearing.
FOR CLARITY
INSERTER MOTOR
NOT SHOWN
