ColorQube® 9303 Family
REP 12.87-171, REP 12.88-171
Repairs/Adjustments
REP 12.87-171 Inserter Top Cover Interlock Switch
Parts List on PL 12.305.
Removal
WARNING
Take care during this procedure. Sharp edges may be present that can cause injury.
WARNING
Switch off the electricity to the machine. Refer to GP 14. Disconnect the power cord
from the customer supply while performing tasks that do not need electricity. Electricity
can cause death or injury. Moving parts can cause injury.
1. Remove the Inserter front cover, REP 12.83-171.
2. Remove the top cover interlock switch, Figure 1.

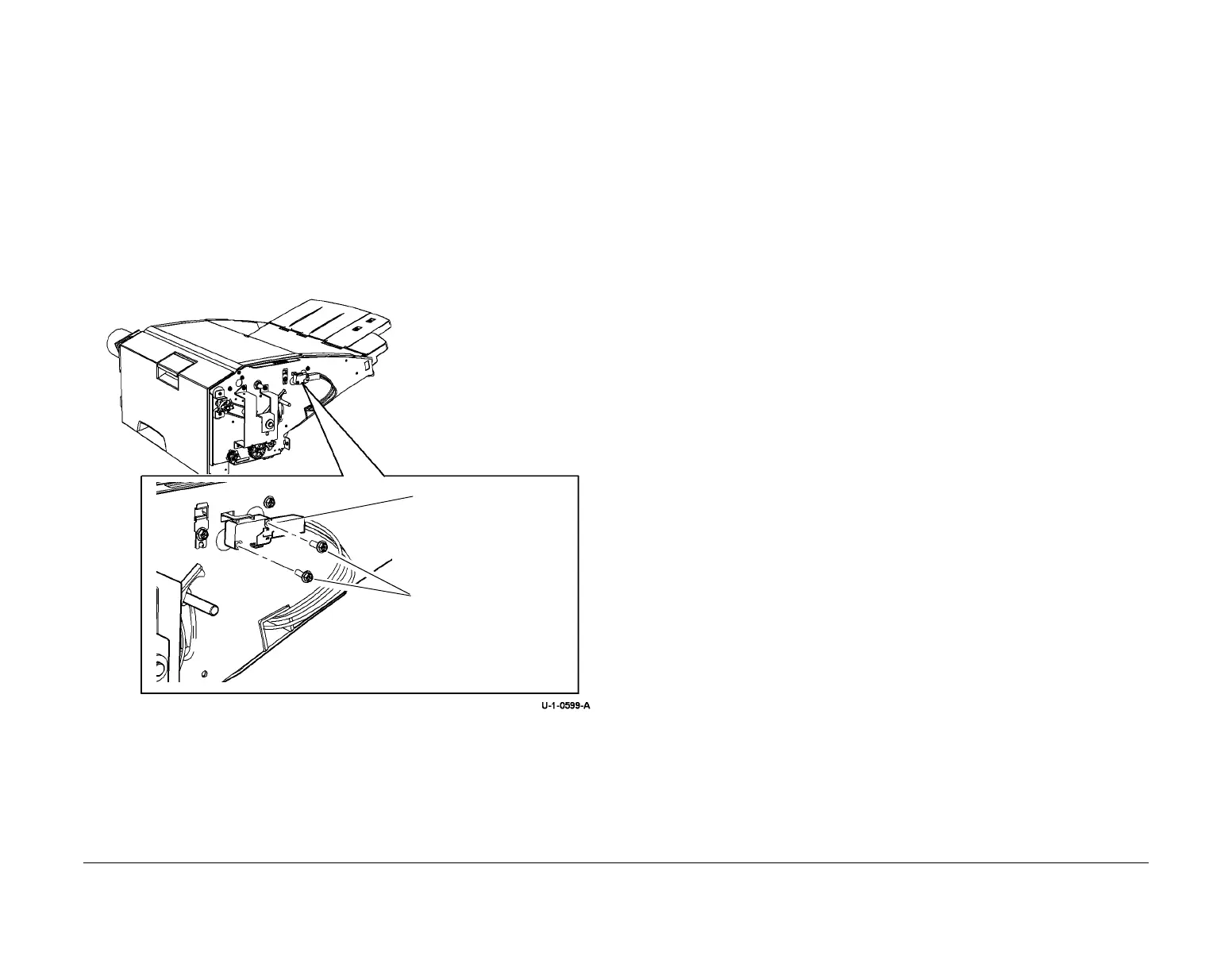

Figure 1 Top Cover Interlock Switch
Replacement
Reverse the removal procedures to replace the Inserter top cover interlock switch.
REP 12.88-171 Inserter Jam Cover Interlock Switch
Parts List on PL 12.300.
Removal
WARNING
Take care during this procedure. Sharp edges may be present that can cause injury.
WARNING
Switch off the electricity to the machine. Refer to GP 14. Disconnect the power cord
from the customer supply while performing tasks that do not need electricity. Electricity
can cause death or injury. Moving parts can cause injury.
1. Remove the Inserter front and rear covers, REP 12.83-171.
2. Remove the inserter motor, REP 12.84-171.
1
Disconnect the harness.
2
Remove 2 screws, then
remove the switch.
