February 2013
4-234
ColorQube® 9303 Family
REP 12.93-171
Repairs/Adjustments
REP 12.93-171 Inserter LE and TE Sensors
Parts List on PL 12.310.
Removal
WARNING
Take care during this procedure. Sharp edges may be present that can cause injury.
WARNING
Switch off the electricity to the machine. Refer to GP 14. Disconnect the power cord
from the customer supply while performing tasks that do not need electricity. Electricity
can cause death or injury. Moving parts can cause injury.
1. Remove the Inserter front and rear covers, REP 12.83-171.
2. Remove the inserter motor, REP 12.84-171.
3. Remove the pickup roll assembly, REP 12.95-171.
4. Remove the top cover, REP 12.91-171.
5. Remove the top inside cover, REP 12.88-171.
6. Remove the LE sensor or TE sensor, Figure 1.

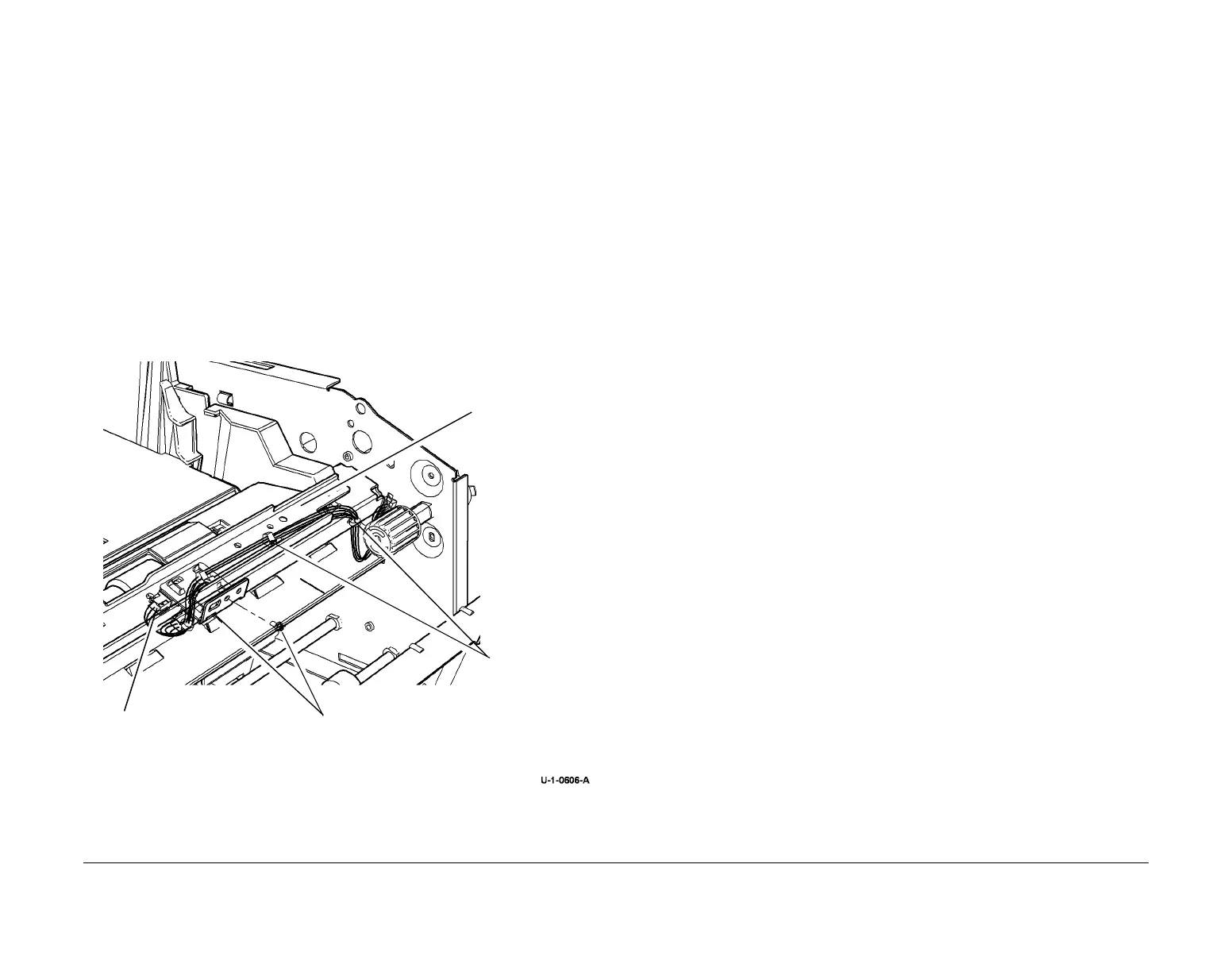

Figure 1 LE and TE Sensors
Replacement
Reverse the removal procedure to replace the LE and TE paper path sensors.
1
Release the har-
ness clips.
2
Remove 1 screw, then
the sensor bracket.
3
Disconnect the harness,
then remove the relevant
sensor.
Idle Roll Assembly
To Next Page
