February 2013
4-233
ColorQube® 9303 Family
REP 12.91-171, REP 12.92-171
Repairs/Adjustments
REP 12.91-171 Inserter Top Cover and Inserter Pickup
Sensor
Parts List on PL 12.310.
Removal
WARNING
Take care during this procedure. Sharp edges may be present that can cause injury.
WARNING
Switch off the electricity to the machine. Refer to GP 14. Disconnect the power cord
from the customer supply while performing tasks that do not need electricity. Electricity
can cause death or injury. Moving parts can cause injury.
1. Remove the Inserter Front Cover, REP 12.83-171.
2. To release the top cover, remove the pivot screw, Figure 1.
3. Remove the inserter pickup sensor, Figure 1.

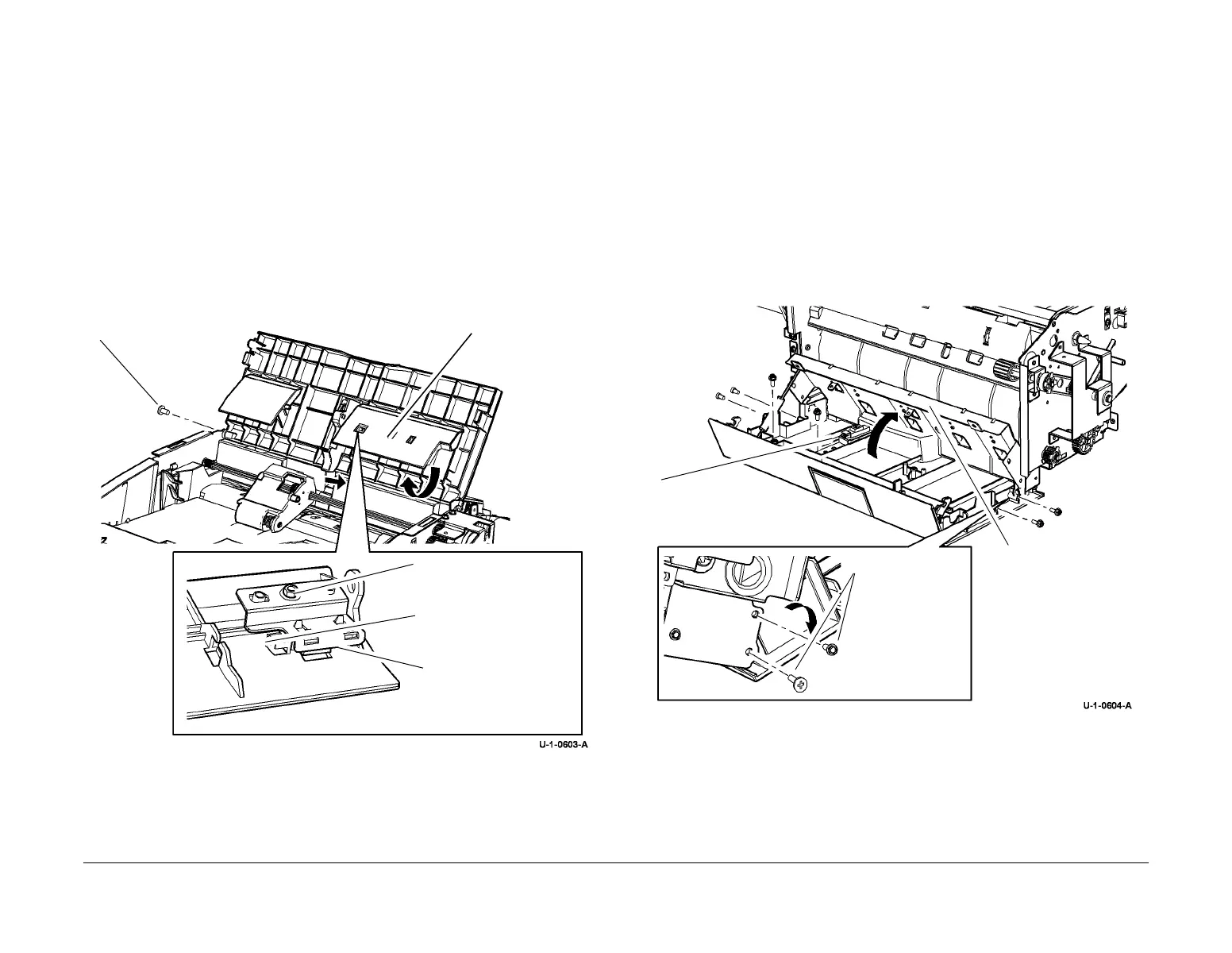

Figure 1 Cover and Inserter Pickup Sensor
Replacement
Reverse the removal procedure to replace the inserter pickup sensor and top cover.
REP 12.92-171 Lower Jam Cover and Acceleration Sensor
Parts List on PL 12.300.
Removal
WARNING
Take care during this procedure. Sharp edges may be present that can cause injury.
WARNING
Switch off the electricity to the machine. Refer to GP 14. Disconnect the power cord
from the customer supply while performing tasks that do not need electricity. Electricity
can cause death or injury. Moving parts can cause injury.
1. Remove the front and rear covers, REP 12.83-171.
2. Remove the acceleration sensor. Figure 1.
Figure 1 Acceleration sensor
Replacement
Reverse the removal procedure to replace the Inserter lower jam cover and the acceleration
sensor.
Release the guide
from the top cover.
2
Remove the screw.
3
Disconnect the harness.
4
Release the sensor from
the bracket.
Top cover pivot screw
1
Remove the front
and rear door stop
and door pivot
screws.
2
Remove 2 screws and
lift the inner cover.
3
Disconnect the harness and
remove the acceleration
sensor.
