13-2
IM PX8000-02EN
13.2 Measuring with Vertical Cursors
This section explains the following settings for measuring with vertical cursors:
• Cursor type
• Source waveform
• Moving the cursors
• Jumping the cursors
• Measurement items
• Windows that cursor measurements will be performed in
► Features Guide: “Vertical Cursors (Vertical) - T-Y waveforms”
“Vertical Cursors (Vertical) (X-Y)”
“Turning the X-Y Window Display On and Off (Display)”
“Record Length (Record Length)”

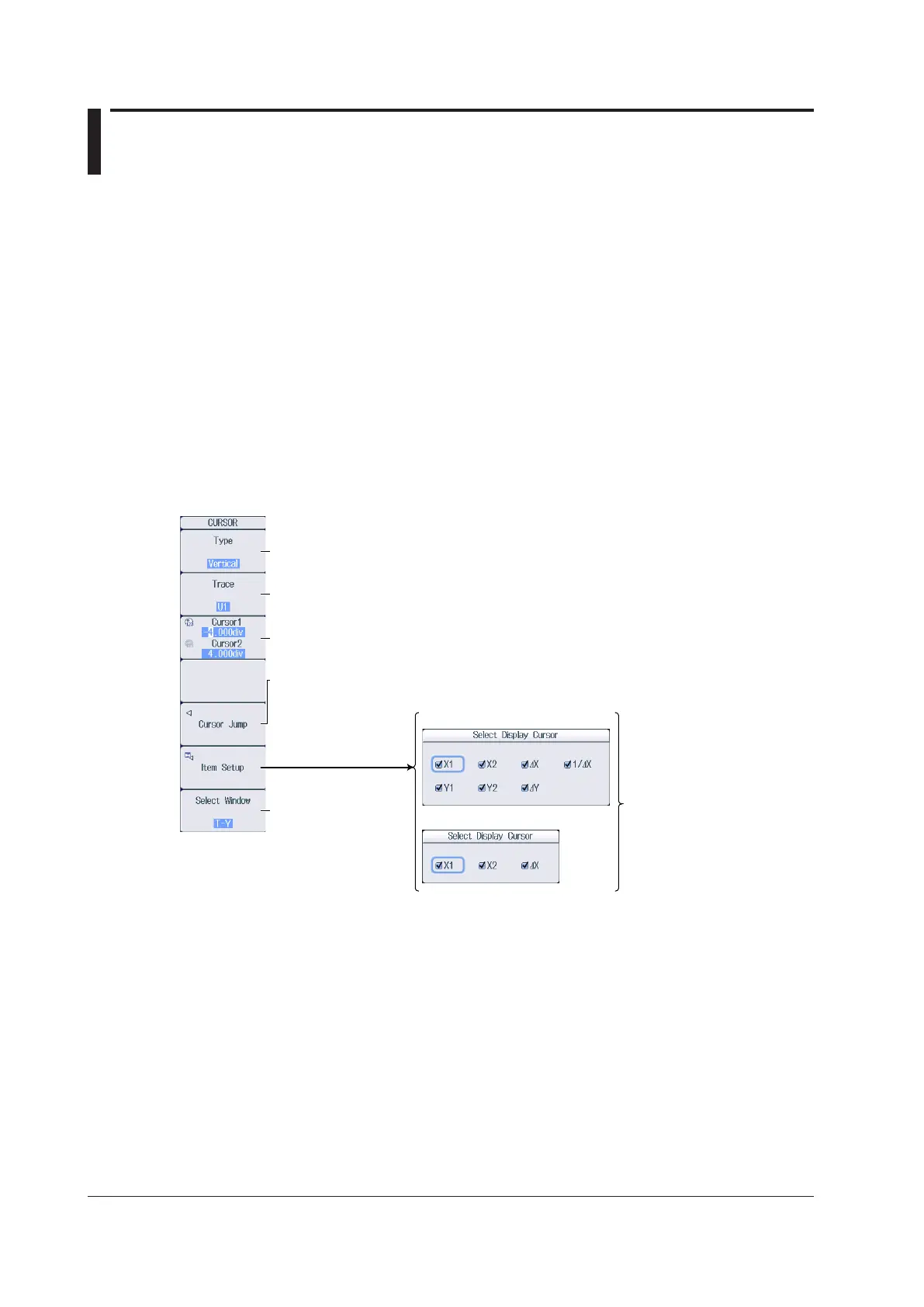

CURSOR Vertical Menu
Press CURSOR, the Type soft key, and then the Vertical soft key to display the following menu.
* This is available when the X-Y window display is turned on.
Set measurement items.
Set the window in
which cursor
measurements will
be performed (T-Y,
X-Y).*
Move the cursors (−5div to 5div). The setting resolution varies depending on
the display record length.
Set the source waveform.
Set Type to Vertical.
Moves the specified cursor to the center of the specified zoom window
(Cursor1 to Zoom1, Cursor1 to Zoom2, Cursor2 to Zoom1, Cursor2 to Zoom2)
When the window is T-Y
When the window is X-Y*
Select the measurement
items that you want to use.
Setting the Source Waveform (Trace)
The waveforms that you can select differ depending on the window that cursor measurements will be
performed in.
• T-Y: All, U1 to U4, I1 to I4, P1 to P4, AUX3 to AUX8, Math1 to Math8
• X-Y: XY1 to XY8
To Next Page
