9-1
IM PX8000-02EN
Chapter 9 Bar Graph Display (Option)
9.1 Configuring the Bar Graph Display
This section explains the following settings for displaying bar graphs. These settings are available on
models with the harmonic measurement (/G5) option.
• Bar graph display format
• Bar graph number
• Measurement function
• Element
• Bar graph display range (displayed harmonics)
• Turning the numeric data display on and off
• Marker position (harmonic)
► Features Guide: “Bar Graph Display (Option)”

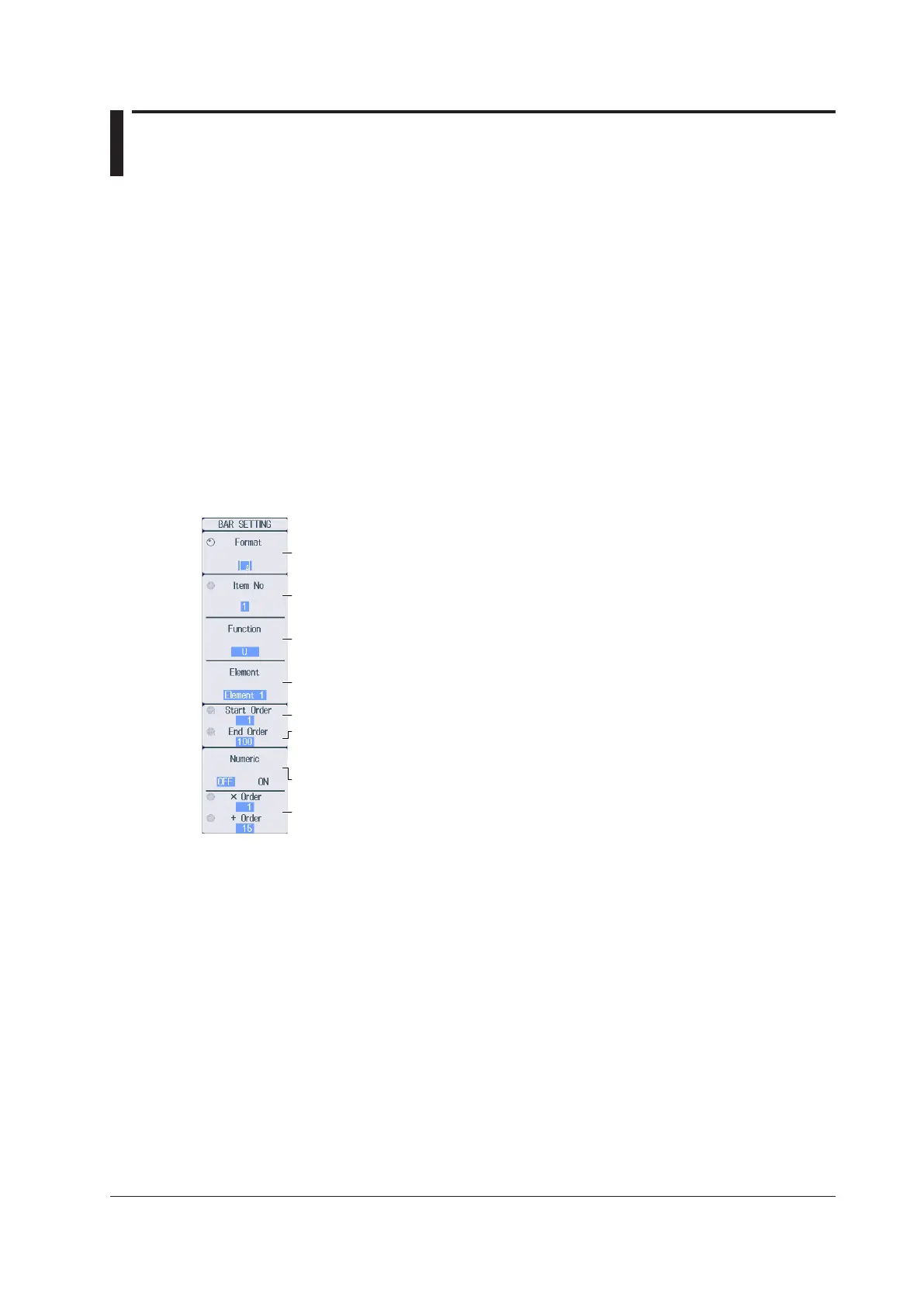

BAR SETTING Menu
Use the DISPLAY MODE and DISPLAY SETTING keys as explained in section 5.1 to display the BAR
SETTING menu.
Set the display format (1 (no windows), 2, 3).
Set the measurement function (U, I, P, S, Q, λ, Φ, ΦU, ΦI, Z, Rs, Xs, Rp, Xp).
Set the bar graph number (1-3).
Turns the numeric data display on and off
Set the harmonic order of the bar graph to measure with markers x and + (0-500).
Set the element (Element 1-Element 4).
Set the bar graph display range.
• The display’s starting harmonic order (0-490)
• The display’s ending harmonic order (10-500)
You can set the range to any value provided that the end harmonic order is
larger than the start harmonic order by 10 or more.
If you press this soft key and select both × Order and + Order, you can change
both orders while maintaining the relationship between the two.
To Next Page
