6-3
IM PX8000-02EN
6.2 Changing the Displayed Items on the 4-, 8-,
and 16-Value Displays
This section explains the following settings for the displayed items on the 4-, 8-, and 16-value displays.
• Item number
• Measurement function
• Element and wiring unit
• Order (harmonic order, /G5 option)
• Resetting the displayed items
► Features Guide: “4-, 8-, and 16-Value Displays (4 Items/8 Items/16 Items).”

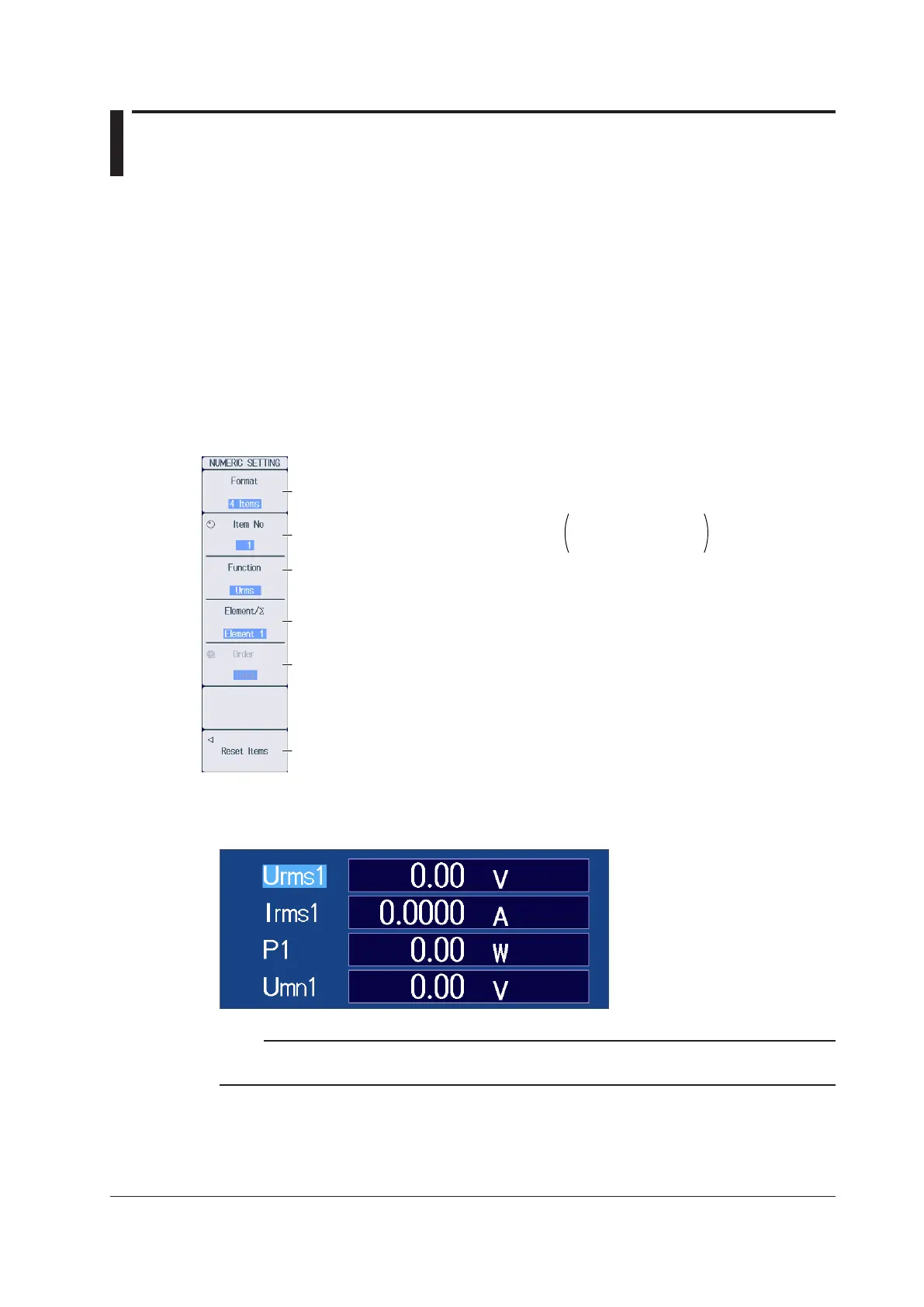

NUMERIC SETTING Menu
Use the DISPLAY MODE and DISPLAY SETTING keys as explained in section 5.1 to display the
NUMERIC SETTING menu.
Set the display format to 4 Items, 8 Items, or 16 Items.
Select the item number that you want to set.
For 4 Items: 1-48
For 8 Items: 1-96
For 16 Items: 1-192
Set the measurement function (None, other functions—for details on the
various measurement functions, see “Items That This Instrument Can Measure”
in the Features Guide).
Set the element and wiring unit (Element 1-Element 4, ΣA, ΣB).
Set the harmonic order (Total, 0-500).*
You can set this setting only when you have selected a measurement function that
includes a harmonic order.
* These settings are available on models with the harmonic measurement (/G5) option.
Set the resetting of displayed items.
Example of the 4 Items Display
Note
If every numeric data is displayed as no data (−−−−−−−), check the referenced sections under “Note” in
section 6.1.
To Next Page
