8-1
IM PX8000-02EN
8.1 Setting the Waveform Display
This section explains the following settings for displaying waveforms.
• Waveform display format
• Detailed settings of the waveform display
Turning waveform display on and off, waveform color, waveform mapping, waveform label,
vertical zoom
DIV: Offset value, waveform’s vertical position, magnification
SPAN: Upper and lower limits of the display range
Horizontal (time scale) zoom ► chapter 12
• Interpolation method
• Grid
• Turning the display of scale values on and off
• Turning the trace label display on and off
• Extra window
► Features Guide: “Waveform Display Settings”

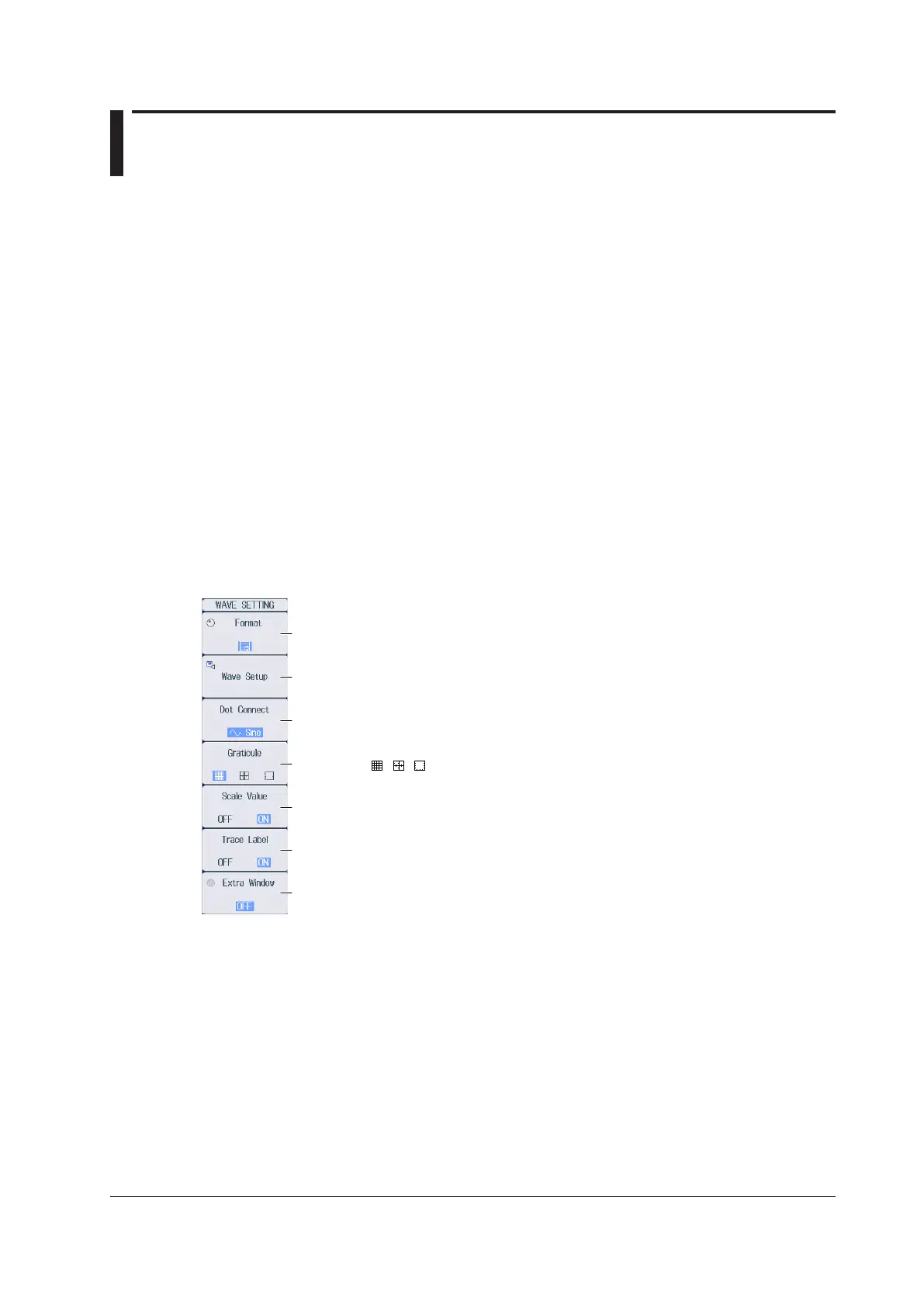

WAVE SETTING Menu
Use the DISPLAY MODE and DISPLAY SETTING keys as explained in section 5.1 to display the
WAVE SETTING menu.
Turns the trace label display on and off
Configure the detailed settings of the waveform display.
Set the interpolation method (OFF, Sine, Line, Pulse).
Set the extra window (OFF, 1, 2, 3, 4, 5, 6, 7, 8, Auto).
Turns the display of scale values on and off
Set the display format (1 (no windows), 2, 3, 4, 6, 8, 12, 16).
Set the grid ( , , ).
Chapter 8 Waveform Display
To Next Page
