YOKOGAWA PX8000

2-10
IM PX8000-02EN
2.4 Configuring Sensor Input Voltage
Measurements
This section explains the following settings for the vertical axis of sensor input voltage measurements.
• Waveform display on and off
• Display labels
• Zoom method
DIV: Magnification for zooming waveforms, offset
SPAN: Upper and lower display limits for zooming waveforms
• Auto range on and off
• AUX settings
Input signal type, linear scaling, display format
• Input coupling
• Probe attenuation
• Bandwidth limit
• Upper and lower pulse reference levels
• Sensor input voltage measurement range
• Sensor input voltage waveform vertical position
► Features Guide: “Sensor Input Voltage Measurement (AUX)”
Check that an AUX module is installed in slot 3, 5, or 7.

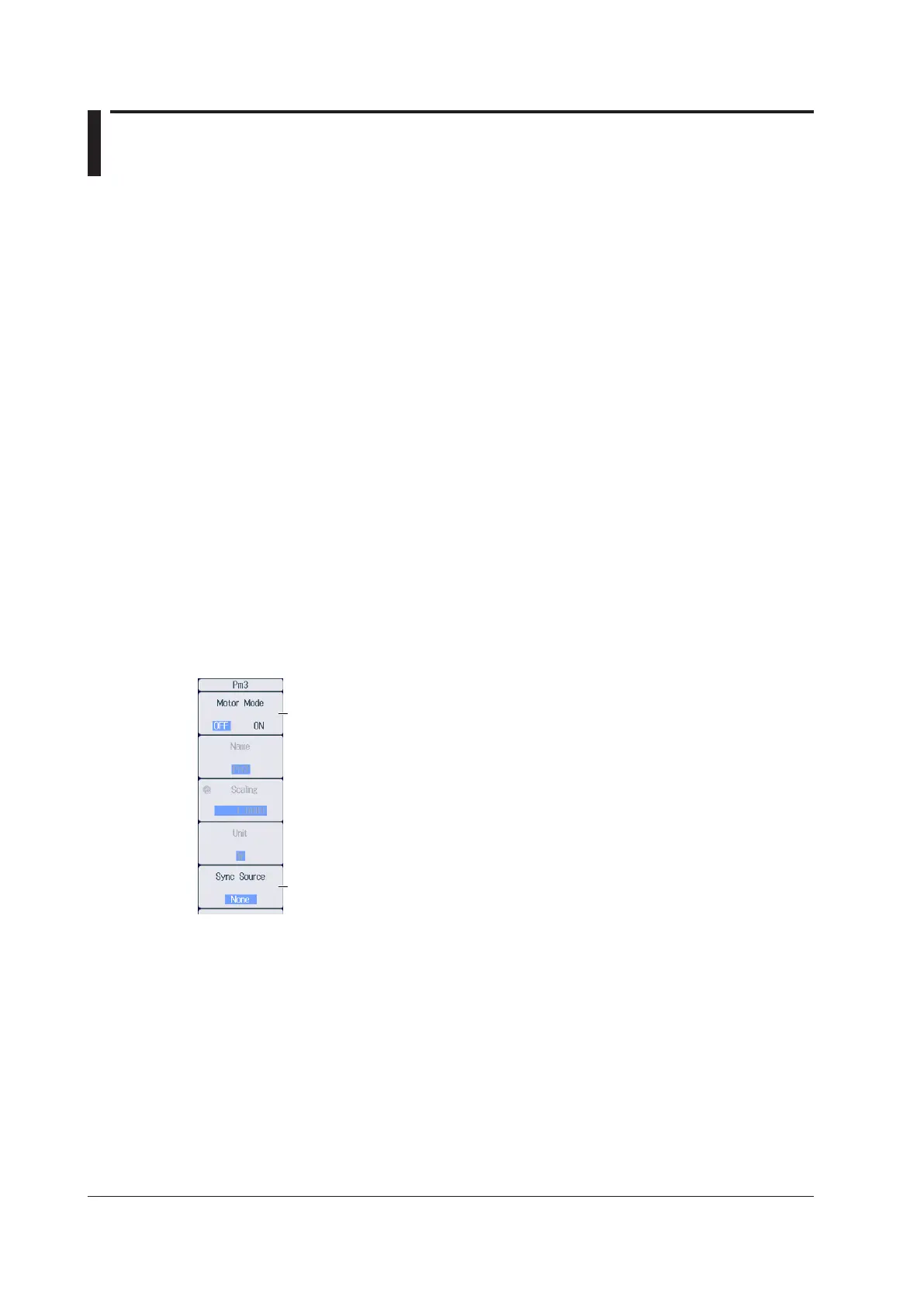

Pm Menu
Of the ELEM 2 to ELEM 4 keys, press the key corresponding to the slot in which the AUX module is
installed. On the menu that appears, set Motor Mode to OFF.
Set Motor Mode to OFF.
Set the synchronization source. ► section 1.3
