15-5
IM PX8000-02EN
15.5 Performing User-Defined Computations
This section explains the following settings for performing user-defined computations.
• Computation
User definition (User Define), expression, unit, label, turning the waveform display on and off
• Scaling
Computation start and end points
• FFT
• Filter
• Constant
Features Guide: “User-Defined Computation”
MATH Menu
1.

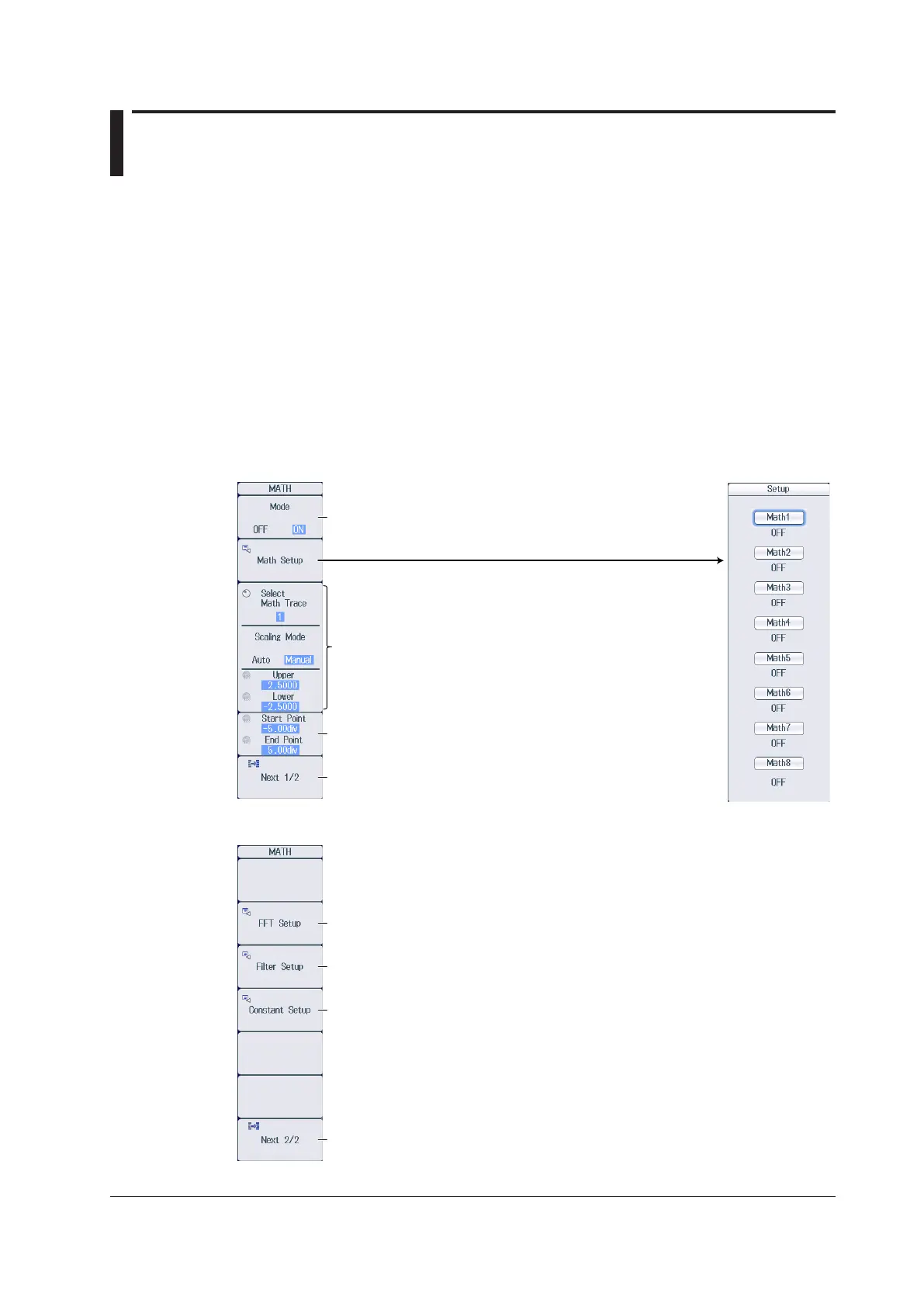

Press MATH to display the following menu.
Set the computation.
Displays the second page of the menu
Set the computation start and end points. ► sections 15.1 and 15.4
Set Mode to ON.
Set the scaling. ► section 15.1
2.
Press the Next 1/2 soft key to display the 2/2 menu.
Displays the first page of the menu
Set the filters.
Set the constant.
Set the FFT.
