Configuring Computations (Math Setup)
1.
Press the Math Setup soft key.
2.

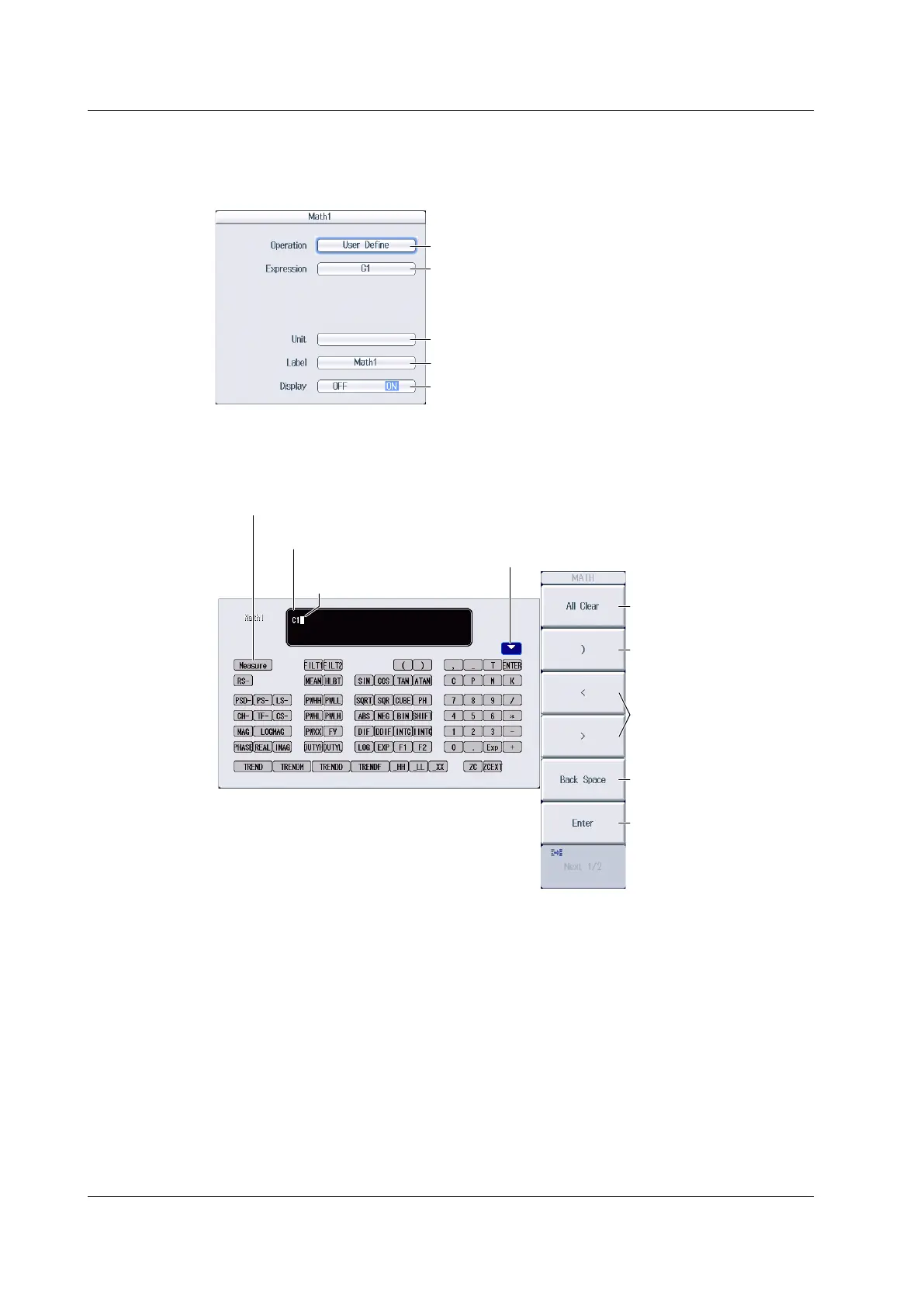

Press a soft key from Math1 to Math8 to display the following screen.
Set Operation to User Define.
Set the equation.
Turns the waveform display on and off
Set the label.
Set the unit.
Setting the Expression (Expression)
3.
Select
Expression to display the following screen.
Character insertion position
Enter a character string from the history.
Deletes all characters
Inserts a )
Move the character insertion
position
Deletes the previous character
Confirms the expression
you defined
Add the results of automated measurement of
waveform parameters to the expression.
Define an expression by combining computation
source waveforms, operators, and functions.
15.5 Performing User-Defined Computations
