14-1
IM PX8000-02EN
14.1 Automatically Measuring Waveform
Parameters
This section explains the following settings for automatically measuring waveform parameters.
• Turning automated measurement on and off
• Source waveform and measurement items
• Measurement time period
• Turning cycle mode on and off
• Parameter details
• Delay settings
► Features Guide: “Automated Measurement of Waveform Parameters”
“Record Length (Record Length)”

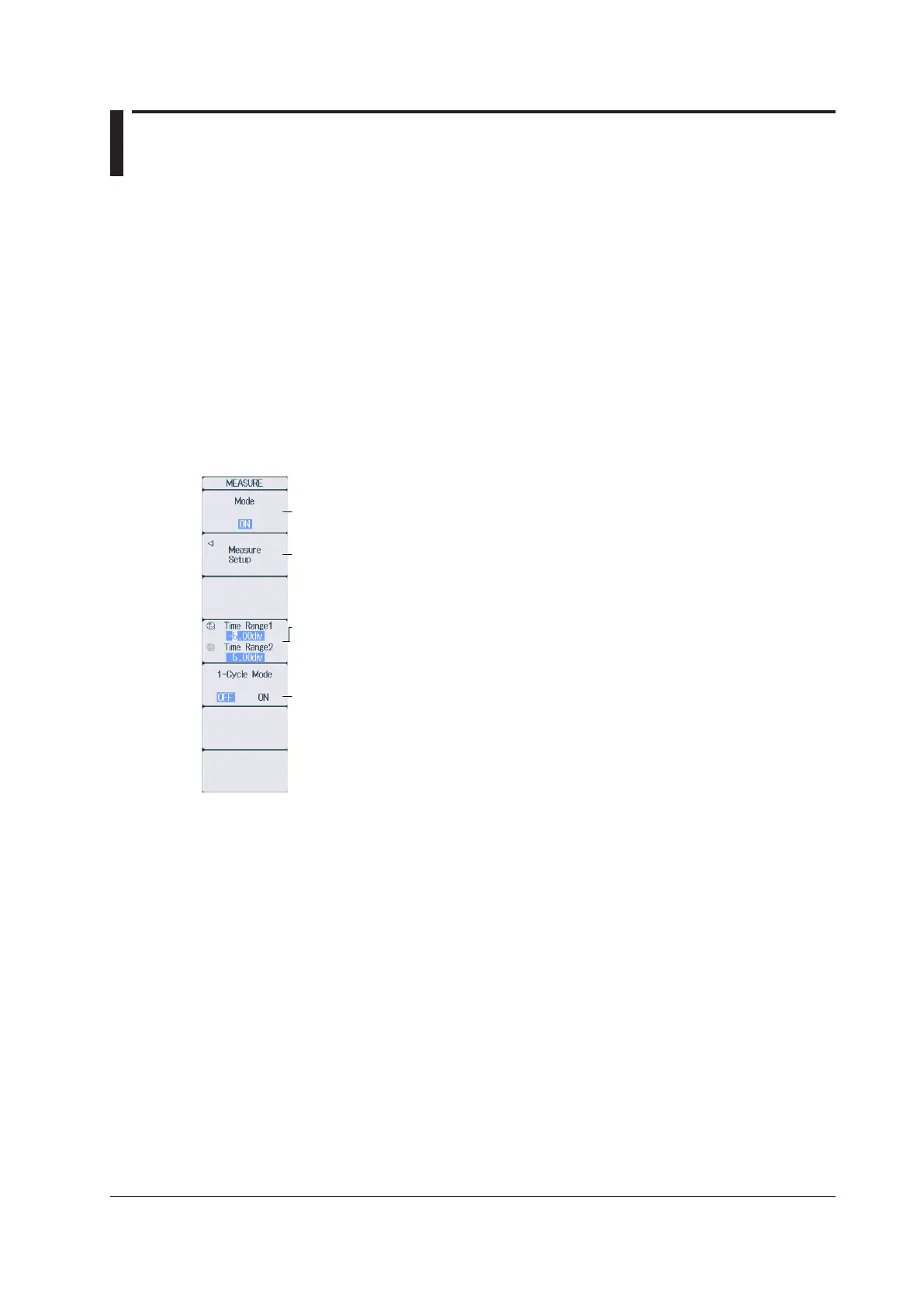

MEASURE Menu
Press MEASURE, the Mode soft key, and then the ON soft key to display the following menu.
Set the source waveform and measurement items.
Set Mode to ON.
Turns cycle mode on and off
If the measurement time period (the spacing between Time Range1 and Time Range2) is less
than 1 cycle, the measured value will be “*****.”
Set the measurement time period (−5div to 5div). The setting resolution varies depending
on the display record length.
Time period 2 (Time Range2) must be greater than or equal to Time period 1 (Time Range1).
The maximum number of data points that are measured is 100 Mpoint from Time Range 1.
Chapter 14 Automated Measurement of Waveform Parameters
To Next Page
