4-1
IM PX8000-02EN

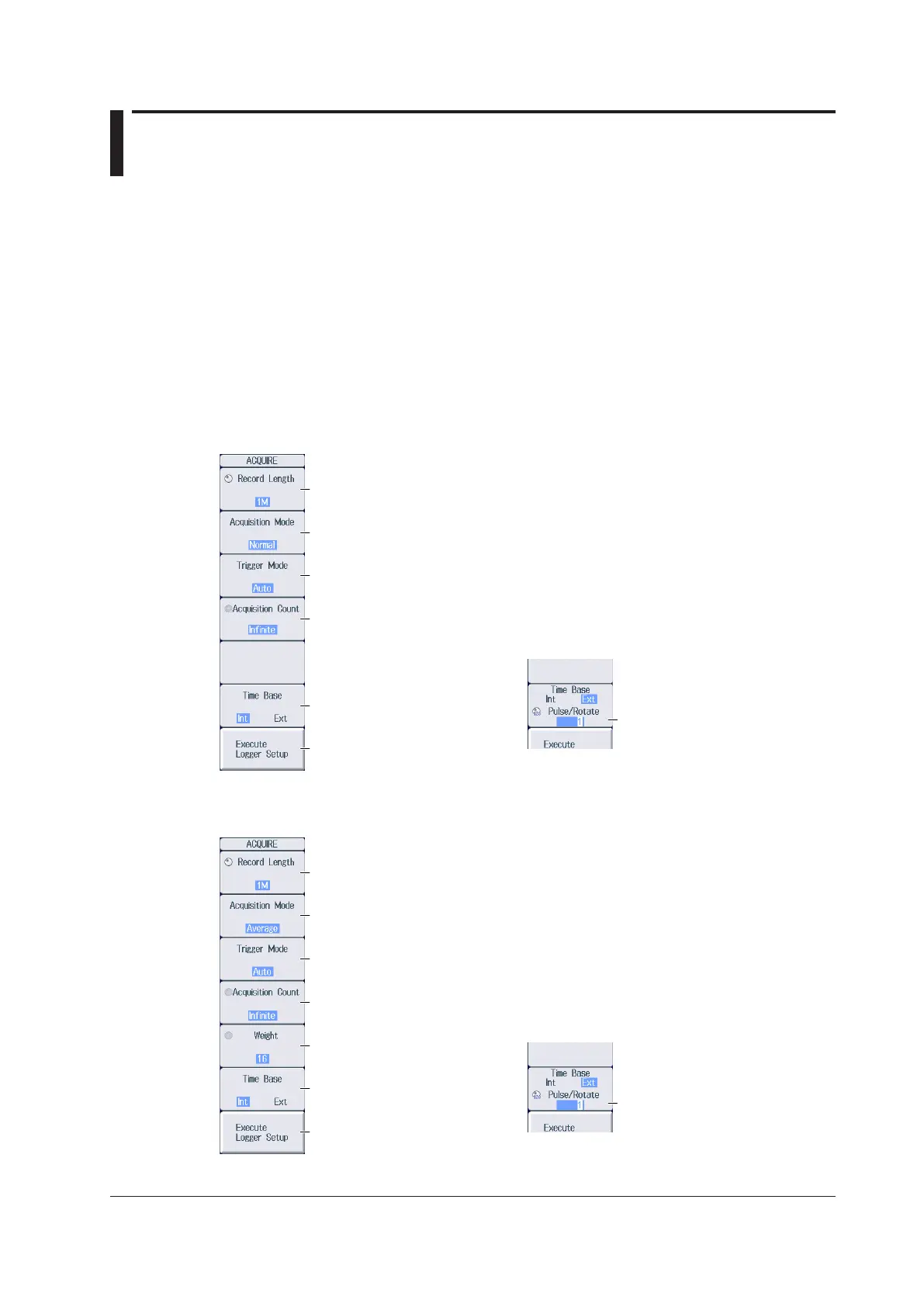

4.1 Setting Conditions for Waveform Acquisition
This section explains the following settings for acquiring waveforms.
Record length
Acquisition mode
Number of waveforms to acquire and attenuation constant
Time base
Executing logger setup
Features Guide: “Waveform Acquisition”
ACQUIRE Menu
Press ACQUIRE to display the following menu.
When the Acquisition Mode Is Set to Normal or Envelope
Set the pulse/rotation.
* A confirmation message will appear.
Set the time base (Int, Ext).
Execute Logger Setup.*
Set the number of waveform acquisitions.
Set the trigger mode. ► section 3.1
Set the acquisition mode to
Normal or Envelope.
Set the record length.
When the time base is Ext
When the Acquisition Mode Is Set to Average
Set the pulse/rotation.
* A confirmation message will appear.
Set the time base (Int, Ext).
Execute Logger Setup.*
Set the number of waveform acquisitions.
Set the attenuation constant.
Set the trigger mode. ► section 3.1
Set the acquisition mode to
Average.
Set the record length.
When the time base is Ext
Chapter 4 Waveform Acquisition
