Connection Procedure
To Connect to a PC over a Network
1.
Turn off the PX8000.
2.
Connect one end of a UTP (or STP) cable to the ETHERNET 1000BASE-T port on the side
panel.
3.
Connect the other end of the UTP (or STP) cable to a hub or router.
4.
Turn on the PX8000.

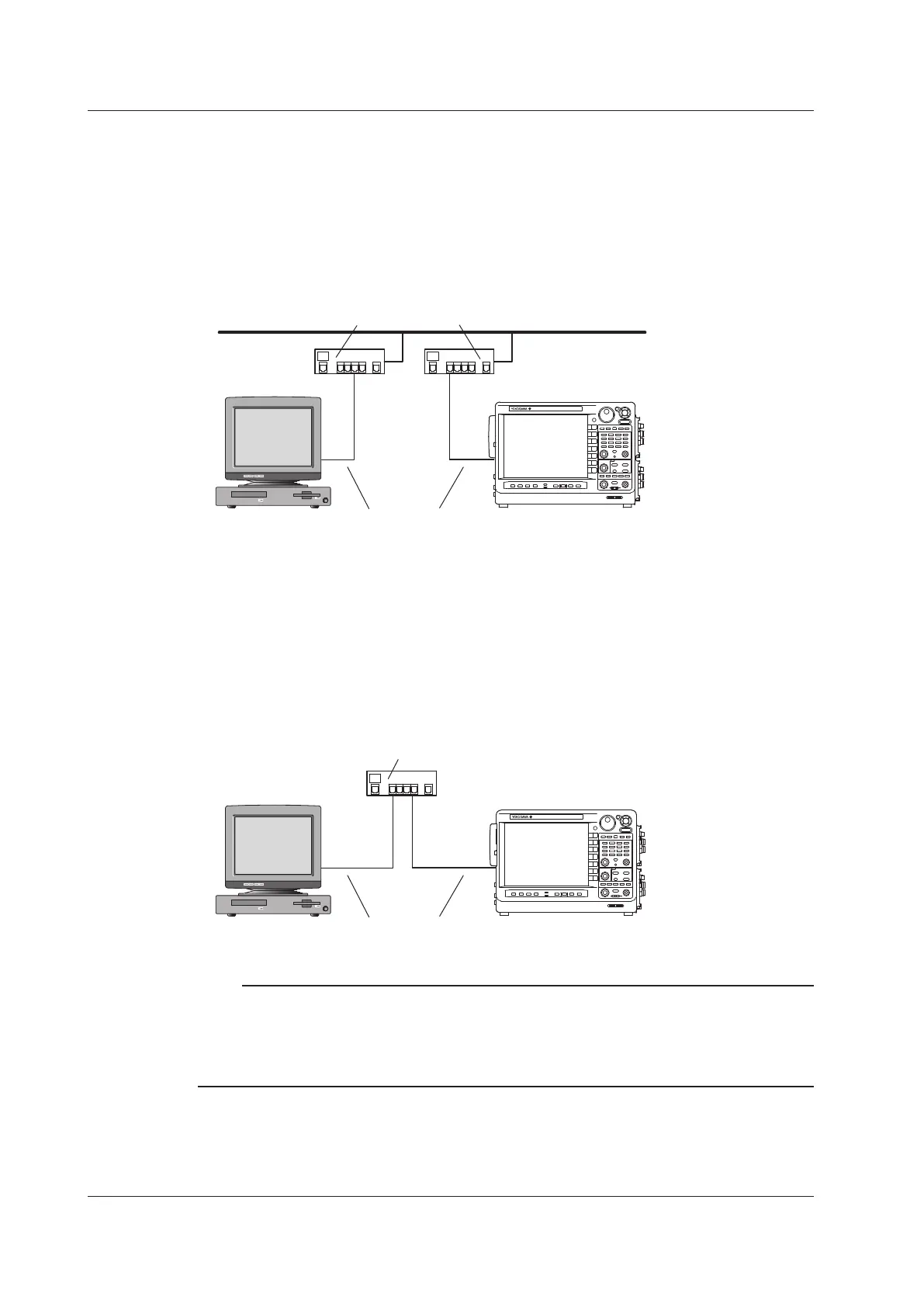

PC
PX8000
Hub or router that supports 1000BASE-T
UTP or STP cable
(straight cable)
To Connect to a PC through a Hub or Router
1.
Turn off the PX8000.
2.
Connect one end of a UTP (or STP) cable to the ETHERNET 1000BASE-T port on the side
panel.
3.
Connect the other end of the UTP (or STP) cable to a hub or router.
4.
Connect the PC to the hub or router in the same way.
5.
Turn on the PX8000.
PC
PX8000
Hub or router that supports 1000BASE-T
UTP or STP cable
(straight cable)
Note
• Use a hub or router that conforms to the transfer speed of your network.
• When you connect a PC to the PX8000 through a hub or router, the PC must be equipped with an auto
switching 1000BASE-T/100BASE-TX/10BASE-T network card.
• Do not connect the PX8000 to a PC directly. Direct communication without a hub or router is not
guaranteed to work.
23.1 Connecting the PX8000 to a Network
