3-11
IM PX8000-02EN

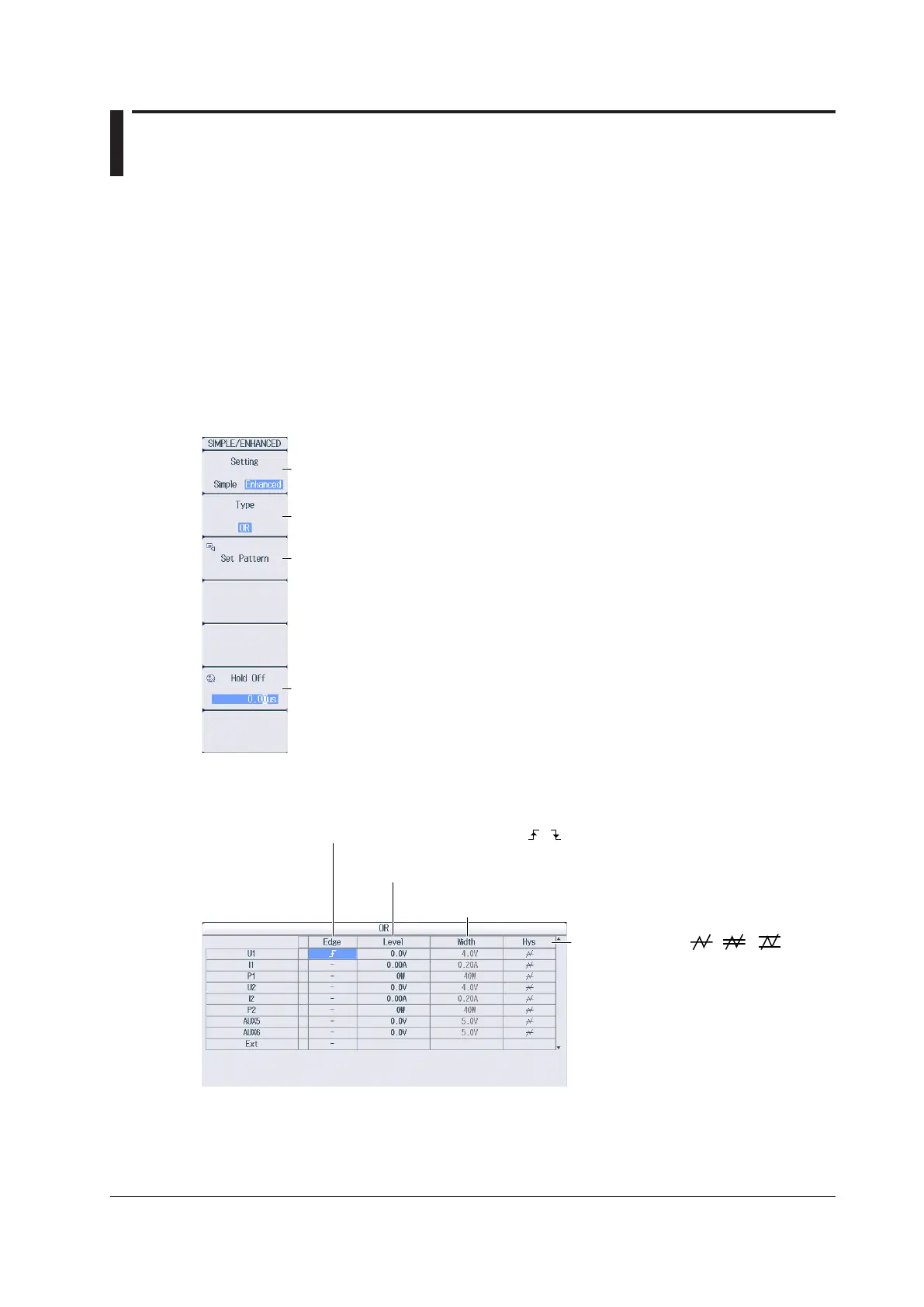

3.11 Triggering on an OR or AND Trigger (Enhanced)
This section explains the following settings for triggering on an OR or AND trigger.
Trigger source
Edge detection condition (OR trigger)
Achievement condition (AND trigger)
Trigger condition
Features Guide: “OR Trigger (Enhanced)” and “AND Trigger (Enhanced)”
ENHANCED OR Trigger Menu
Press SIMPLE/ENHANCED and then the Setting soft key to select Enhanced. The following menu
appears.
Set Setting to Enhanced.
Set the trigger hold off. ► section 3.3
Set Type to OR.
Set the state and trigger conditions.
Setting the State and Trigger Conditions (Set Pattern)
Press the Set Pattern soft key to display the following menu.
Set the level width
(when the edge detection condition is set to IN or OUT).
Set the edge detection condition ( , , IN, OUT, —).
Set the hysteresis ( , , ).
Set the trigger level (set to the center value of the level width if the
edge detection condition is set to IN or OUT).
