YOKOGAWA PX8000 User Manual

vii
IM PX8000-02EN

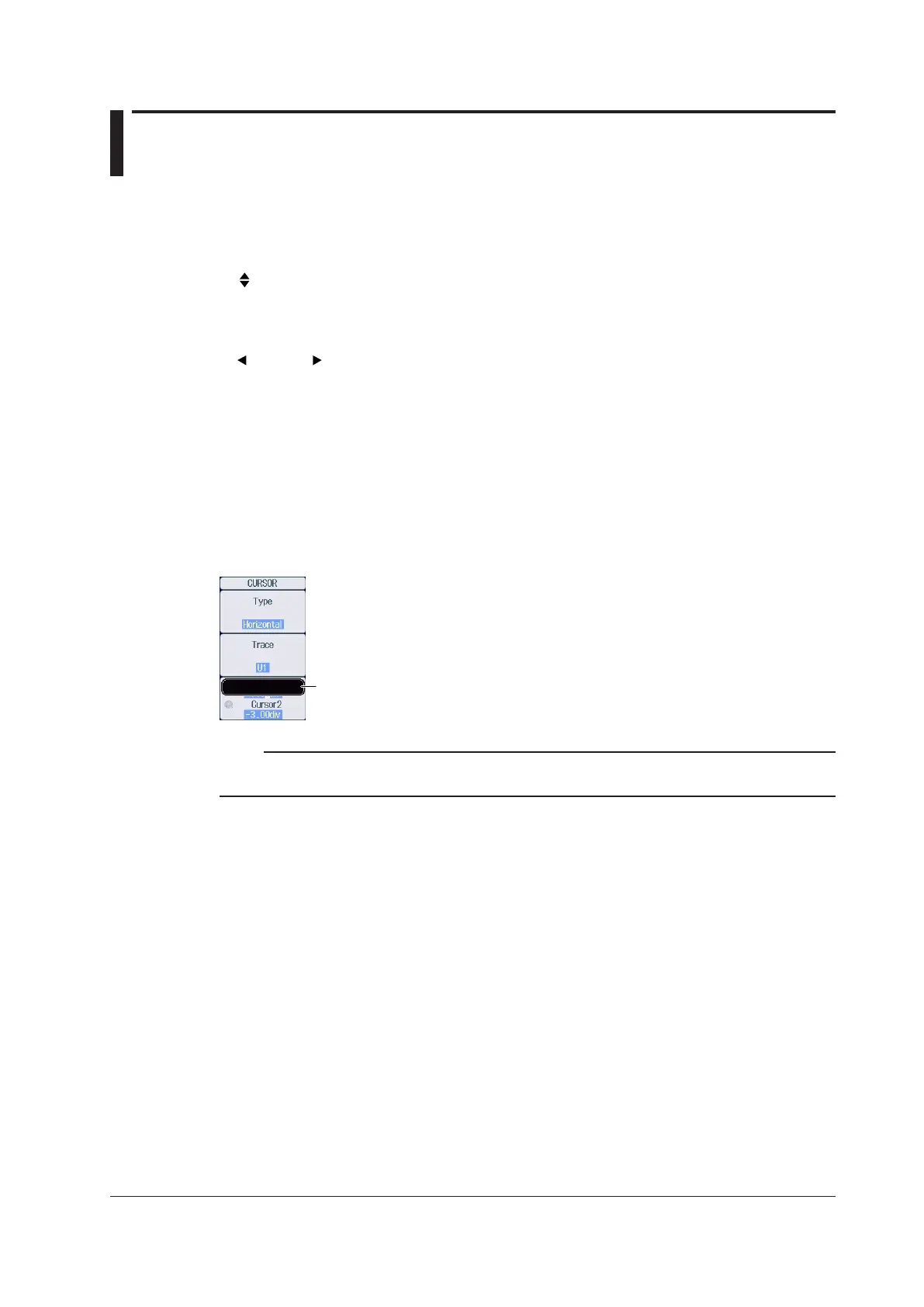

Entering Values and Strings
Entering Values
Using Dedicated Knobs
You can use the following dedicated knobs to enter values directly.
• POSITION knob (vertical POSITION knob)
• RANGE knob
• TIME/DIV knob
• MAG knob (magnification knob)
• POSITION knob (zoom POSITION knob)
Using the Jog Shuttle
Select the appropriate item using the soft keys, and change the value using the jog shuttle and the
SET key or using the arrow keys. This manual sometimes describes this operation simply as “using
the jog shuttle.”
Using the Keypad
Press
NUM LOCK to illuminate the NUM LOCK key, and use the ELEM1 to P4 keys to enter a
value. After you enter the value, press ENTER to confirm it.
Use the keypad to enter the value.
Note
Some items that you can set using the jog shuttle are reset to their default values when you press the RESET
key.
