14.3 Performing Cyclic Statistical Processing
This section explains the following settings for performing cyclic statistical processing on automatically
measured waveform parameters.
• Cyclic statistical processing
• Cycle trace (source waveform for determining the cycle)
• Result display
► Features Guide: “Cyclic Statistical Processing (Cycle Statistics)”

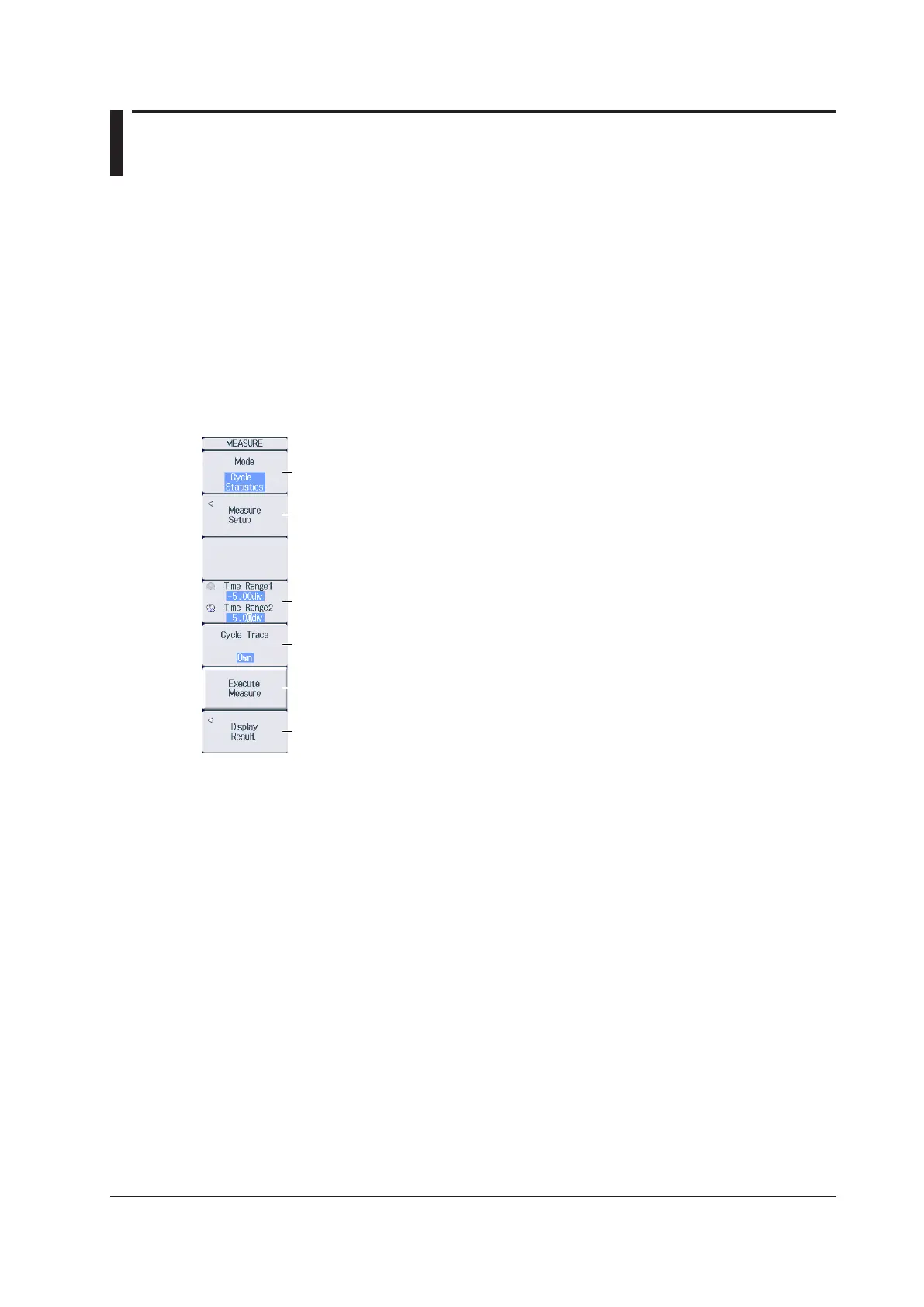

MEASURE Menu
Press MEASURE, the Mode soft key, and then the Cycle Statistics soft key to display the following
menu.
Set the source waveform and configure the measurement items. ► section 14.1
Set automated measurement to Cycle Statistics.
Set the cycle trace.
Set the measurement time period. ► section 14.1
Display the measured results.
Executes measurement
Setting the Cycle Trace (Cycle Trace)
U1 to U4, I1 to I4, P1 to P4, AUX3 to AUX8, Math1 to Math8:
The PX8000 automatically measures the waveform parameters of all the source waveforms and
performs statistical processing on the measured values once per cycle of the specified waveform.
Own:
The PX8000 determines the cycle of each source waveform. It then automatically measures
the waveform parameters and performs statistical processing once per cycle of each waveform.
However, if multiple waveforms with different cycles are measured, the number of iterations of
automated measurement of waveform parameters and statistical processing performed on all
waveforms is equal to the number of cycles in the slowest waveform.
