13-7
IM PX8000-02EN
13.6 Measuring with Peak Cursors (Peak)
This section explains the following settings for measuring with peak cursors. You can use peak cursors
when the FFT window is displayed.
• Cursor type
• Two measurement ranges
• Measurement items
• Windows that cursor measurements will be performed in
► Features Guide: “Peak Cursors (Peak)”
“Turning FFT On and Off (Display)”
“Start Point and Number of FFT Points (Start Point and FFT Points)”

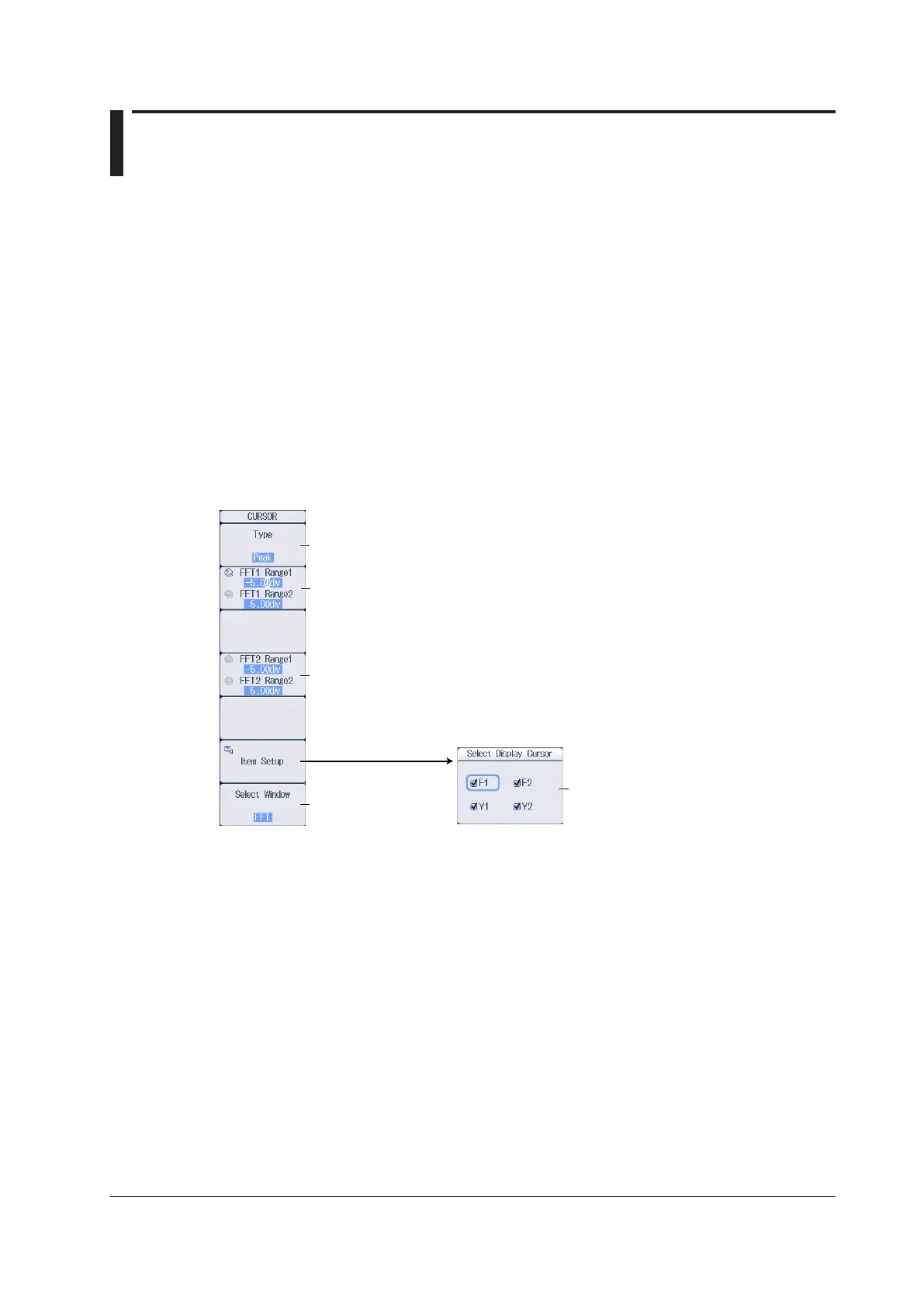

CURSOR Peak Menu
1.
Press CURSOR, and then press the Select Window soft key and then the FFT soft key.
2.
Press the
Type soft key and then the Peak soft key to display the following menu.
Set measurement items.
Set Select Window
to FFT.
Set Type to Peak.
Select the measurement items that
you want to use.
Set the FFT1 measurement time period (−5div to 5div). The setting resolution varies
depending on the number of FFT points.
Set the FFT2 measurement time period (−5div to 5div). The setting resolution varies
depending on the number of FFT points.
To Next Page
