19.1 Searching for Edges
This section explains the following settings for searching for edges.
• Search type
• Search conditions
Source waveform, reference level to detect, edge polarity, hysteresis, and detection count
• Detected waveform display
• Detected point number
• Search start and end points
• Executing the search
► Features Guide: “Edge Search (Edge)”

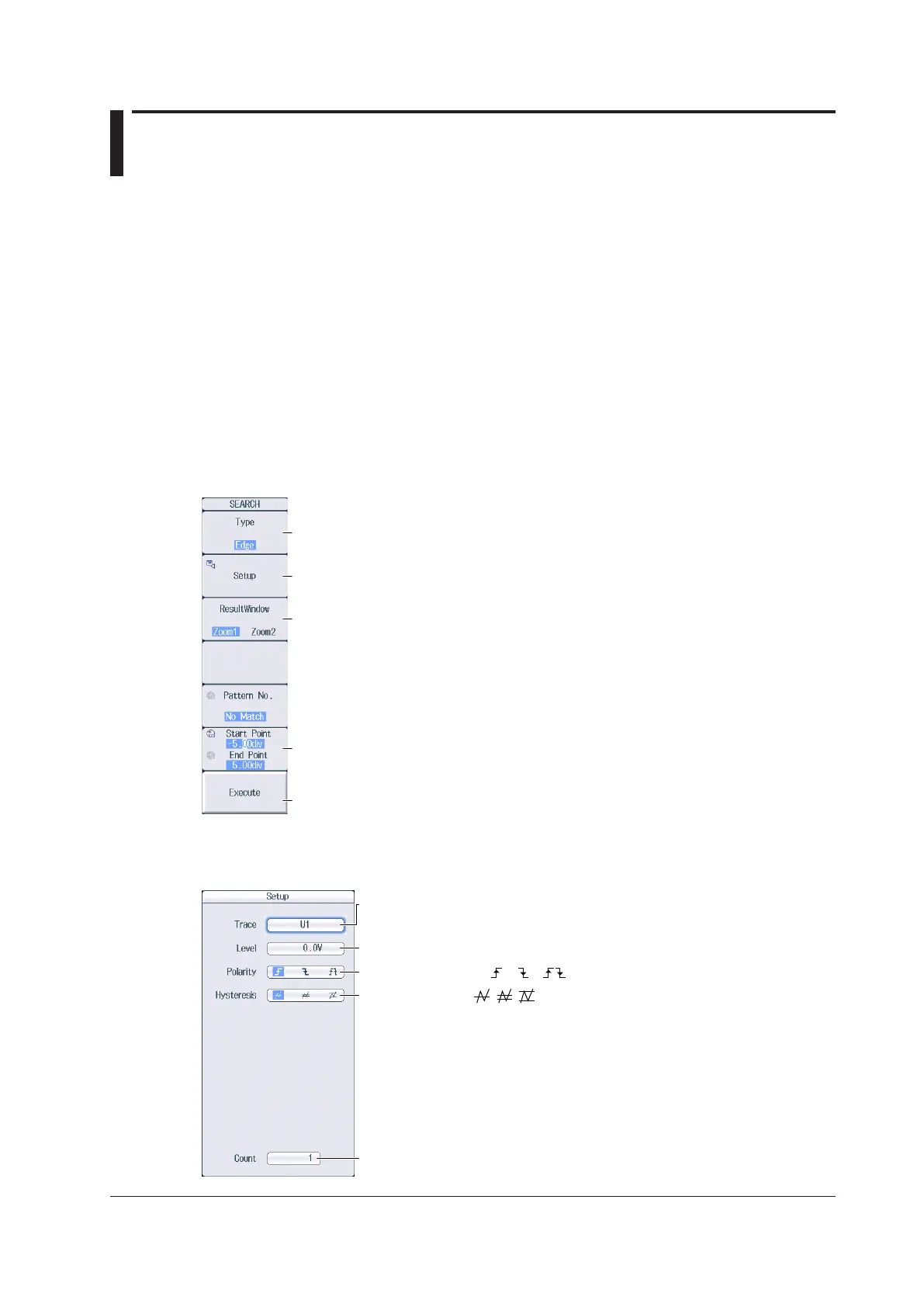

SEARCH Edge Menu
Press SHIFT+ZOOM (SEARCH), the Type soft key, and then the Edge soft key to display the following
menu.
Set the search conditions.
Set the search type to Edge.
Starts searching
Set the detected waveform display (Zoom1, Zoom2).
If both the Zoom1 and Zoom2 windows are displayed, select which one to operate.
Set the search start and end points (−5div to 5div).
The setting resolution varies depending on the display record length.
The end point must be greater than or equal to the start point.
Setting Search Conditions (Setup)
Press the Setup soft key to display the following screen.
Set the hysteresis ( , , ).
Set the reference level.
Set the waveform to search
(U1-U4, I1-I4, P1-P4, AUX3-AUX8).
Set the number of times to detect the conditions.
Set the edge polarity ( , , ).
Chapter 19 Searching Waveforms
