19-2
IM PX8000-02EN
Setting the Detected Waveform Display (Result Window)
Press the Result Window soft key to select which zoom window displaying the search waveform to
operate.
The search waveform that includes the search point specified by the detected point number (Pattern No.)
described later is displayed in the zoom windows. If both the Zoom1 and Zoom2 windows are displayed,
select which one to operate.
• If only one of the two zoom windows is displayed, you do not have to select the window.
• If both Zoom1 and Zoom2 are not displayed, Zoom1 will be displayed when you press SHIFT+ZOOM
(SEARCH) to display the SEARCH menu.
Executing a Search (Execute)

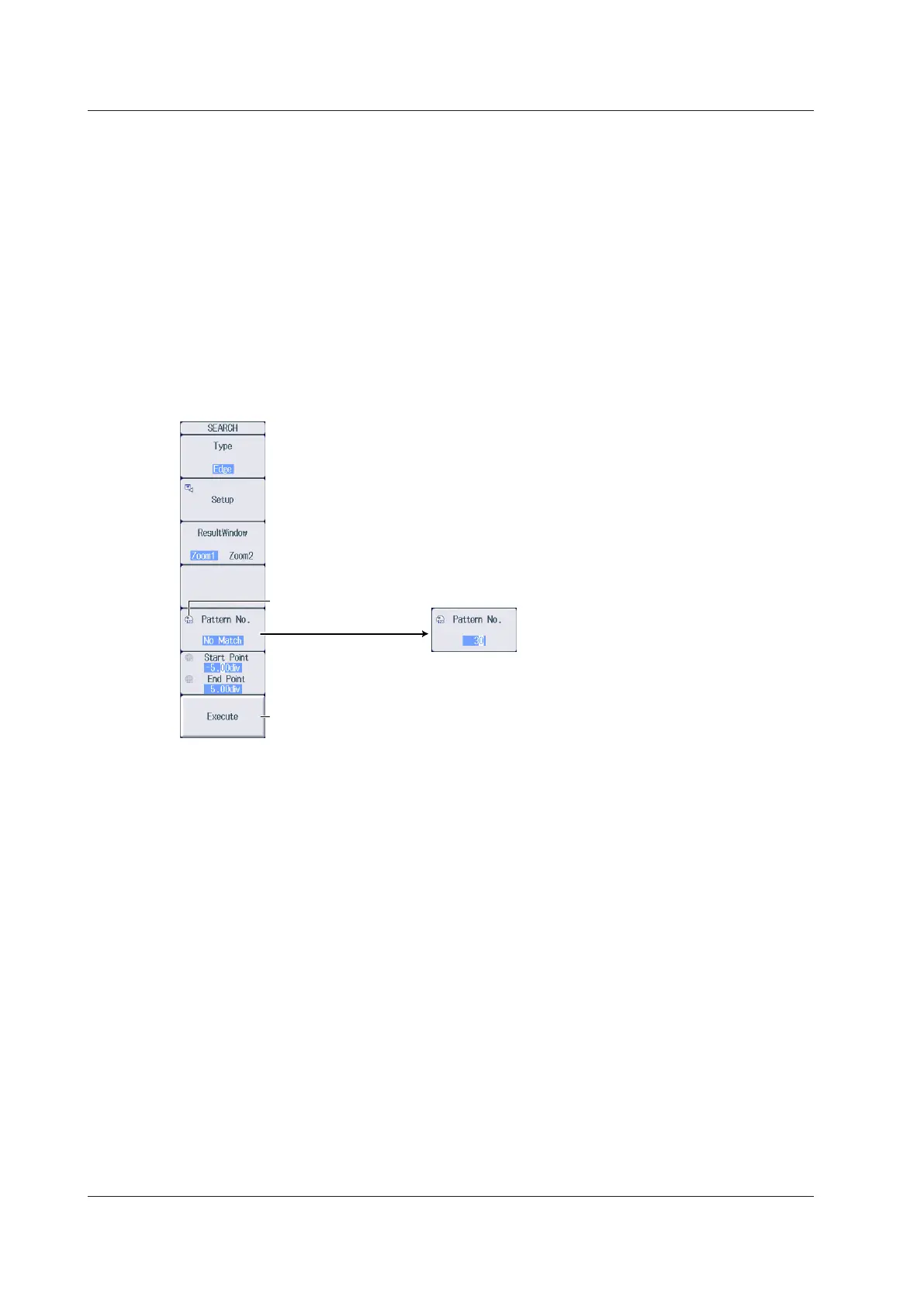

Press the Execute soft key to execute the search.
If the PX8000 finds points that match the search conditions (detected points), it shows detected point
number numbers (0, 1, 2, etc.) from the left of the waveform display in the order that the points were
detected.
Starts searching
Set the detected
point number.
This appears when a point
that matches the specified
search conditions is found.
Setting the Detected Point Number
Set the detected point number. The detected waveform appears in the zoom window with the detected
point corresponding to the specified detected point number at the center.
19.1 Searching for Edges
To Next Page
