13-5
IM PX8000-02EN
13.4 Measuring with Angle Cursors (Degree)
This section explains the following settings for measuring with angle cursors. You can use angle
cursors when the T-Y window is displayed.
• Cursor type
• Source waveform
• Moving the cursors
• Zero and end reference angles
• Jumping the cursors
• Measurement items
• Reference angle
• Windows that cursor measurements will be performed in
► Features Guide: “Angle Cursors (Degree) - T-Y waveforms”
“Record Length (Record Length)”

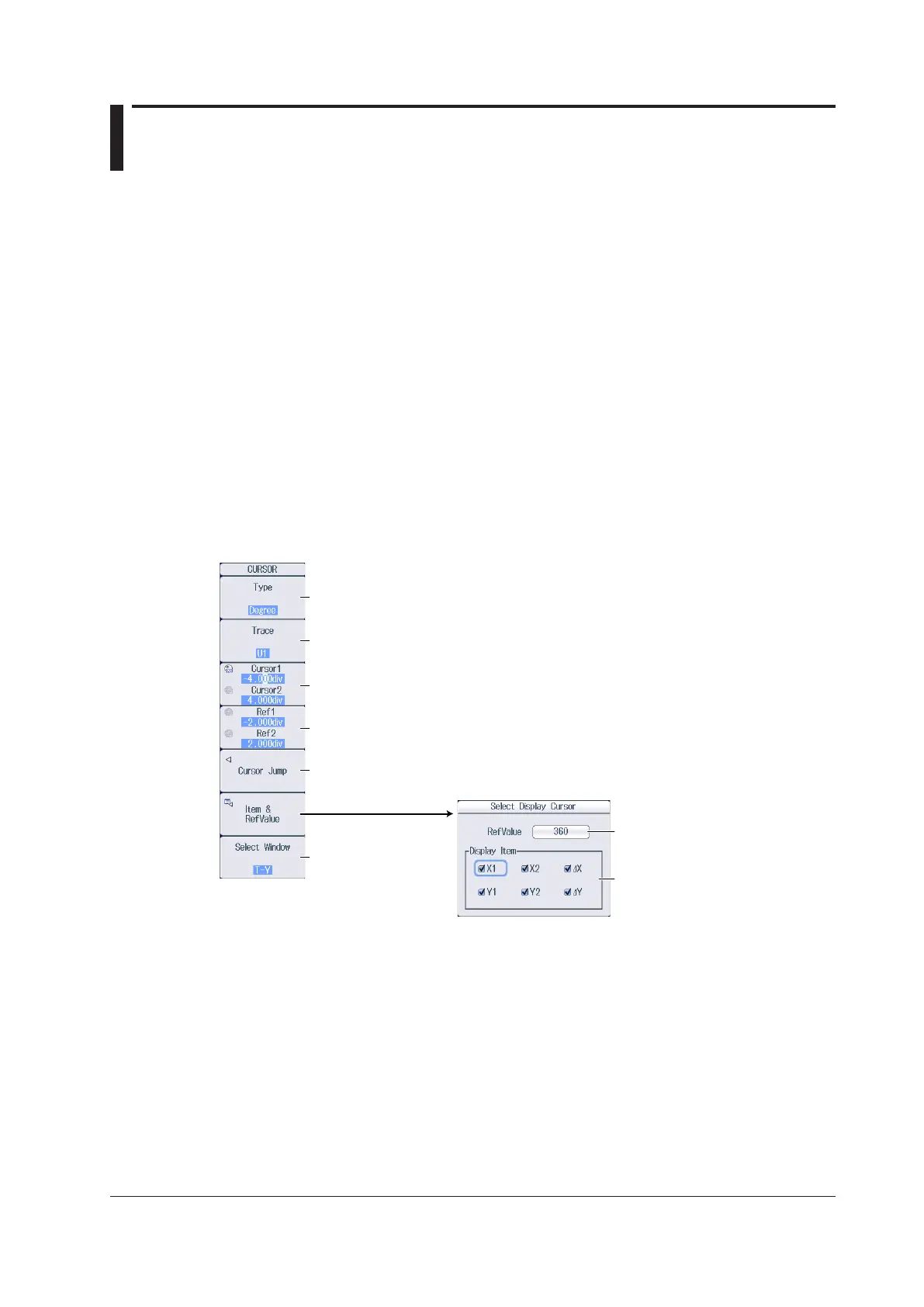

CURSOR Degree Menu
1.
Press CURSOR, the Select Window soft key, and then the T-Y soft key.
2.
Press the
Type soft key and then the Degree soft key to display the following menu.
Set measurement items.
Set the window in
which cursor
measurements will
be performed to T-Y.
Set the source waveform (All, U1-U4, I1-I4, P1-P4, AUX3-AUX8, Math1-Math8).
Set the cursor type to Degree.
Moves the specified cursor to the center of the specified zoom window
(Cursor1 to Zoom1, Cursor1 to Zoom2, Cursor2 to Zoom1, Cursor2 to Zoom2)
Select the measurement items that
you want to use.
Set the reference angle (1-720).
Move the cursors (−5div to 5div). The setting resolution varies depending on
the display record length.
Set the zero and end reference angles (−5div to 5div). The setting resolution varies
depending on the display record length.
To Next Page
