13-6
IM PX8000-02EN
13.5 Measuring with Horizontal and Vertical Cursors
(H & V)
This section explains the following settings for measuring with horizontal and vertical cursors:
• Cursor type
• Source waveform
• Moving the vertical cursors
• Moving the horizontal cursors
• Jumping the cursors
• Measurement items
• Windows that cursor measurements will be performed in
► Features Guide: “Horizontal and Vertical Cursors (H & V) - T-Y waveforms”
“Horizontal and Vertical Cursors (H & V) (X-Y)”
“Turning the X-Y Window Display On and Off (Display)”
“Record Length (Record Length)”

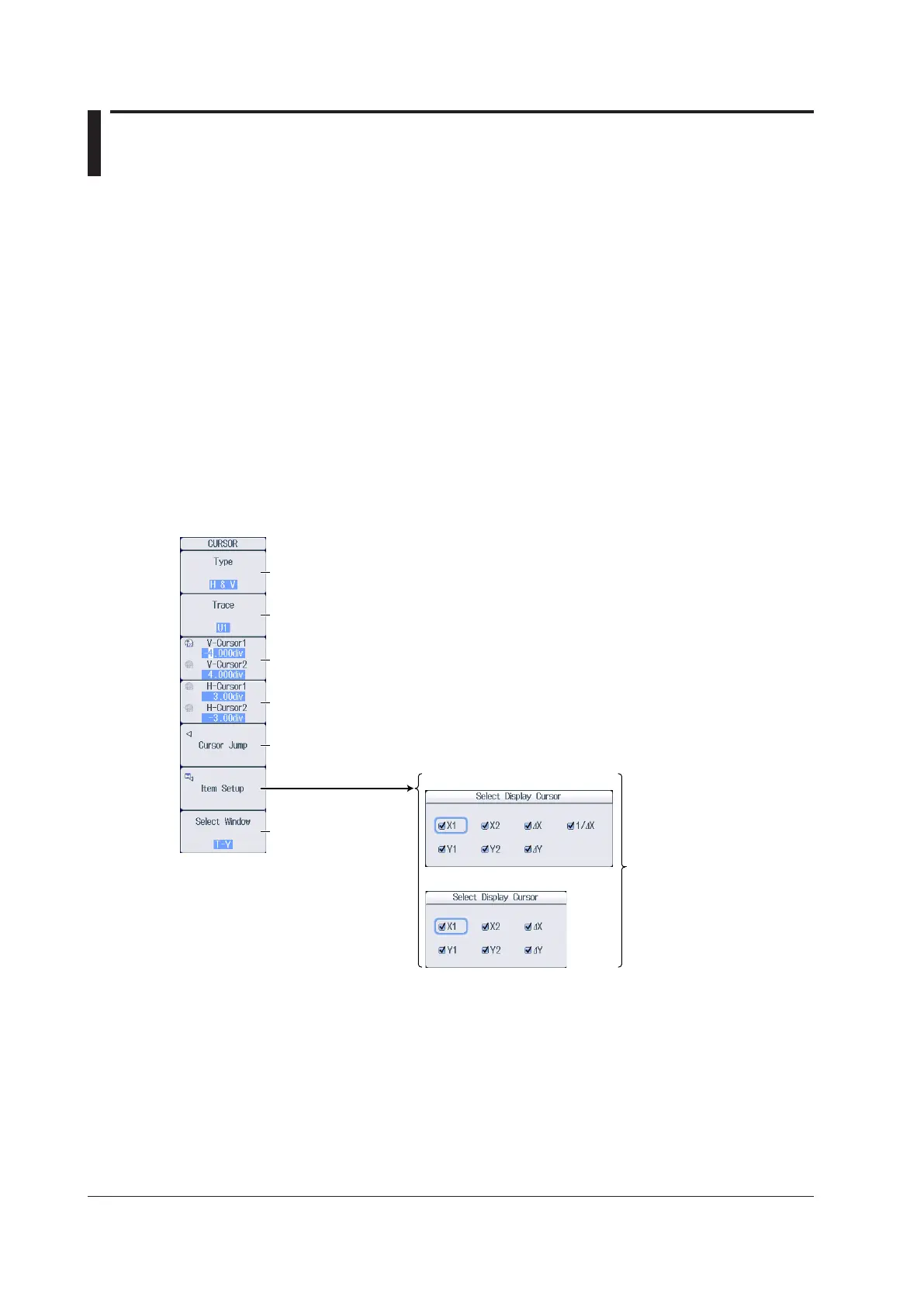

CURSOR H & V Menu
Press CURSOR, the Type soft key, and then the H & V soft key to display the following menu.
Set measurement items.
Window in which
cursor measurements
will be performed
(T-Y, X-Y)*
Set the source waveform.
Set Type to H & V.
Moves the specified cursor to the center of the specified zoom window
(Cursor1 to Zoom1, Cursor1 to Zoom2, Cursor2 to Zoom1, Cursor2 to Zoom2)
Move the vertical cursors (−5div to 5div). The setting resolution varies depending on
the display record length.
Move the horizontal cursors (−5.00div-5.00div).
When the window is T-Y
When the window is X-Y*
Select the measurement
items that you want to use.
* This is available when the X-Y window display is turned on.
Setting the Source Waveform (Trace)
The waveforms that you can select differ depending on the window that cursor measurements will be
performed in.
• T-Y: U1 to U4, I1 to I4, P1 to P4, AUX3 to AUX8, Math1 to Math8
• X-Y: XY1 to XY8
To Next Page
