3.12 Triggering on a Period Trigger (Enhanced)
This section explains the following settings for triggering on a period trigger.
• Trigger source
• State condition
• Determination mode
• Reference time
• Trigger condition
► Features Guide: “Period Trigger (Enhanced)”
ENHANCED Period Trigger Menu
Press SIMPLE/ENHANCED and then the Setting soft key to select Enhanced. The following menu
appears.
Set Setting to Enhanced.
Set the trigger hold off. ► section 3.3
Set Type to Period.
Set the state and trigger conditions.

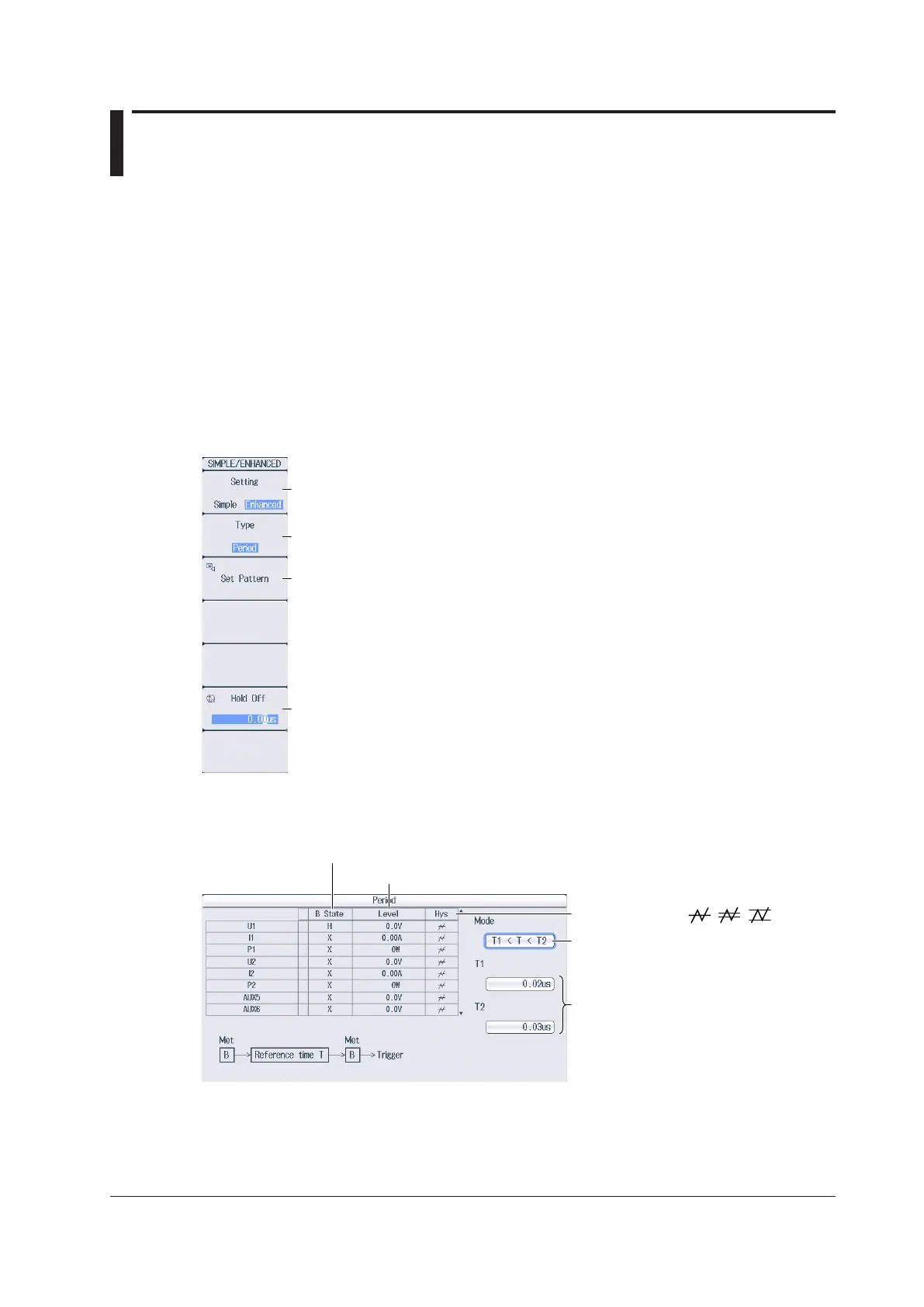

Setting the State and Trigger Conditions (Set Pattern)
Press the Set Pattern soft key to display the following menu.
Set the state condition (H, L, or X (do not use as a trigger source)).
Set the trigger level.
Set the determination mode.
Set the reference time.*
* Set T1 and T2 when the determination mode is T1 < T < T2 or T <T1, T2 < T.
Set Time when the determination mode is T < Time or T >Time.
Set the hysteresis ( , , ).
