ENHANCED AND Trigger Menu

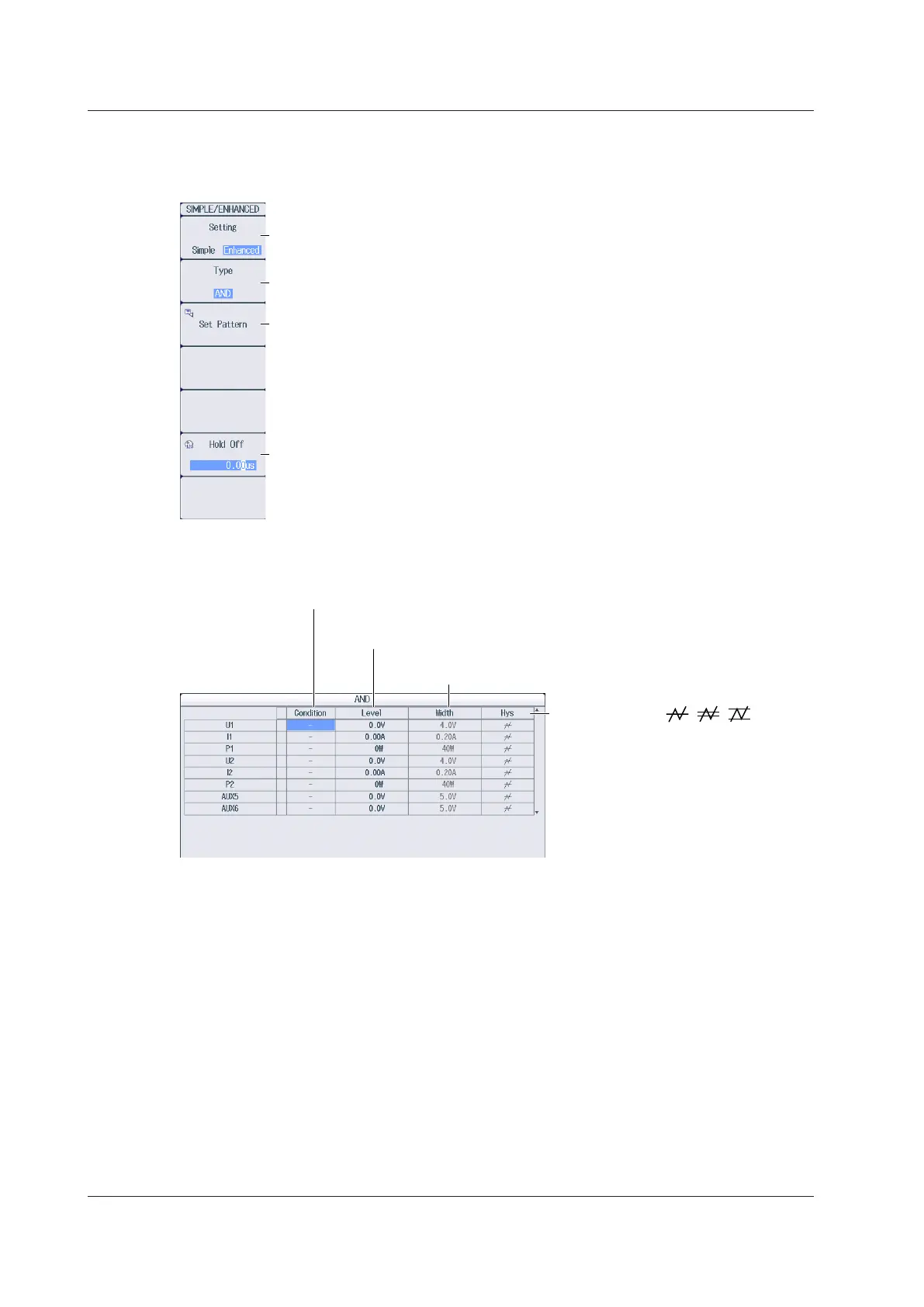

Press SIMPLE/ENHANCED and then the Setting soft key to select Enhanced. The following menu
appears.
Set Setting to Enhanced.
Set the trigger hold off. ► section 3.3
Set Type to AND.
Set the state and trigger conditions.
Setting the State and Trigger Conditions (Set Pattern)
Press the Set Pattern soft key to display the following menu.
Set the level width
(when the achievement condition is set to IN or OUT).
Set the achievement condition (H, L, IN, OUT, —).
Set the hysteresis ( , , ).
Set the trigger level (set to the center value of the level width if the
achievement condition is set to IN or OUT).
3.11 Triggering on an OR or AND Trigger (Enhanced)
