13-1
IM PX8000-02EN
13.1 Measuring with Horizontal Cursors
This section explains the following settings for measuring with horizontal cursors:
• Cursor type
• Source waveform
• Moving the cursors
• Measurement items
• Windows that cursor measurements will be performed in
► Features Guide: “Horizontal Cursors (Horizontal) - T-Y waveforms”
“Horizontal Cursors (Horizontal) (X-Y)”
“Turning the X-Y Window Display On and Off (Display)”

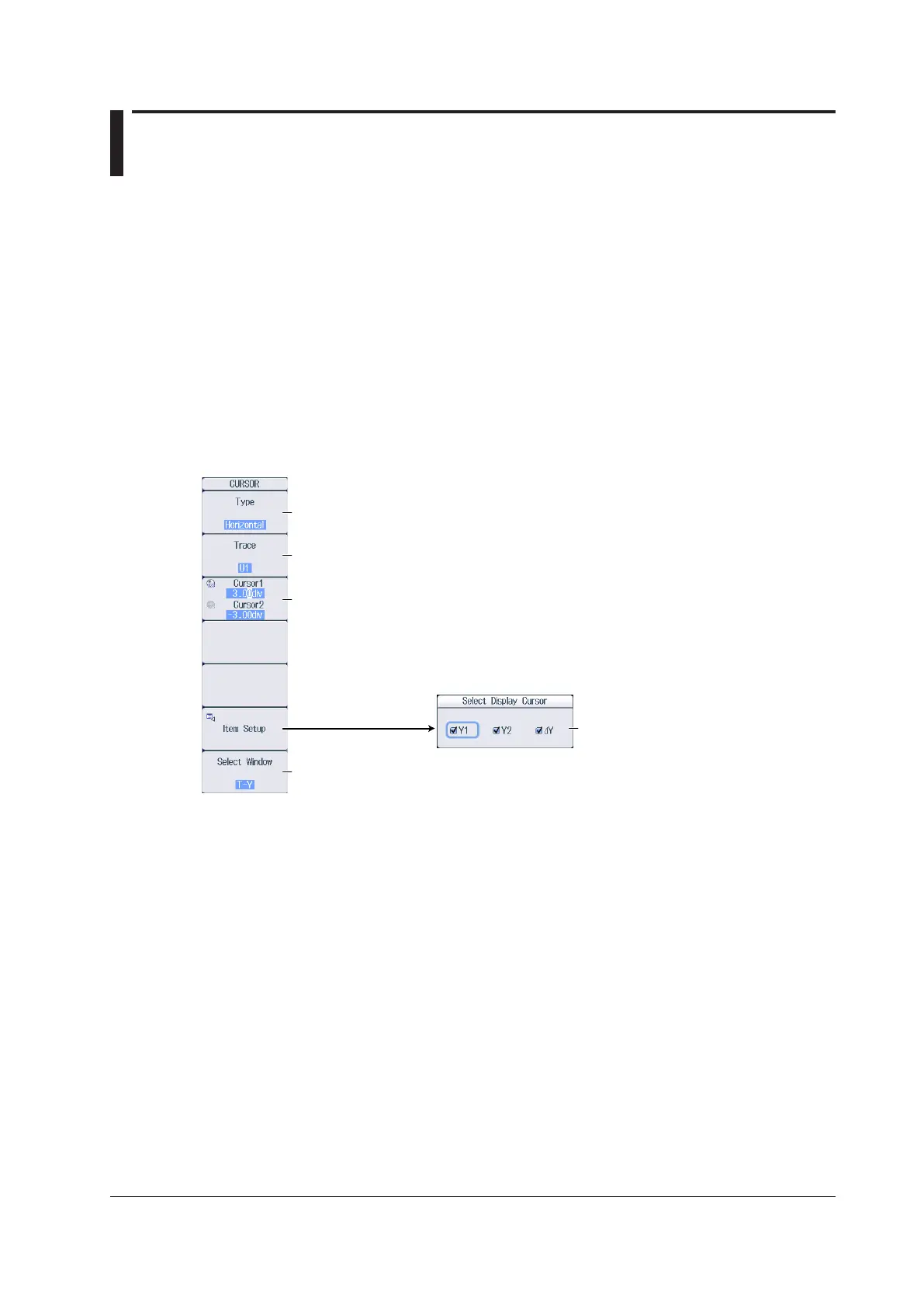

CURSOR Horizontal Menu
Press CURSOR, the Type soft key, and then the Horizontal soft key to display the following menu.
* This is available when the X-Y window display is turned on.
Set measurement items.
Set the window in which cursor measurements will be performed (T-Y, X-Y).*
Select the measurement items that
you want to use.
Move the cursors (−5.00div to 5.00div).
Set the source waveform.
Set Type to Horizontal.
Setting the Source Waveform (Trace)
The waveforms that you can select differ depending on the window that cursor measurements will be
performed in.
• T-Y: U1 to U4, I1 to I4, P1 to P4, AUX3 to AUX8, Math1 to Math8
• X-Y: XY1 to XY8
Chapter 13 Cursor Measurement
To Next Page
