6-5
IM PX8000-02EN
6.3 Changing the Displayed Items on the Matrix
Display
This section explains the following settings for the displayed items on the Matrix display.
• Item number
• Measurement function
• Order (harmonic order, /G5 option)
• Display column
Number of columns, element and wiring unit
• Resetting the displayed items
► Features Guide: “Matrix Display (Matrix)”

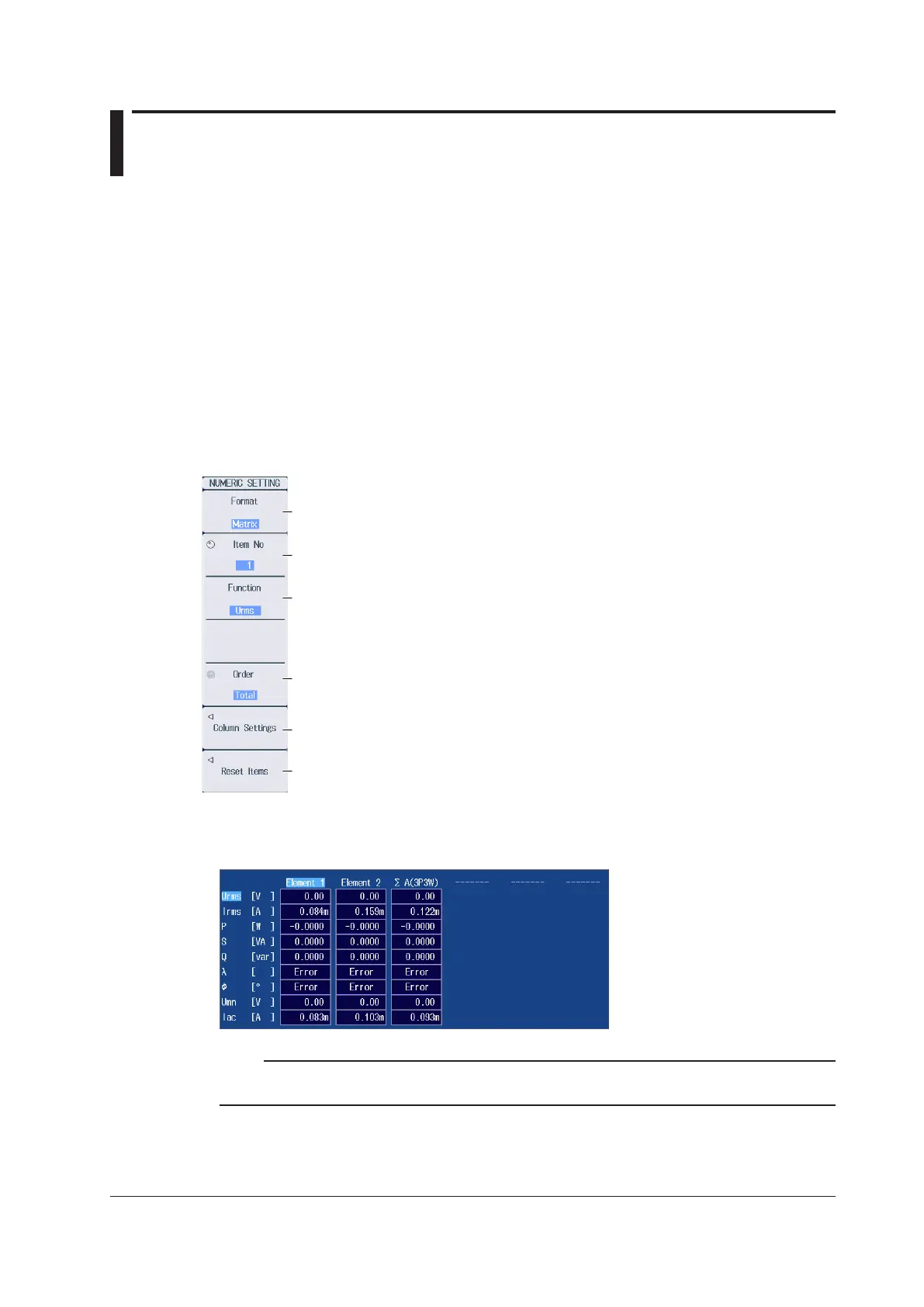

NUMERIC SETTING Menu
Use the DISPLAY MODE and DISPLAY SETTING keys as explained in section 5.1 to display the
NUMERIC SETTING menu.
Set the display format to Matrix.
Select the item number that you want to set (1-81).
Set the measurement function (None, other functions—for details on the various
measurement functions, see “Items That This Instrument Can Measure” in the
Features Guide).
Set the harmonic order (Total, 0-500).*
You can set this setting only when you have selected a measurement function that includes
a harmonic order.
* These settings are available on models with the harmonic measurement (/G5) option.
Set the resetting of displayed items.
Configure the columns to display.
Matrix Display Example
Note
If every numeric data is displayed as no data (−−−−−−−), check the referenced sections under “Note” in
section 6.1.
To Next Page
