Chapter 11 X-Y Display
11.1 Displaying X-Y Waveforms
This section explains the following settings for displaying X-Y waveforms.
• Turning the X-Y window display on and off
• Turning the X-Y waveform on and off and X-axis and Y-axis source waveforms
• Start and end points
• Turning the trace-clear-on-start on and off
• Main window’s display ratio
• Window layout
• Turning combine display on and off
• Interpolation method
• The number of data points that are used to display waveforms
► Features Guide: “Displaying X-Y Waveforms”
X-Y Menu
1.

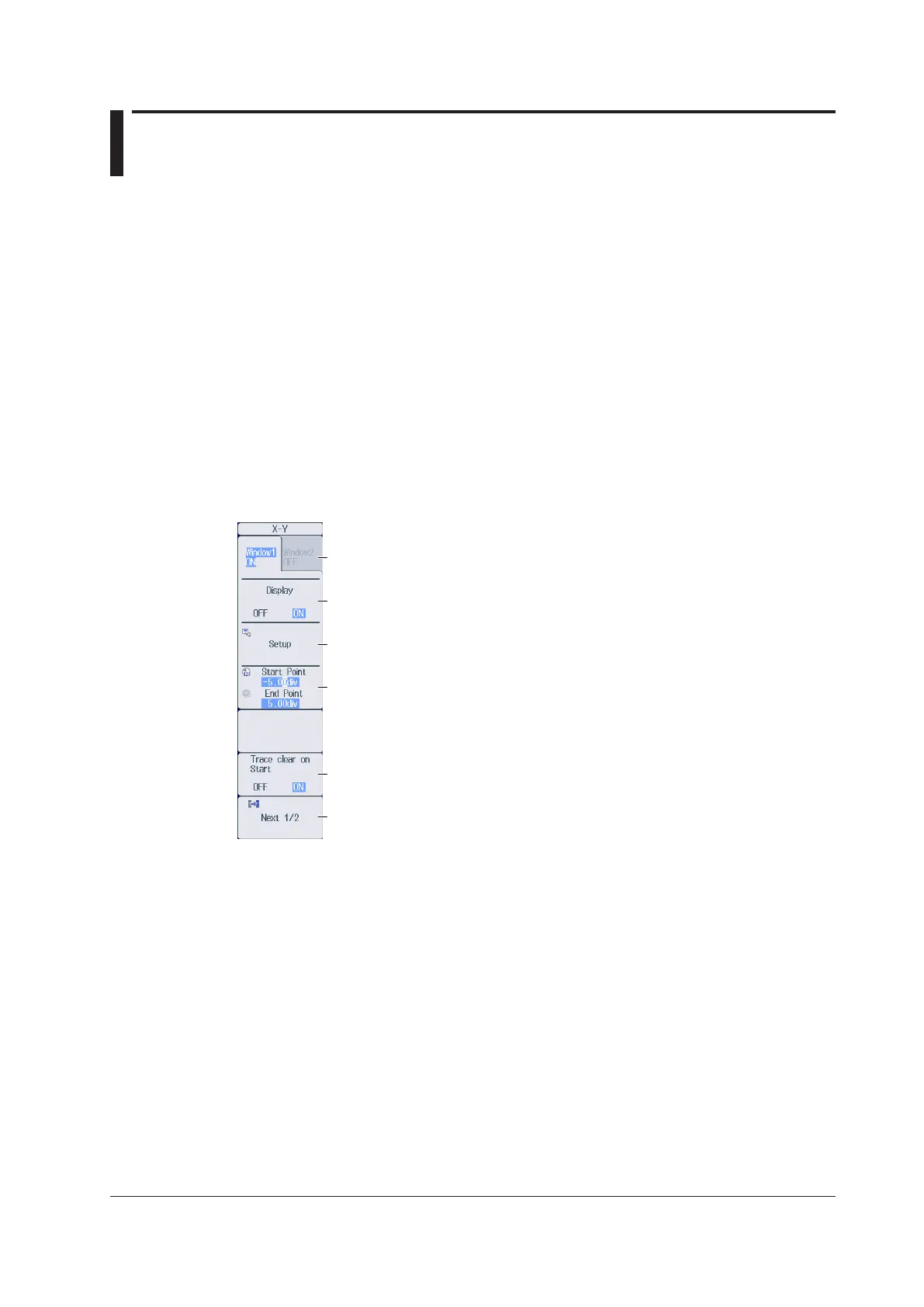

Press SHIFT+SETTING (X-Y) to display the following menu.
Select whether to set X-Y Window 1 or Window 2.
Turn the X-Y waveform on and off and set X-axis and Y-axis source waveforms.
Turns the X-Y window display on and off
Turns the trace-clear-on-start on and off
Displays the second page of the menu
Set the start and end points (−5.00div to 5.00div).
The end point must be greater than or equal to the start point.
To Next Page
