13.3 Measuring with Marker Cursors (Marker)
This section explains the following settings for measuring with marker cursors.
• Cursor type
• Source waveform
• Moving the cursors
• Jumping the cursors
• Marker display format
• Measurement items
• Windows that cursor measurements will be performed in
► Features Guide: “Marker Cursors (Marker) - T-Y waveforms”
“Marker Cursors (Marker) (X-Y)”
“Marker Cursors (Marker) (FFT)”
“Turning the X-Y Window Display On and Off (Display)”
“Turning FFT On and Off (Display)”
“Record Length (Record Length)”
“Start Point and Number of FFT Points (Start Point and FFT Points)”

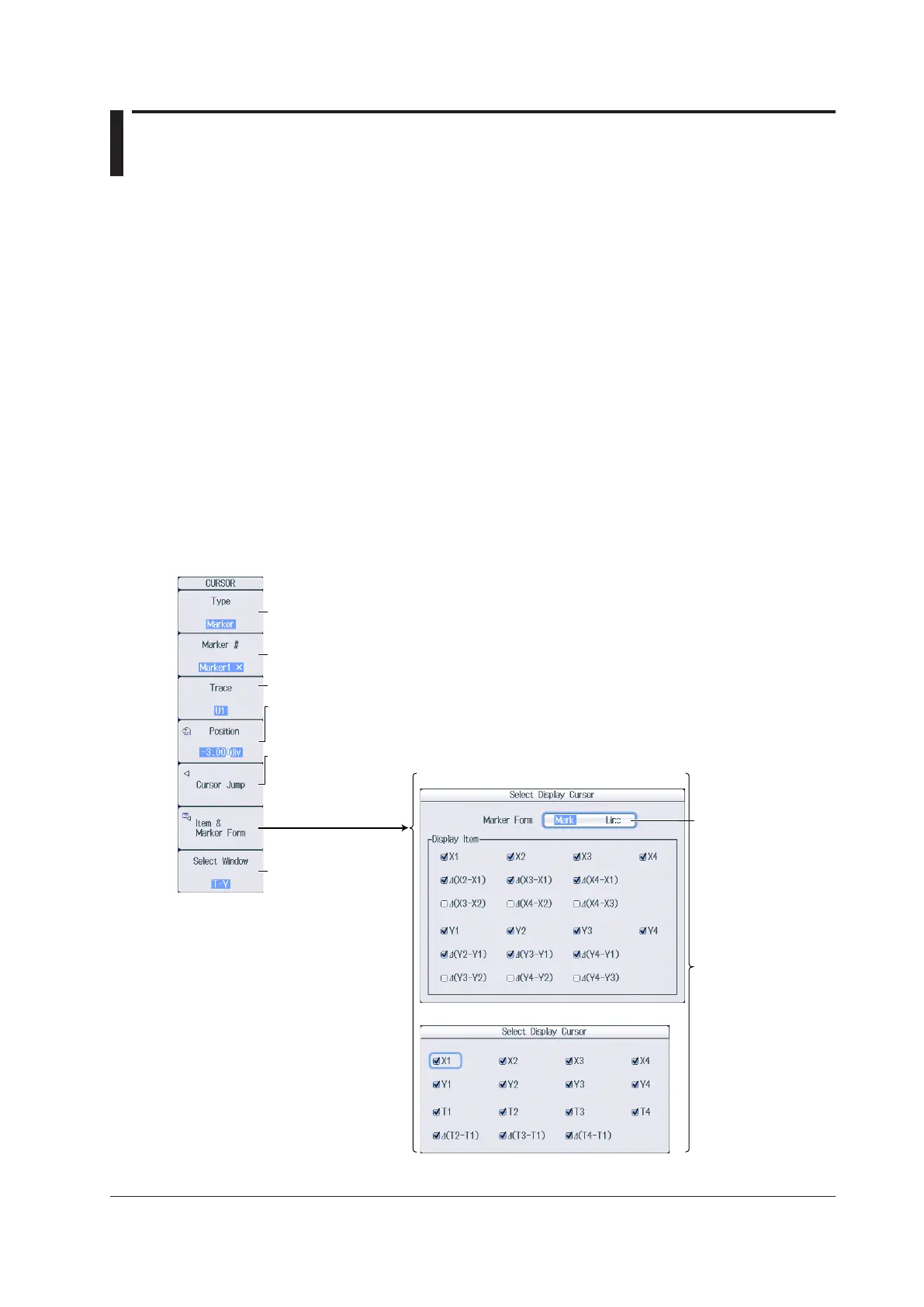

CURSOR Marker Menu
Press CURSOR, the Type soft key, and then the Marker soft key to display the following menu.
* This is available when the X-Y window display or FFT window display is turned on.
Set measurement items.
Set the window in
which cursor
measurements will
be performed (T-Y,
X-Y, FFT).*
Move the cursors (−5div to 5div).
The setting resolution varies depending on the display record length. The setting resolution when
the window is FFT varies depending on the number of FFT points.
Select the marker cursor to use (Marker1 X, Marker2 +, Marker3 Y, Marker4 Y).
Set the source waveform.
Set the cursor type to Marker.
Moves the specified cursor to the center of the specified zoom window (to Zoom1, to Zoom2)
When the Source Window is T-Y or FFT*
When the window is X-Y*
Select the
measurement items
that you want to use.
Set the marker
display format
(Mark, Line).
