6.4 Changing the All Items Display
This section explains the following All Items display settings.
• Order (harmonic order, /G5 option)
• Switching the Page
► Features Guide: “All Items Display (All Items)”
NUMERIC SETTING Menu
Use the DISPLAY MODE and DISPLAY SETTING keys as explained in section 5.1 to display the
NUMERIC SETTING menu.
Set the display format to All Items.
Set the harmonic order (Total, 0-500).*
You can set this setting only when you have selected the page of a measurement function
that includes a harmonic order.
* These settings are available on models with the harmonic measurement (/G5) option.
To the next page
To the previous page
Switching the Page

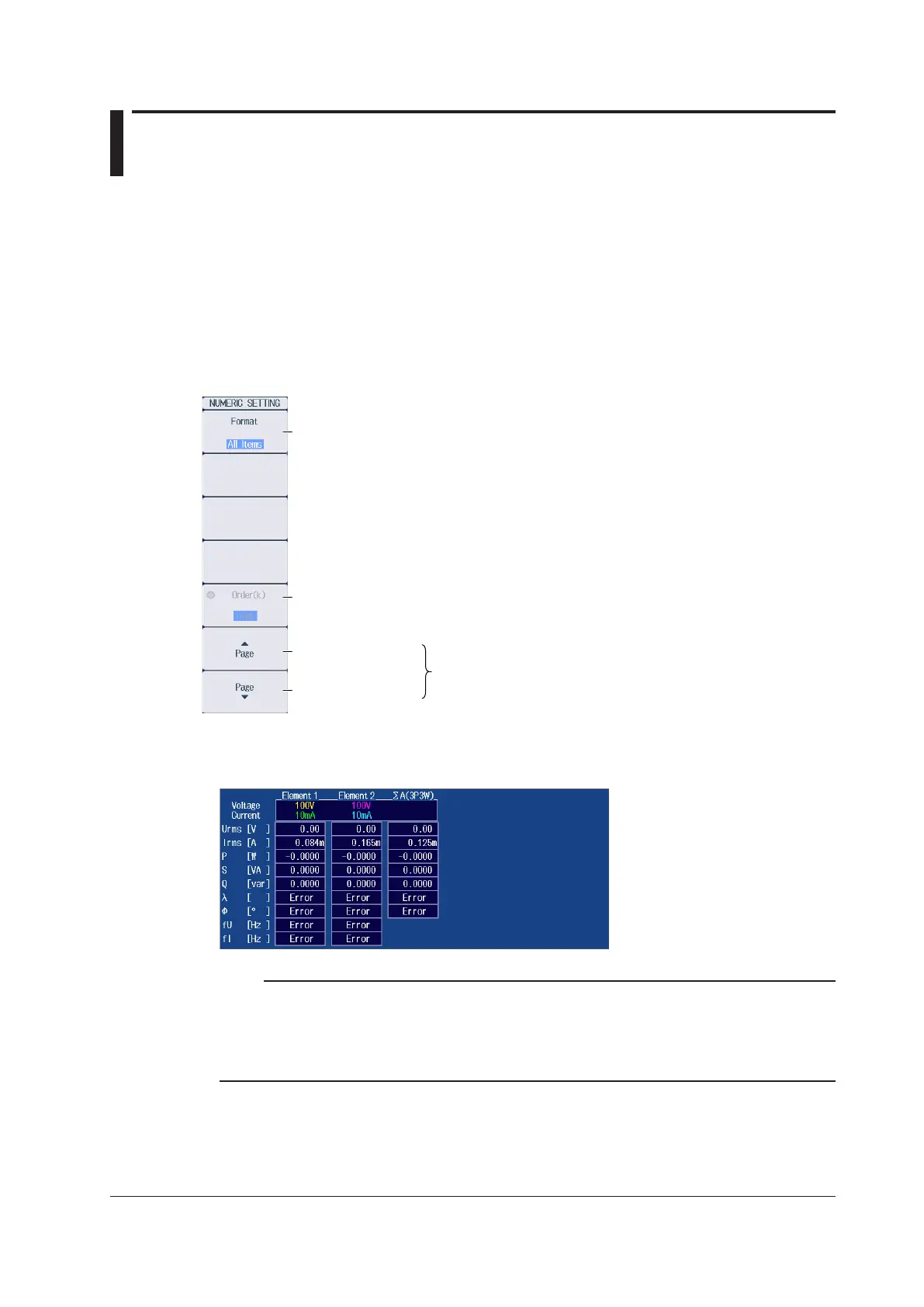

All Items Display example
Note
• On the All Items display, you cannot select individual display items and change their measurement
function, element, or wiring unit. If you switch to the Matrix display, you can change the measurement
functions, elements, and wiring units using the displayed table (see section 6.3).
• If every numeric data is displayed as no data (−−−−−−−), check the referenced sections under “Note” in
section 6.1.
To Next Page
