3-2
IM PX8000-02EN
3.2 Setting the Trigger Position and Trigger Delay
This section explains the following settings for updating the displayed waveform.
• Trigger position
• Trigger delay
► Features Guide: “Trigger Position (Position)”
“Trigger Delay (Delay)”
POSITION/DELAY Menu

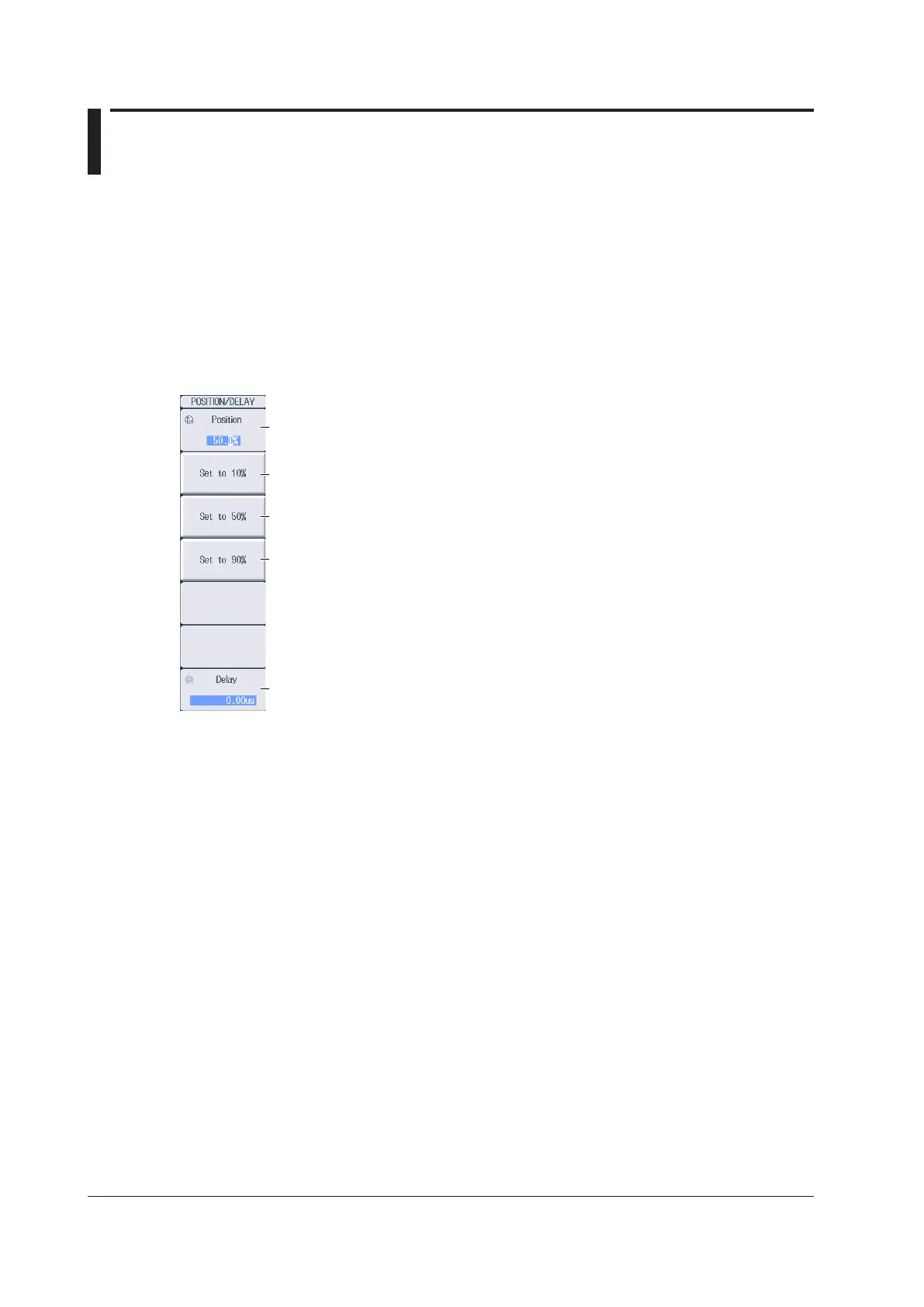

Press POSITION/DELAY to display the following menu.
Set the trigger position.
Set the trigger delay.
Set the trigger position to 10%.
Set the trigger position to 50%.
Set the trigger position to 90%.
