7.7 Setting Harmonic Measurement Conditions
This section explains the following settings for harmonic measurement conditions. These settings are
available on models with the harmonic measurement (/G5) option.
• Turning harmonic measurement on and off
• PLL source
• Measured harmonic order
• Distortion factor equation
• Harmonic measurement start point
► Features Guide: “Harmonic Measurement Conditions (Harmonics; option)”
NUMERIC Menu

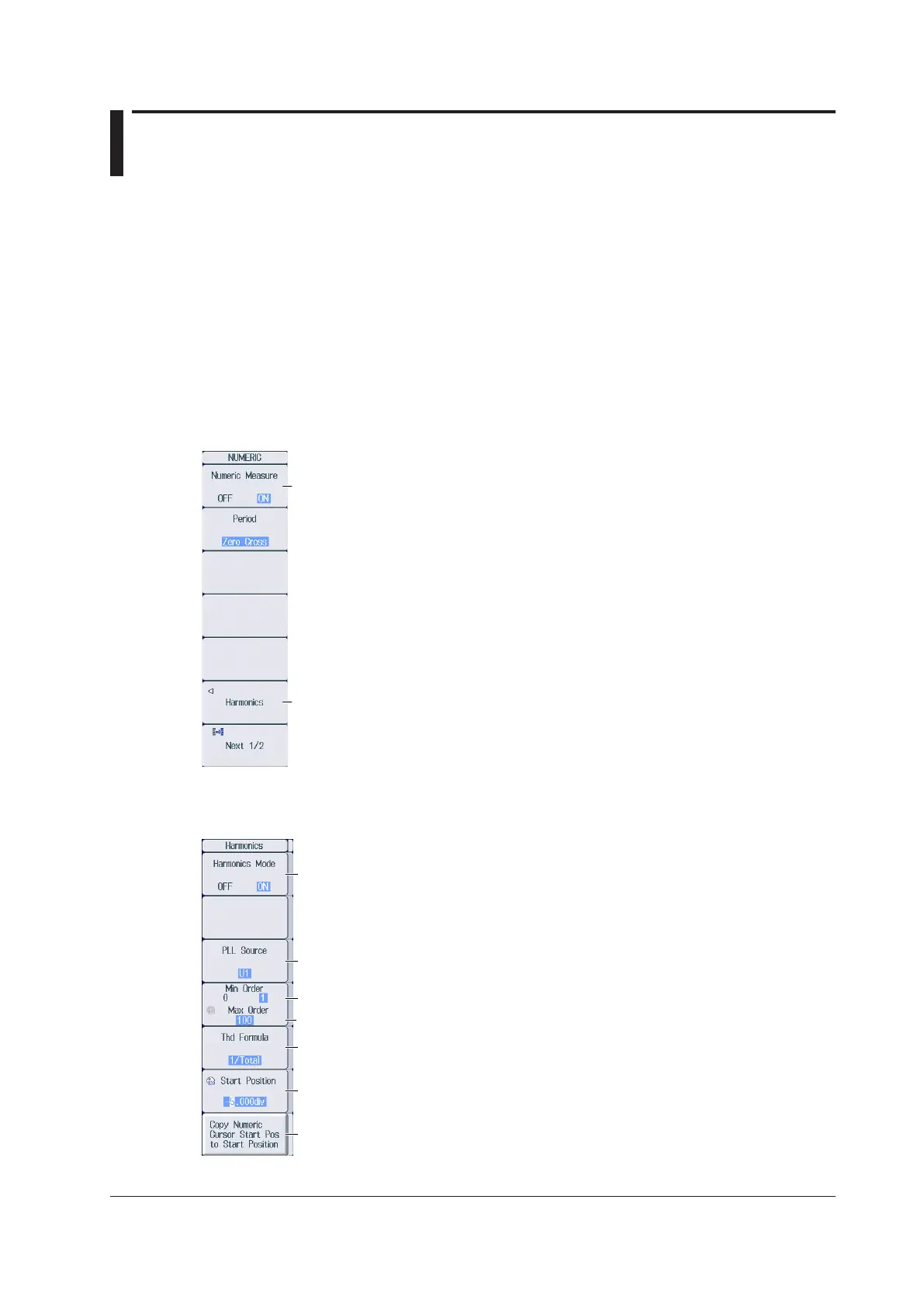

Press NUMERIC to display the following menu.
Set Numeric Measure to ON.
Set harmonic measurement conditions.
Harmonics Menu
Press the Harmonics soft key to display the following menu.
Turns harmonic measurement on and off
Set the PLL source (U1-U4, I1-I4, External).
Sets the start point (Start Position) of the numeric cursor computation
range to the start point (Start Position) of harmonic measurement
Set the start point of harmonic measurement (−5.000div to 5.000div).
Set the minimum value of the measured harmonic order (0, 1).
Set the maximum value of the measured harmonic order (1-500).
Set the distortion factor equation (1/Total, 1/Fundamental).
To Next Page
