3.4 Triggering on an Edge Trigger (Simple)
This section explains the following settings for triggering on the edges of a signal applied to an
installed module.
• Trigger source
• Trigger slope
• Trigger level
• Trigger hysteresis
► Features Guide: “Simple Trigger (Simple),” “Trigger Source (Source),”
“Trigger Slope (Slope),” “Trigger Level (Level),” and
“Trigger Hysteresis (Hysteresis)”

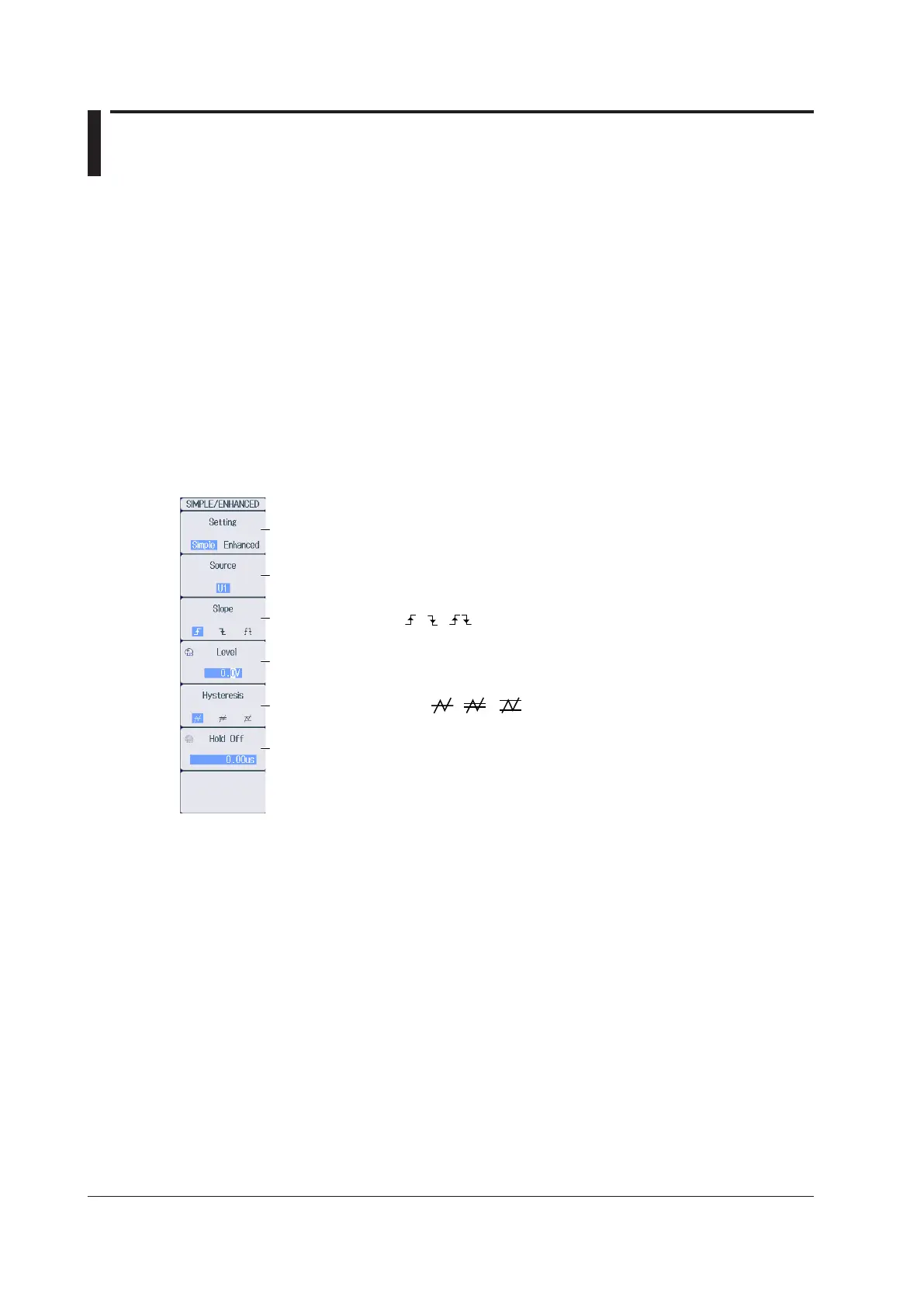

SIMPLE Menu
Press SIMPLE/ENHANCED and then the Setting soft key to select Simple. The following menu
appears.
Set Setting to Simple.
Set the trigger hold off. ► section 3.3
Set the trigger source
(U1-U4, I1-I4, P1-P4, AUX3-AUX8).
Set the trigger slope ( , , ).
Set the trigger level.
Set the trigger hysteresis ( , , ).
3.4 Set anchor at “edge
trigger.”
