15-3
IM PX8000-02EN
15.3 Shifting the Phase
This section explains the following settings for shifting the phase:
• Computation
Function (Shift(S1)), computation source waveform, shift range, unit, label, turning the waveform
display on and off
• Scaling
• Computation start and end points
► Features Guide: “Phase Shift (Shift (S1))”
“Record Length (Record Length)”

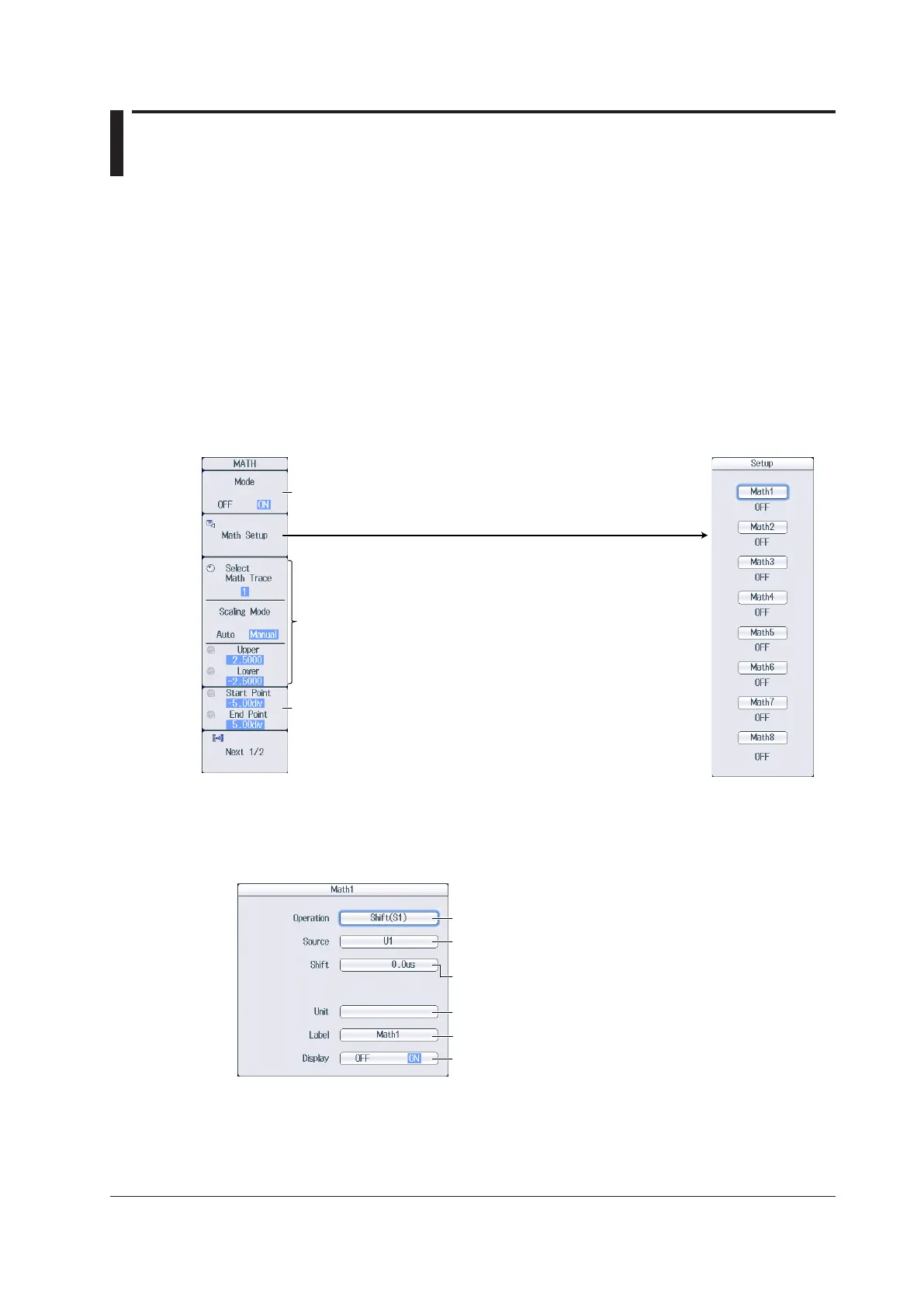

MATH Menu
Press MATH to display the following menu.
Set the computation.
Set the computation start and end points. ► section 15.1
Set Mode to ON.
Set the scaling. ► section 15.1
Configuring Computations (Math Setup)
1.
Press the Math Setup soft key.
2.
Press a soft key from Math1 to Math8 to display the following screen.
Select function Shift(S1).
Select the computation source waveform
(U1-U4, I1-I4, P1-P4, AUX3-AUX8, Math1-Math7).
Set the shift range
(within ±(record length/2) of the computation source waveform).
Turns the waveform display on and off
Set the label.
Set the unit.
To Next Page
