YOKOGAWA PX8000 User Manual

17-1
IM PX8000-02EN
17.1 Performing GO/NO-GO Determination with
Waveform Zones
This section explains the following settings for performing GO/NO-GO determination with waveform
zones:
• GO/NO-GO determination mode
• Editing the waveform zone
• Judgment condition
• Action
• Determination period
► Features Guide: “Waveform Zone (Wave Zone)”

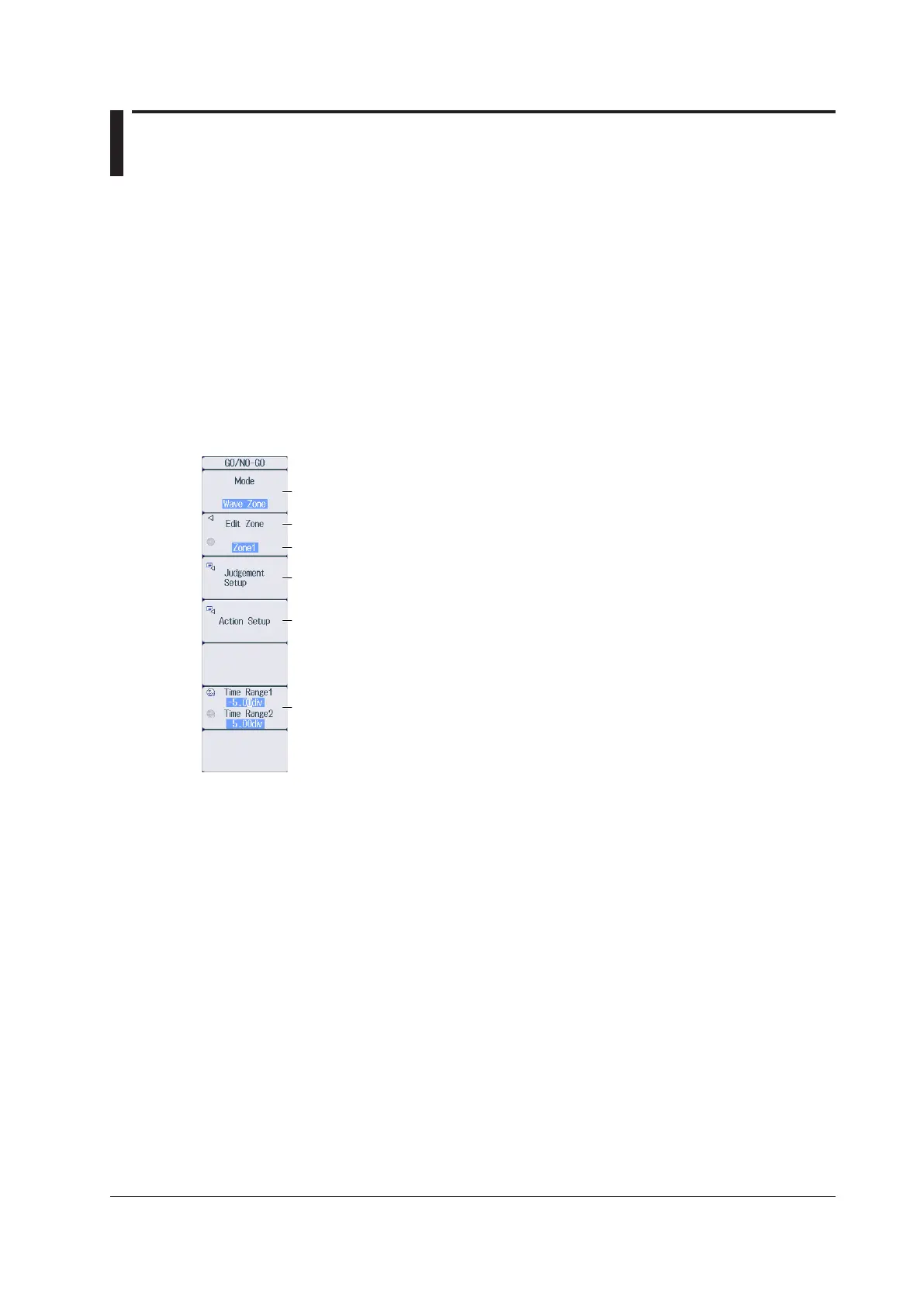

GO/NO-GO Menu
Press SHIFT+MEASURE (GO/NO-GO) to display the following menu.
Set the judgment conditions.
Set the actions.
Set the determination period (−5div to 5div). The setting resolution varies depending on
the display record length.
Time period 2 (Time Range2) must be greater than or equal to Time period 1 (Time Range1).
Set the GO/NO-GO determination mode to Wave Zone.
Edit the waveform zone.
Select the number of the zone to edit.
Chapter 17 GO/NO-GO Determination
