6-1
IM PX8000-02EN
6.1 Switching the Displayed Page
This section explains how to switch the displayed numeric data page.
► Features Guide: “Numeric Data Display Settings”
“Switching the Displayed Page”

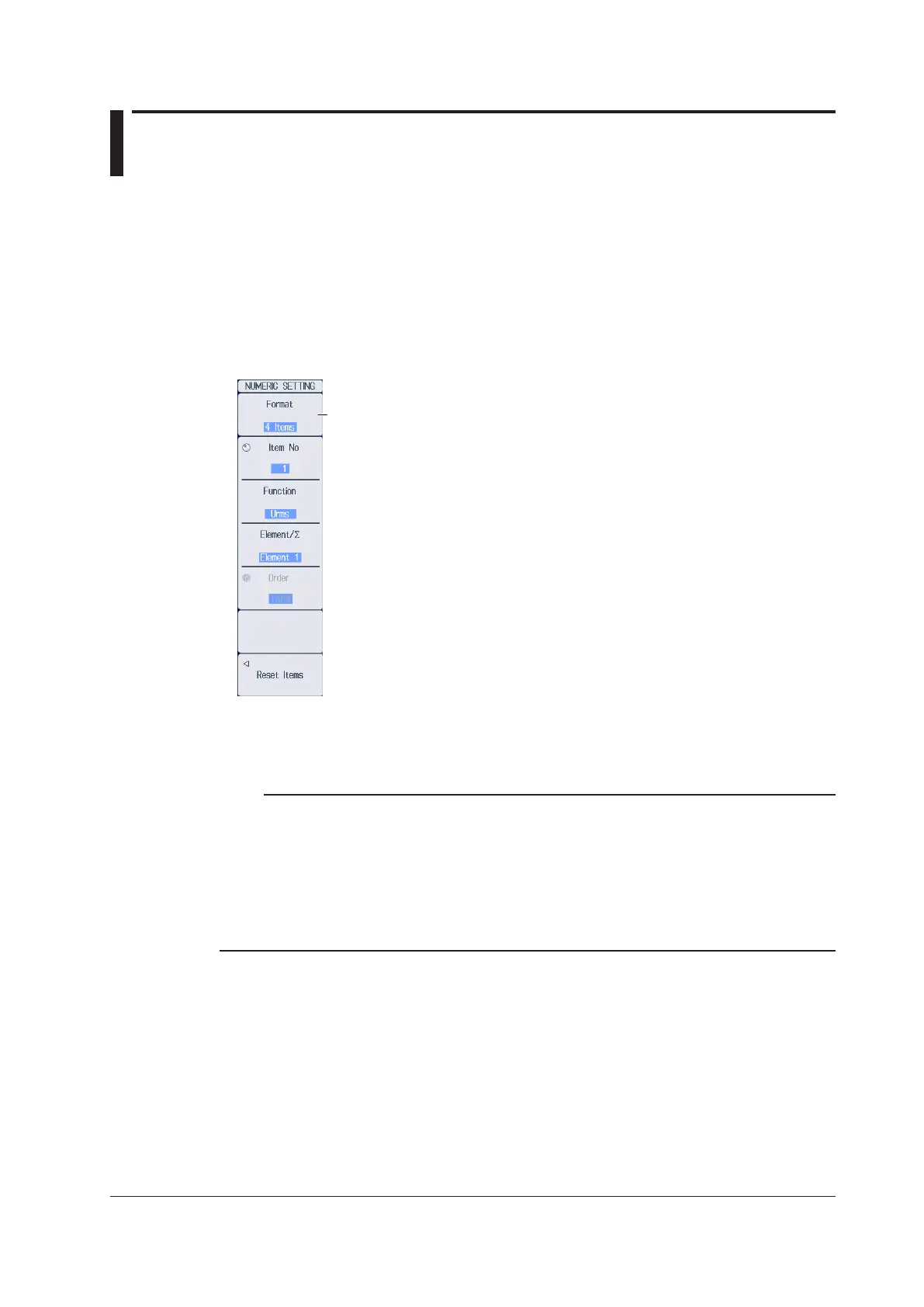

NUMERIC SETTING menu
1.
Use the
DISPLAY MODE and DISPLAY SETTING keys as explained in section 5.1 to display
the NUMERIC SETTING menu.
* These settings are available on models with the harmonic measurement (/G5) option.
Set the display format
(4 Items, 8 Items, 16 Items, Matrix, All Items, Hrm Single List,*
Hrm Dual List,* Custom).
2.
Set the display format, and then press
ESC to clear the menu.
Note
If every numeric data is displayed as no data (−−−−−−−), check the following items.
• Is waveform acquisition running? ► section 4.2
• Is the numeric measurement setting set to ON? ► section 7.1
• Is the trigger set properly?
Trigger mode ► section 3.1
Trigger position and trigger delay ► section 3.2
Trigger hold off ► section 3.3
Trigger conditions according to trigger type ► sections 3.4 to 3.15
Chapter 6 Numeric Data Display
To Next Page
