6-10
IM PX8000-02EN
6.6 Setting the Custom Display
This section explains the following Custom display settings.
• Loading display configuration files
• Loading background files
• Display configuration
Total items, items per page, custom items (item number, measurement function, element and wiring
unit, harmonic order, display position, font size, font color), saving custom display configuration files
► Features Guide: “Custom Display (Custom)”

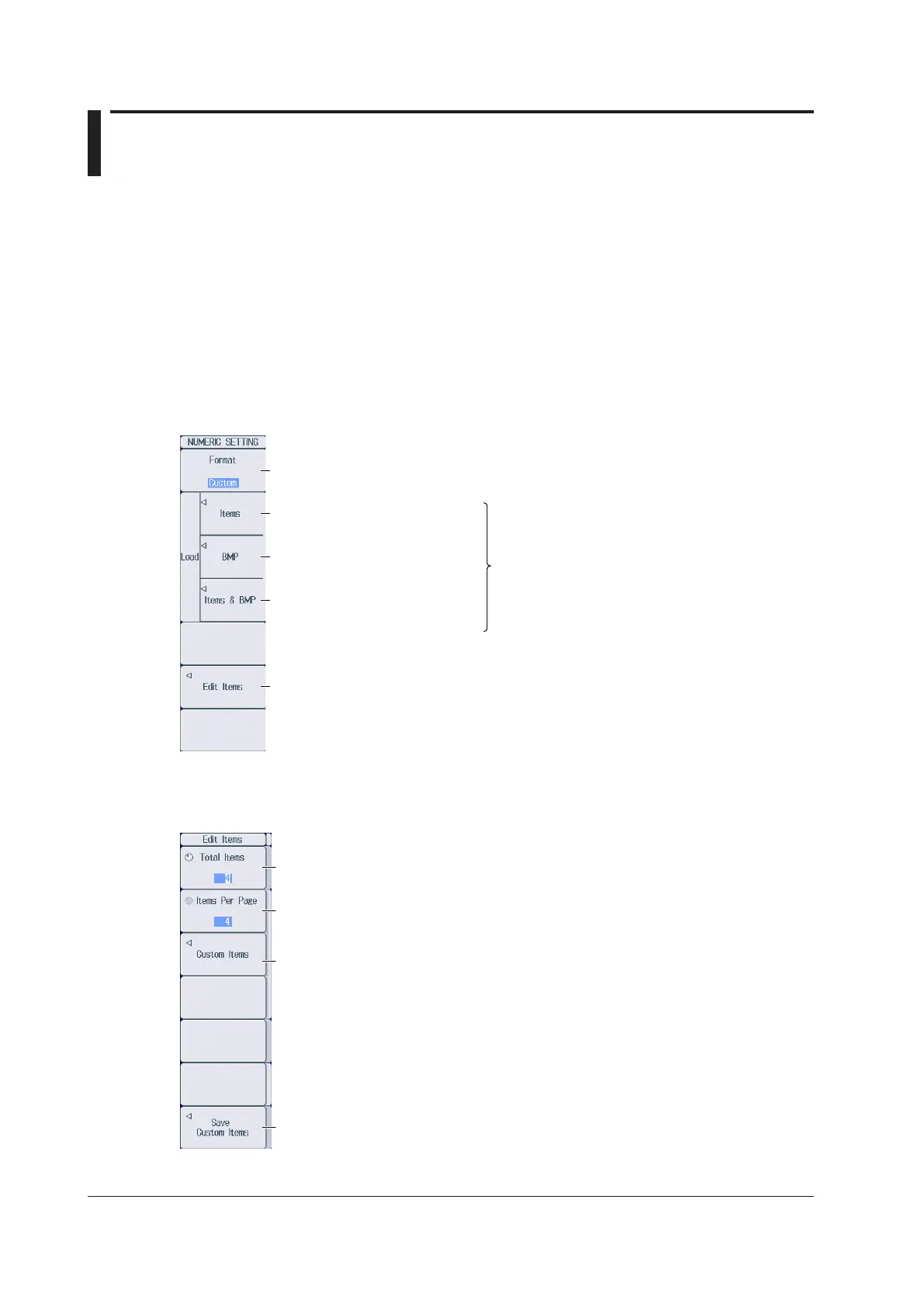

NUMERIC SETTING Menu
Use the DISPLAY MODE and DISPLAY SETTING keys as explained in section 5.1 to display the
NUMERIC SETTING menu.
Set the display format to Custom.
Load a display configuration file.
Load a background file.
Load display configuration and
background files at the same time.
► page 6-12
Configure the display configuration.
You can load files for the custom display.
Display configuration files: TXT format
Background file: BMP format
• You can use the “Edit Items” menu described
below to change the display configuration that
you have loaded.
• To load both a display configuration file and
background file at the same time, load the
display configuration file.
Setting the Display Configuration (Edit Items)
1.
Press the Edit Items soft key to display the following menu.
Set the total number of items (1-192).
Set the number of items per page (1-192).
• Any changes made to Total Items will change the Items Per Page setting, and vice-versa.
• For details on how to switch pages, see section 6.1.
Customize display items.
Save the display configuration file.
To Next Page
