1.3 Setting the Motor Mode
This section explains the following motor mode settings.
• Turning motor mode on and off
• Function name
• Scaling
• Unit
• Synchronization source
► Features Guide: “Turning Motor Mode On and Off (Motor Mode)”
“Function Name (Name)”
“Scaling (Scaling)”
“Unit (Unit)”
“Synchronization Source (Sync Source), AUX Module”
Check that an AUX module is installed in slot 3, 5, or 7.

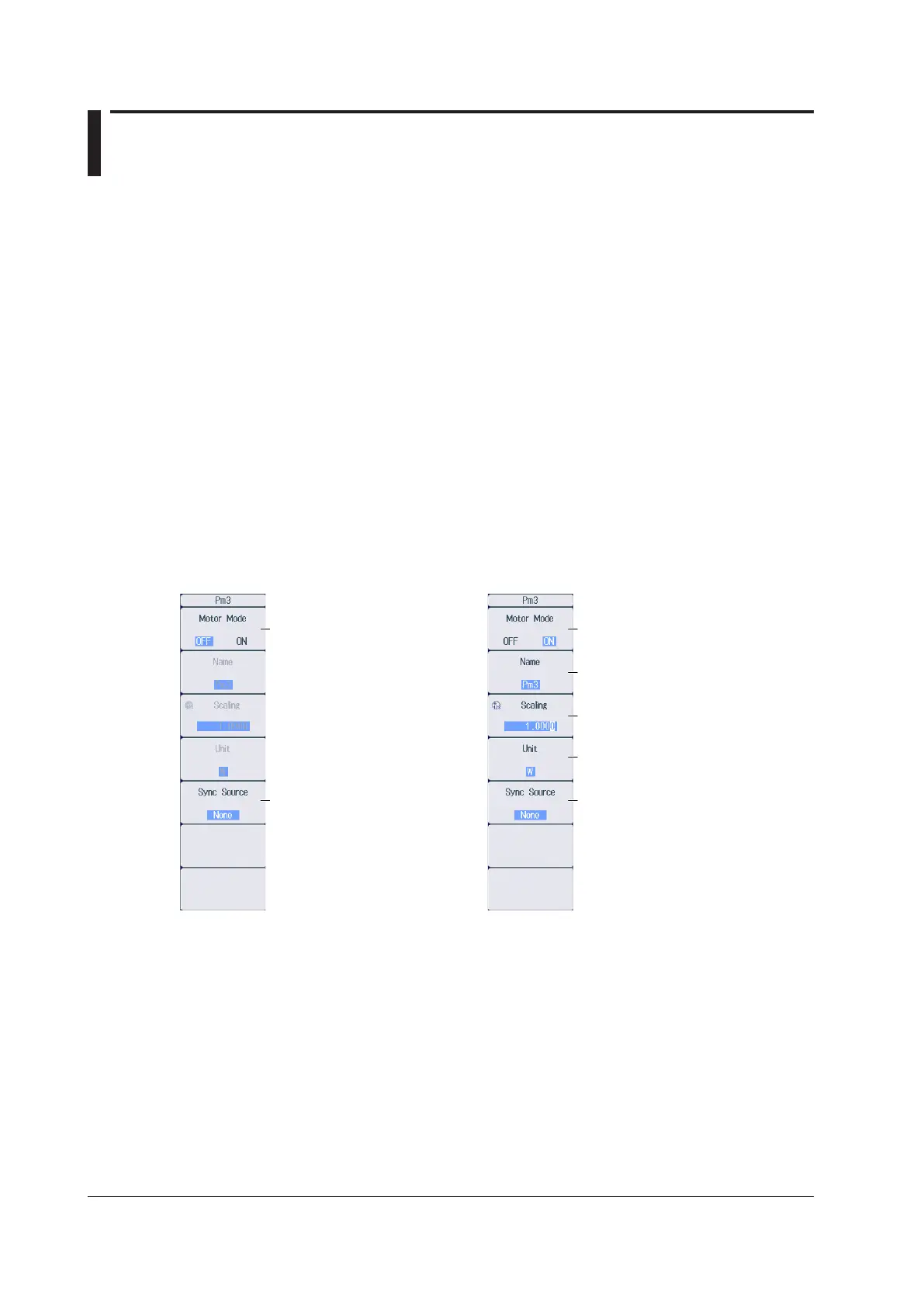

Pm Menu
Of the ELEM 2 to ELEM 4 keys, press the key corresponding to the slot in which the AUX module is
installed. The following menu appears.
Set Motor Mode to OFF. Set Motor Mode to ON.
Set the function name.
Set the scaling.
Set the unit.
When motor mode is off When motor mode is on
Set the synchronization source
(U1-U4, I1-I4, External, None).
Set the synchronization source
(U1-U4, I1-I4, External, None).
