11-2
IM PX8000-02EN

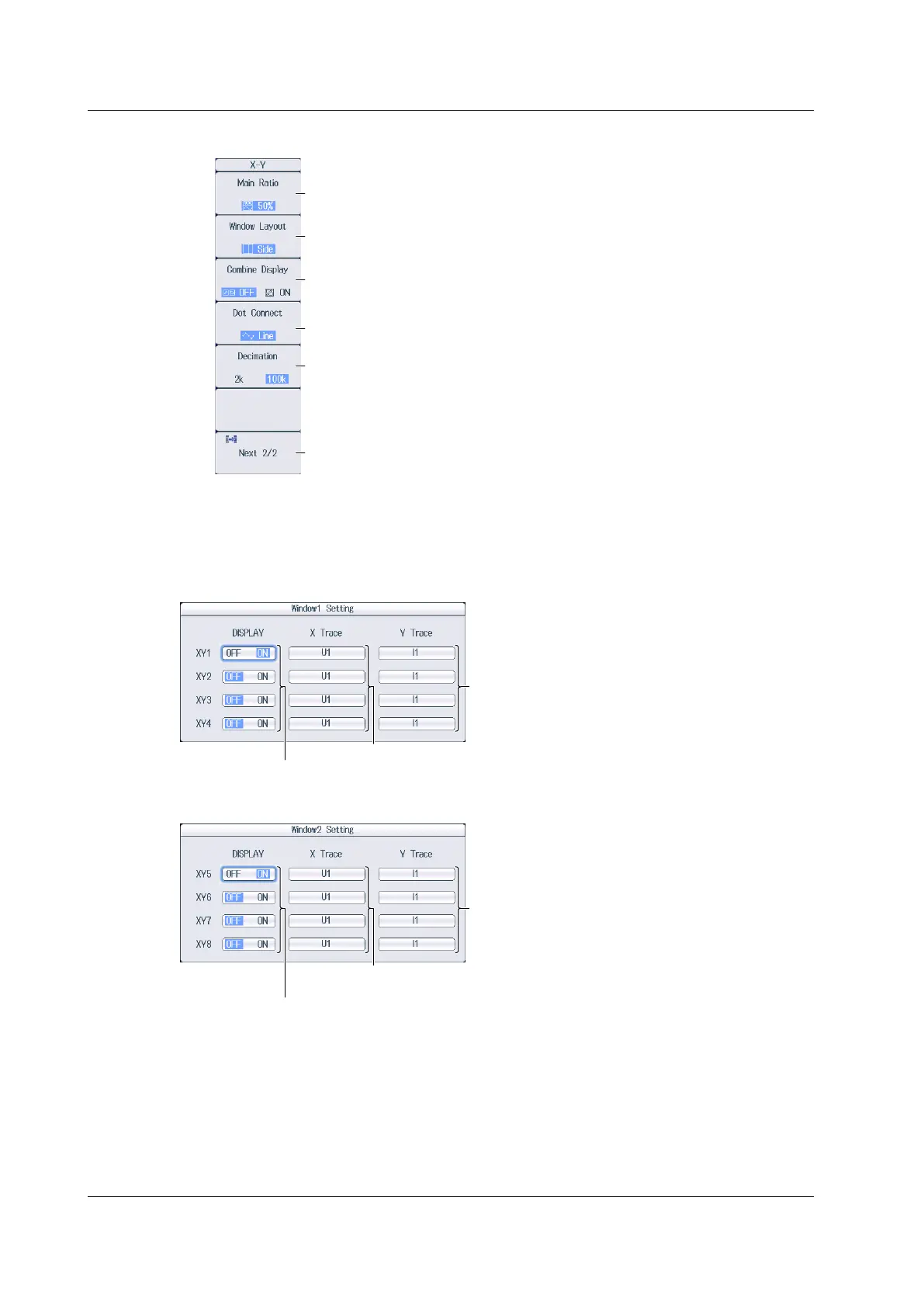

11.1 Displaying X-Y Waveforms
2.
Press the Next 1/2 soft key to display the 2/2 menu.
Set the main window’s display ratio (50%, 0%).
Turns combine display on and off
Select whether to combine the displays of the X-Y windows (Window1 and Window2)
(ON, OFF).
Set the window layout (Side, Vertical).
Displays the first page of the menu
Set the display interpolation (OFF, Line).
Set the number of data points that are used to display waveforms (2k, 100k).
Turning the X-Y Waveform On and Off and Setting X-Axis and
Y-Axis Source Waveforms
Press the Setup soft key to display the following screen.
Turns the XY waveform display on and off
Set the source waveform for the X axis.
Set the source waveform
for the Y axis.
Turns the XY waveform
Set the source waveform
for the X axis.
Set the source
waveform for the Y axis.
When X-Y Window 1 is selected,
Set the X-Y waveforms of XY1 to XY4.
When X-Y Window 2 is selected,
Set the X-Y waveforms of XY5 to XY8.
