Setting the Source Waveform and Configuring the Measurement
Items (Measure Setup)
1.
Press the Measure Setup soft key to display the following menu.
Set the source waveform
(U1-U4, I1-I4, P1-P4, AUX3-AUX8, Math1-Math8, XY1-XY8).
Set the delay.
Parameter details
Clears all measurement items
Copies measurement items to
the specified channels
Set measurement items.
Setting Measurement Items (Item)
2.

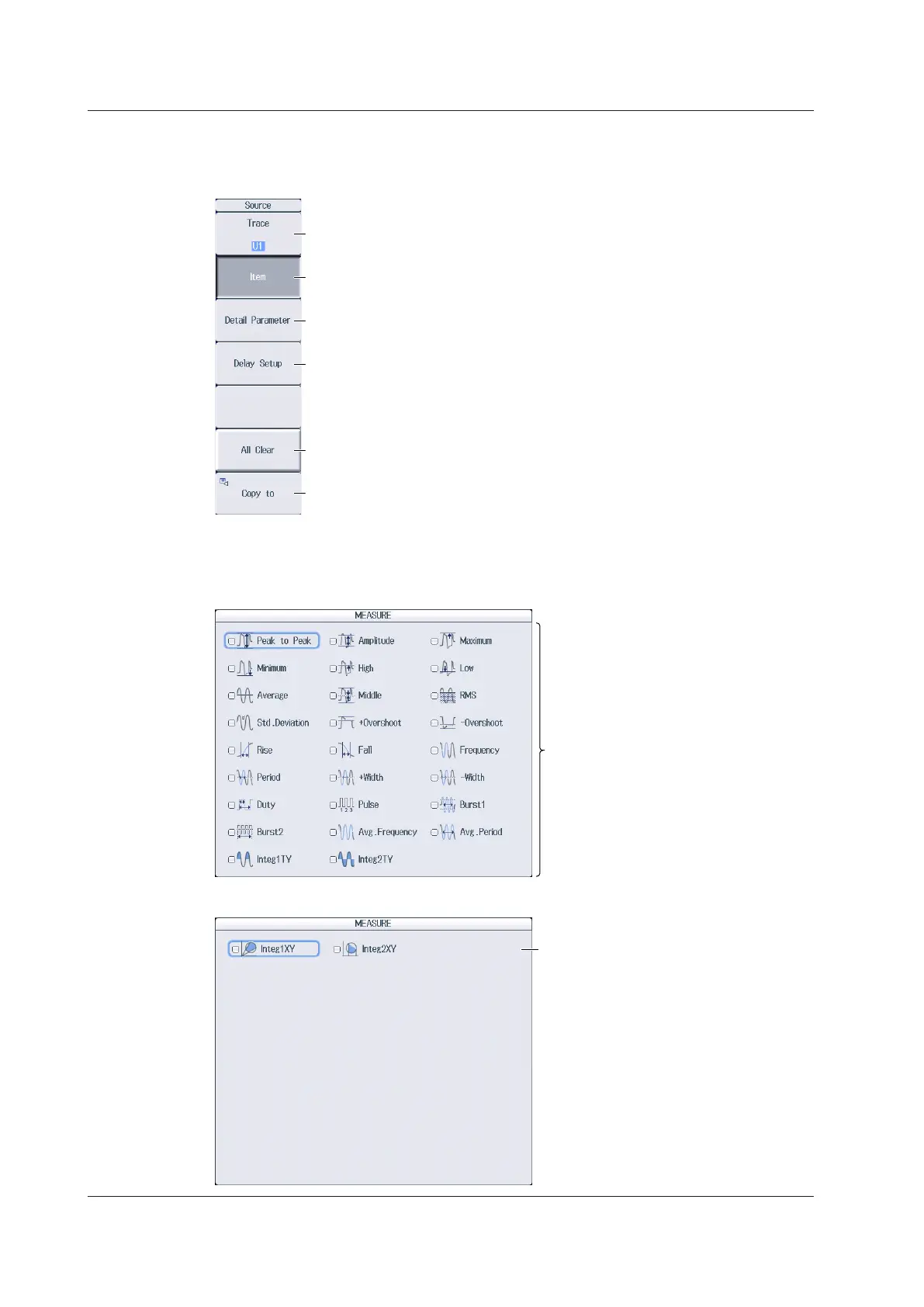

Press the Item soft key to display the following screen.
• When the Source Waveform Is U1 to U4, I1 to I4, P1 to P4, AUX3 to AUX8, Math1 to Math8
Select the measurement items
that you want to use.
• When the Source Waveform Is XY1 to XY8
Select the measurement items
that you want to use.
14.1 Automatically Measuring Waveform Parameters
